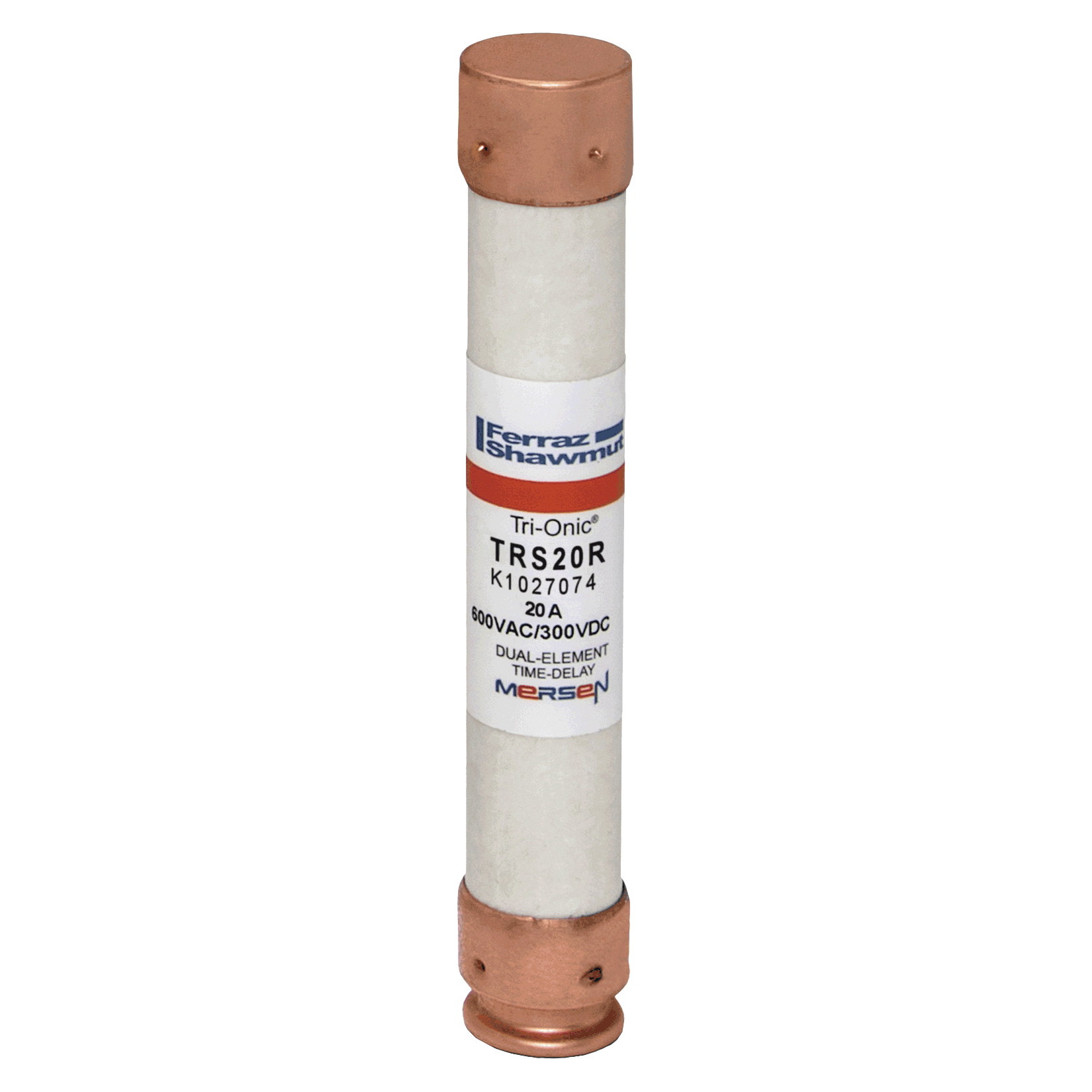

Product image for MERSEN TRS20R FUSE HRCI-R 20A 600V TIME DELAY 600V CLASS RK5 TRIONIC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN TRS20R FUSE HRCI-R 20A 600V TIME DELAY 600V CLASS RK5 TRIONIC

Manufacturer: Ferraz Shawmut Mersen | Catalog # TRS20R | Electrozad South Part # 24058
$9.08 /ea
ea
Log in or register to view your price, purchase history, and more!
86 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
20 A
Applications
For Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001748845
Class
RK-5
GTiN
30782001748846
Weight
0.137 lb

Dimensions

Diameter
0.81 in
Length
5 in
