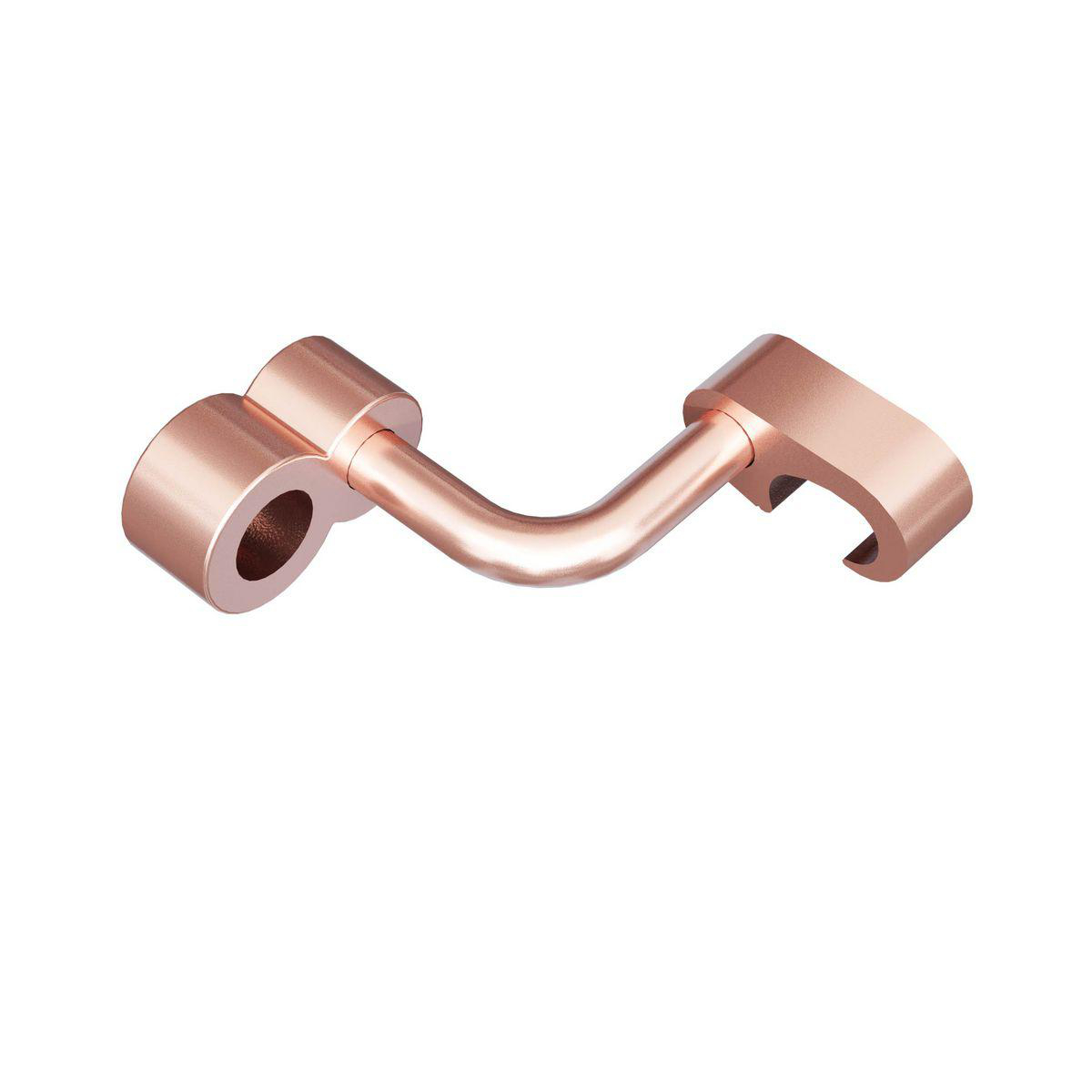

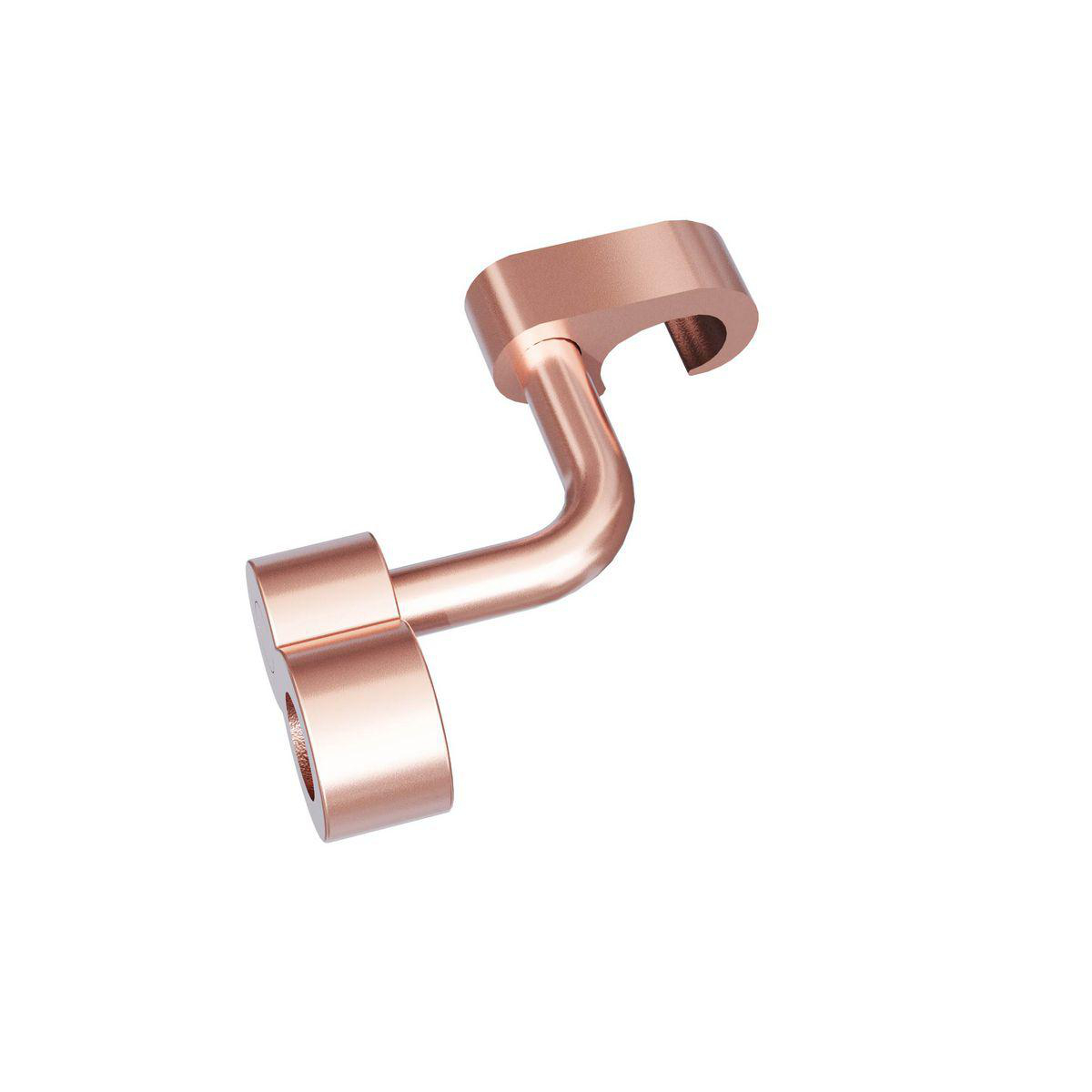

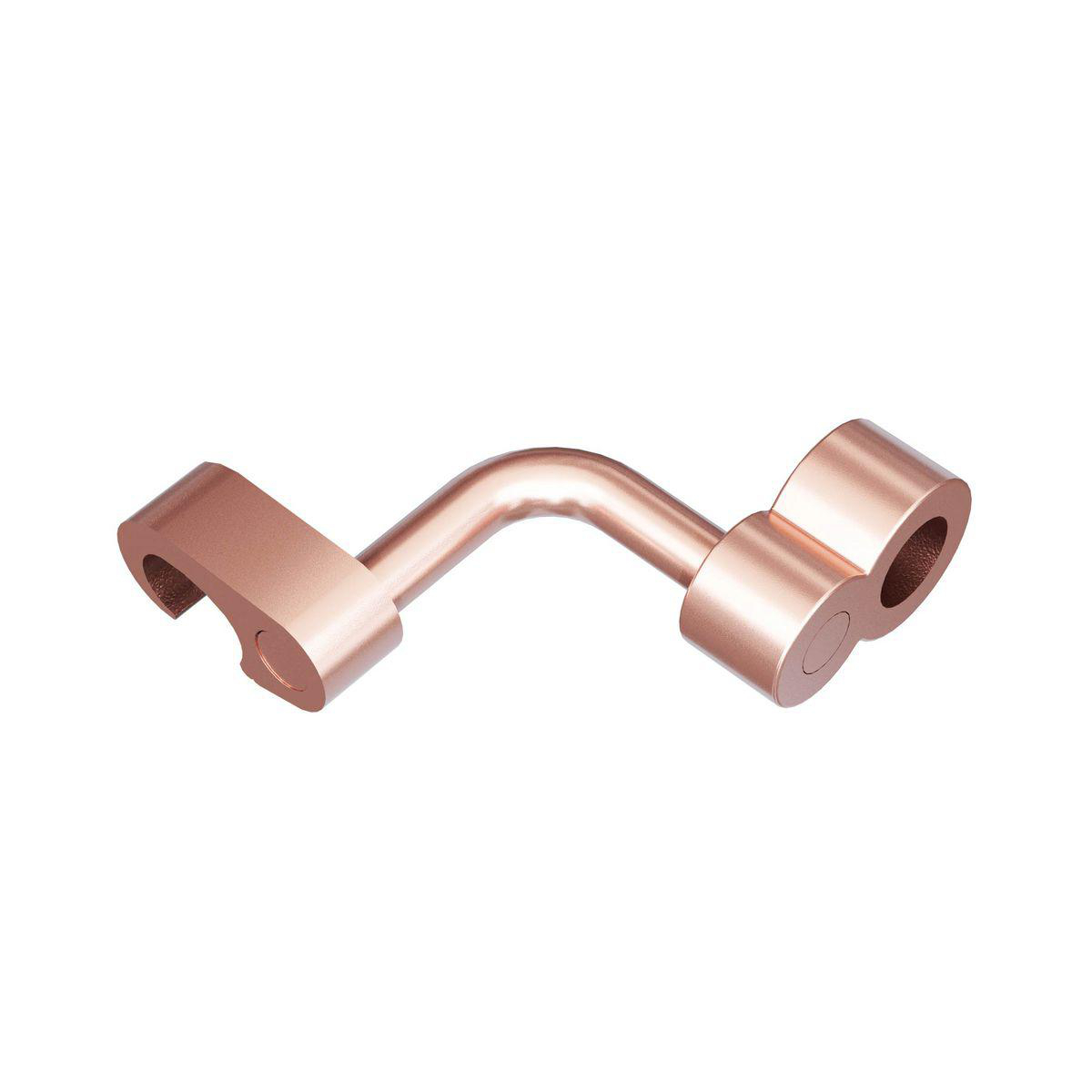

Product image for BURNDY YGLR29C34 GROUND GRID CROSS 3/4 ROD 2STR-250 AWG FIGURE 8
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

BURNDY YGLR29C34 GROUND GRID CROSS 3/4 ROD 2STR-250 AWG FIGURE 8

Manufacturer: Burndy | Catalog # YGLR29C34 | Electrozad South Part # 24431
$136.02 /ea
pc
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure
Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4" Ground Rod.

Technical Information

Applications
For Direct Burial in Earth and Concrete
Conductor Size
4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 35, 120 MM, 91.65, 248.8, 250 kcmil (Run)
Conductor Type
Copperweld, Commercial Stranded Copper (Run)
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size
0.75 IN Dimension B X 0.88 Dimension B-B X 2.63 IN Length X 0.5 IN Dimension D
Type
YGLR-C

Manufacturer Information

Brand
Burndy
Sub Brand
Gridlok™

General Product Info

12-Digit UPC
781810220825
GTiN
00781810220825
Product UPC
78181022082

Dimensions

Height
4.18 in
Length
2.63 in
Overall Length
2.63 in
Width
1.34 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
