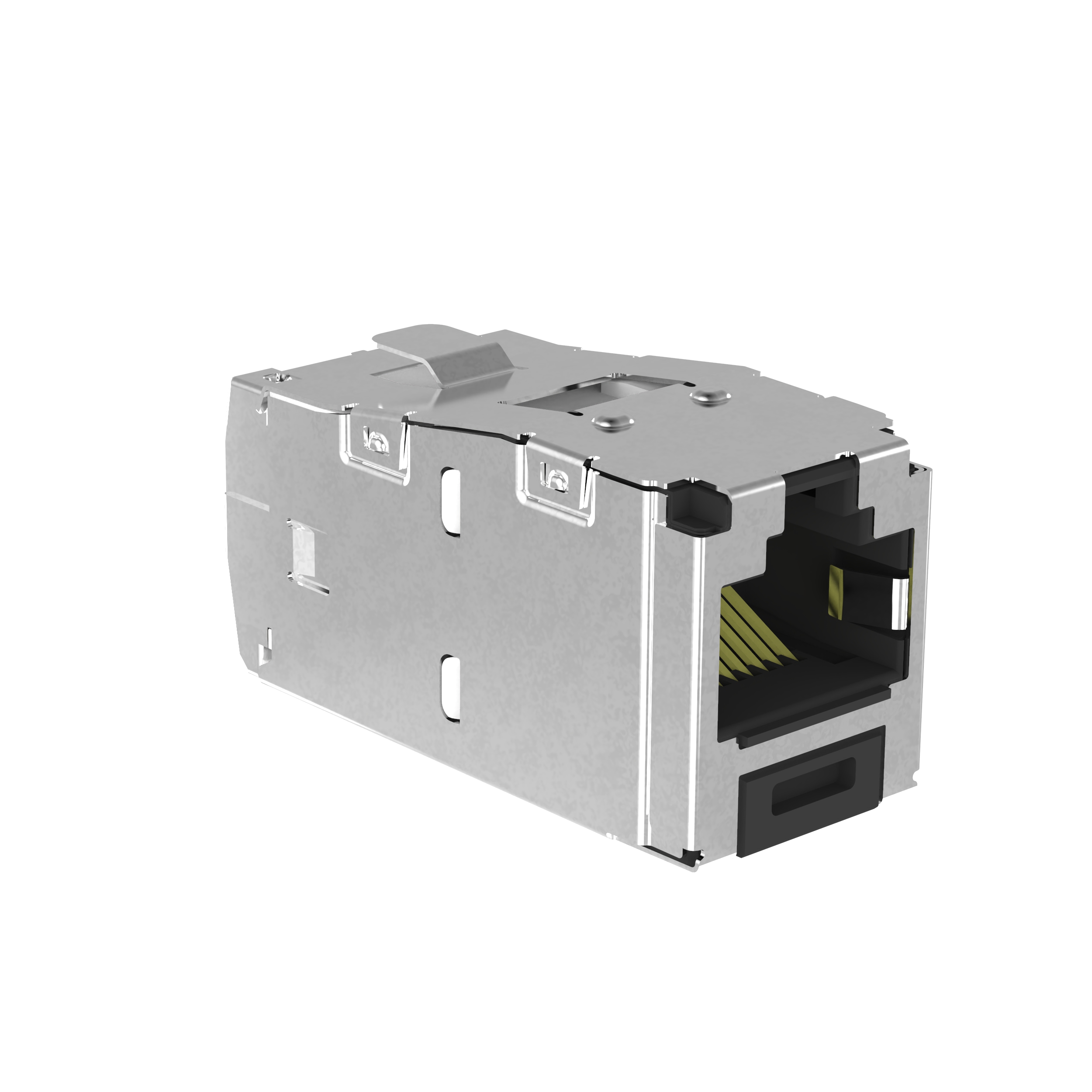

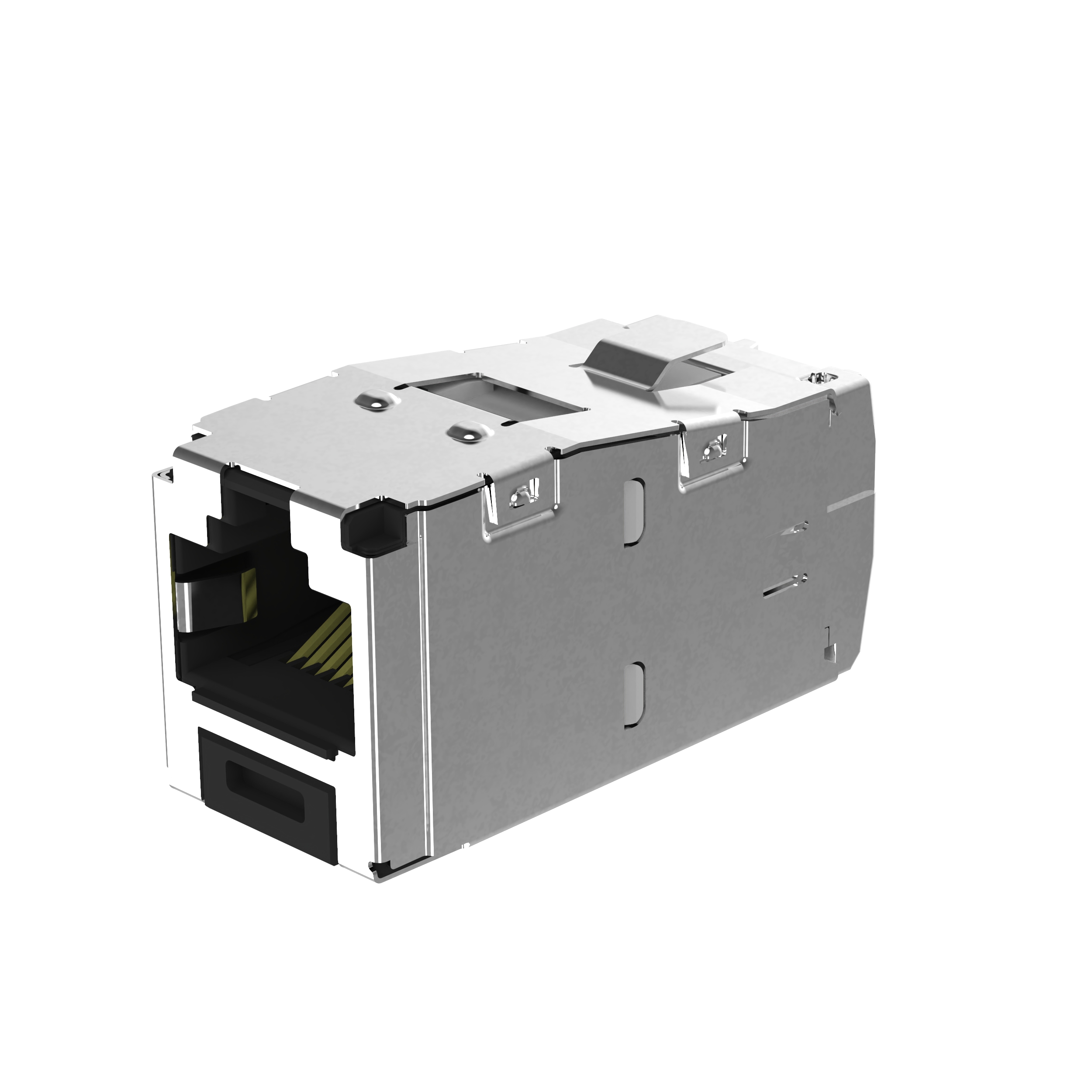

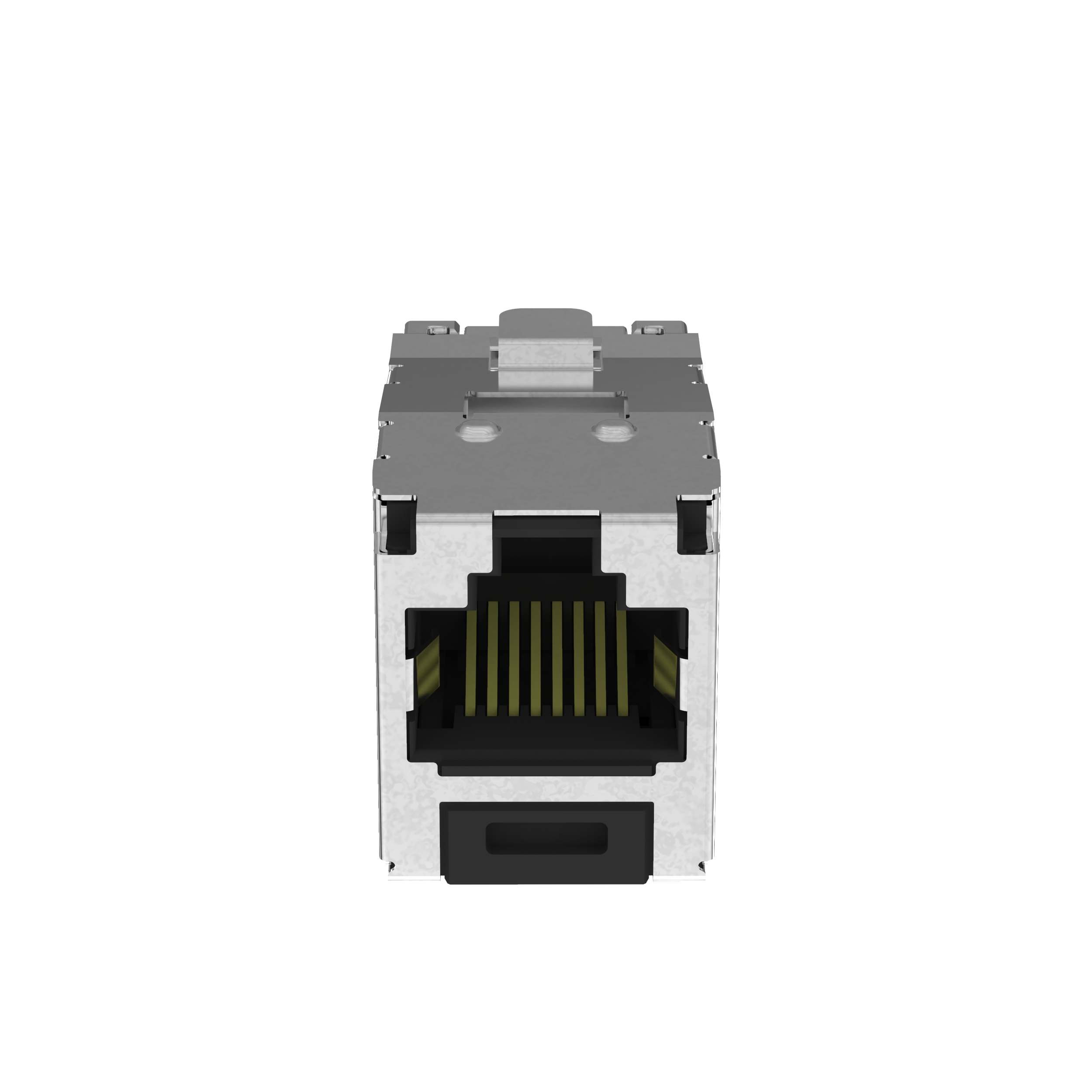

Mini-Com® TX6A™ 10Gig™ shielded jack module. Category 6A/Class EA, 8 position, shielded jack module shall terminate 4 pair, 22 to 26 AWG, 100 ohm shielded twisted pair cable and shall not require use of a punchdown tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour coded blue to designate category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com® TX6A™ 10Gig™ shielded jack module must be installed as part of the TX6A™ 10Gig™ shielded copper cabling system to achieve IEEE 10GBASE-T certified performance.
