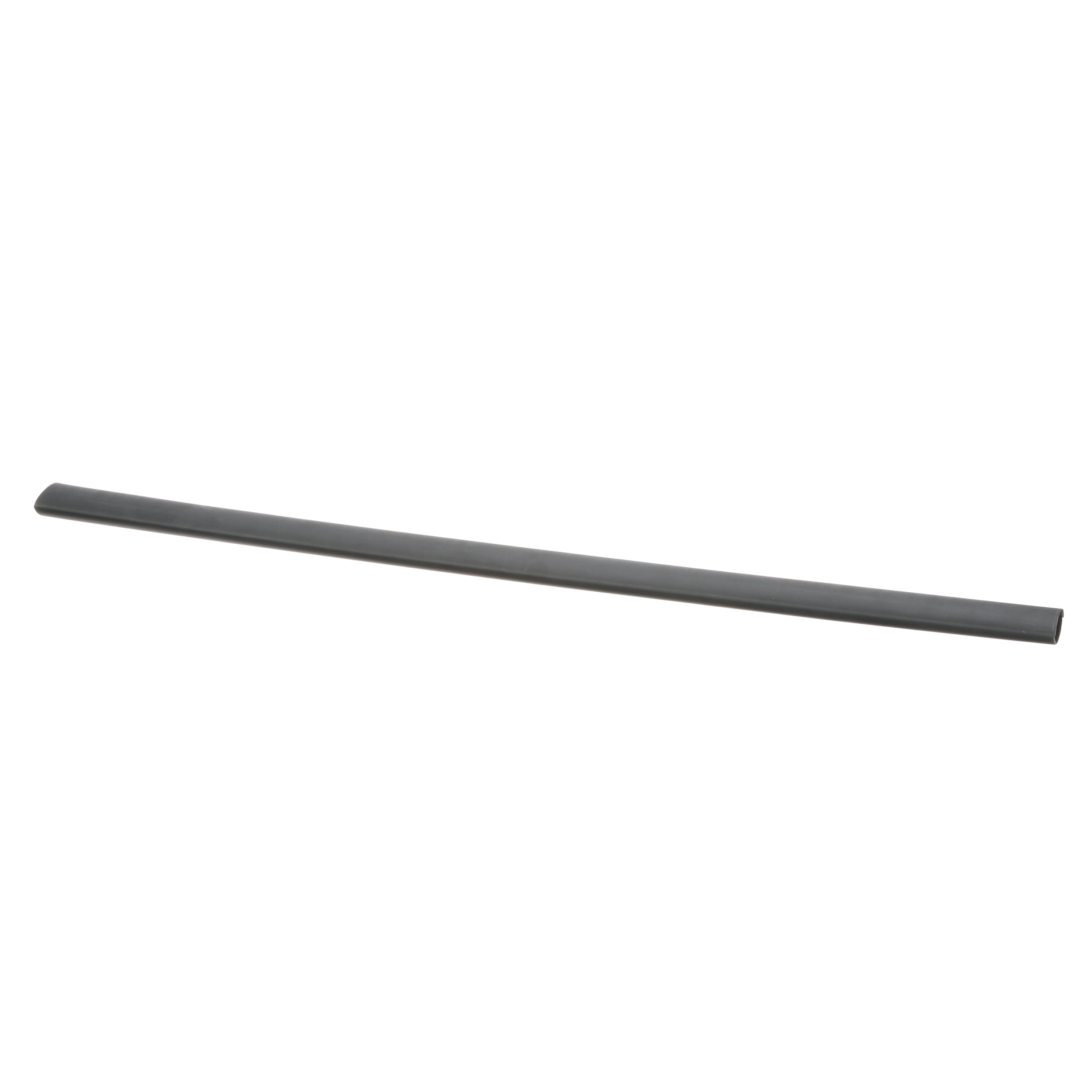

Product image for Damp-Shrink™ HSTTA100-48-5 Heatshrink, Black, Adh. Lined PO, 4' L, 1" to .32"
Image thumbnail 0
Image thumbnail 1
Email

Damp-Shrink™ HSTTA100-48-5 Heatshrink, Black, Adh. Lined PO, 4' L, 1" to .32"

Manufacturer: Panduit | Catalog # HSTTA100-48-5 | Electrozad South Part # 251232
$55.14 /ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The HSTTA100-48-5 Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67..F to 230..F (-55..C to 110..C). Cross-linked Polyolefin. 1" (25.4 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-55 to 110 degrees C
Type
Flame Retardant

Packaging

Package Qty
5

Manufacturer Information

Brand
Panduit
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369959
Color
Black
GTIN
00074983369959
Product UPC
07498336995

Dimensions

Inside Diameter
8.1 mm
Outside Diameter
25.4 mm
Overall Length
4 ft
Thickness
2.5 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
South Korea
