PANDUIT CJS688TGY MODULE MINICOM CAT6 RJ45 SHIELDED 8POS 8WIRE TG STYLE

Manufacturer: Panduit | Catalog # CJS688TGY | Electrozad South Part # 252881
$32.59 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual

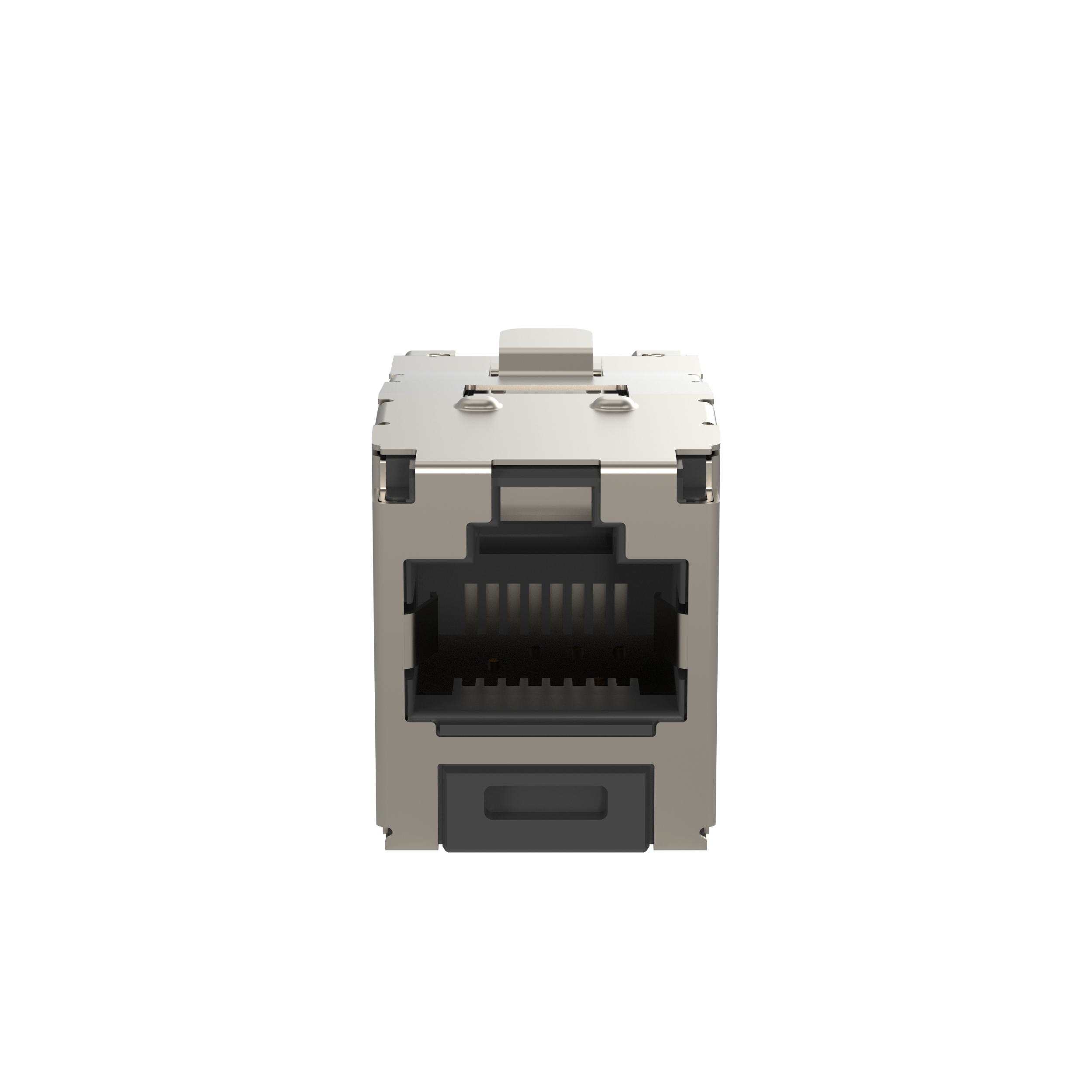

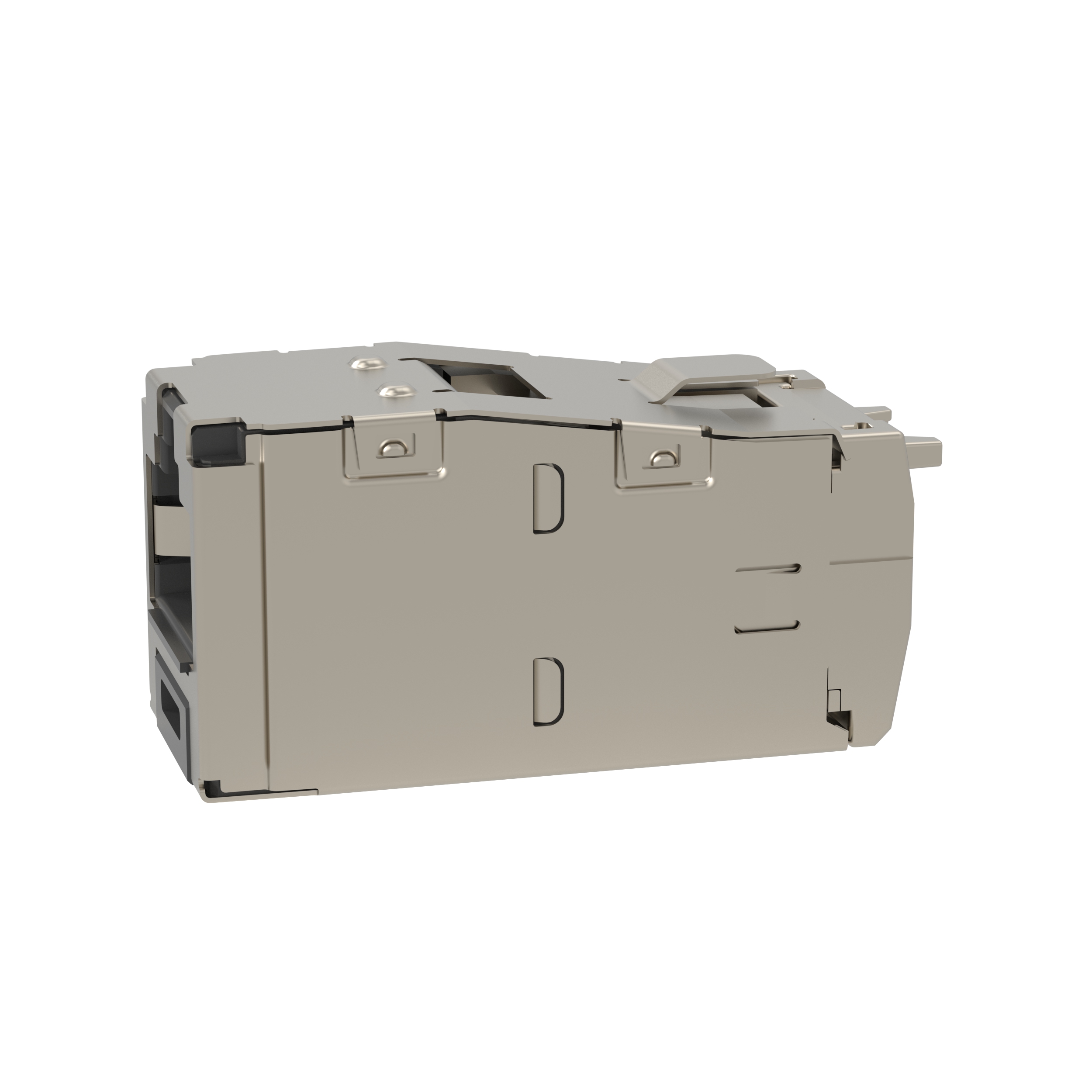

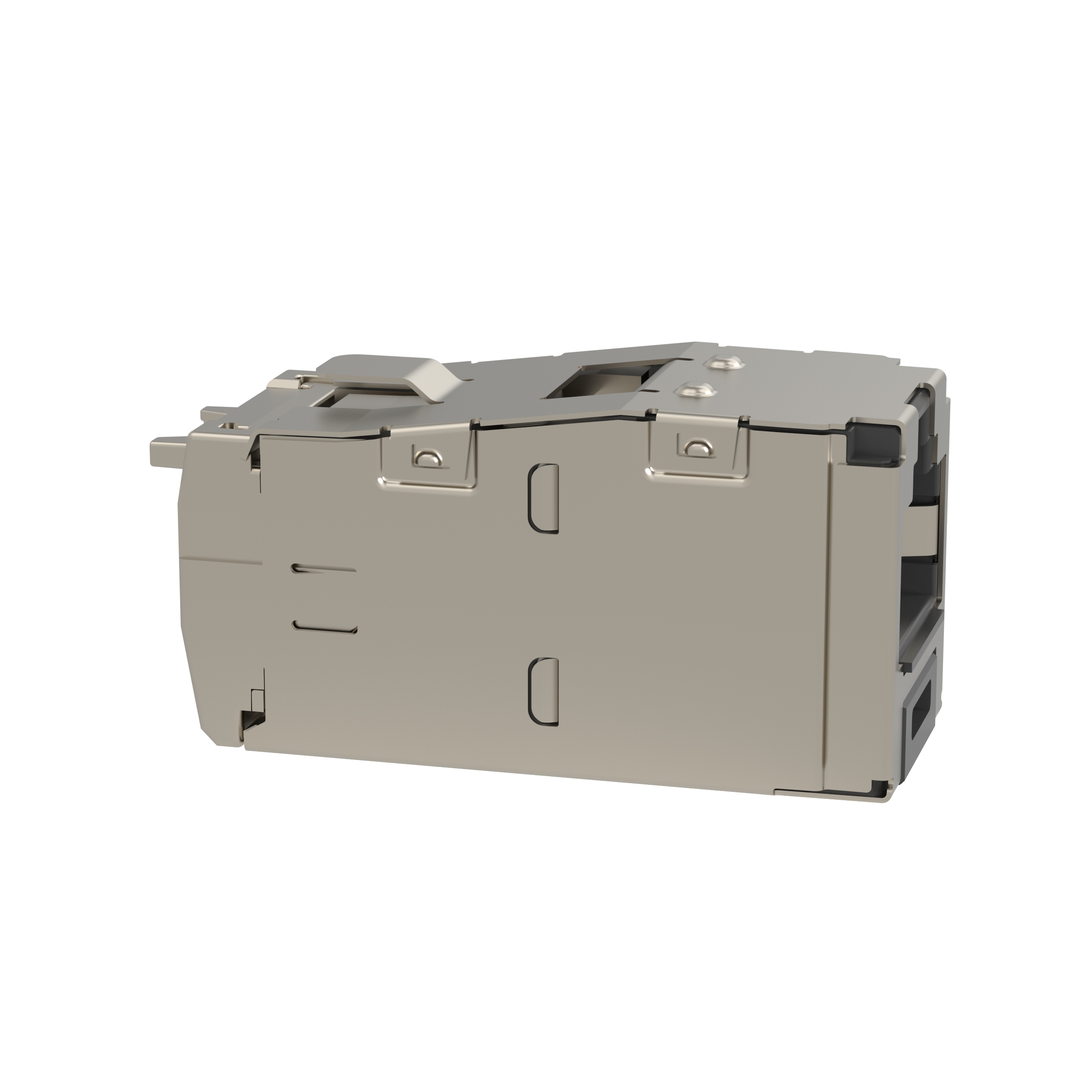

Category 6, RJ45, 8-position, 8-wire universal shielded black module with integral shield.

Technical Information

Applications
Unshielded
Cable Size
22-26 AWG
Cable Type
Category 6
Material
ABS Module Housing, Plastic Wire Cap
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ-45, Shielded, TG

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983035632
Color
Black
GTiN
00074983035632
Product UPC
07498303563
Used With
Flat, Round and Solid Core Cable

Dimensions

Depth
1.5 in
Height
0.73 in
Overall Length
38.1 mm
Width
15.7 mm

Certifications & Compliance

Country of Origin
Costa Rica,USA
