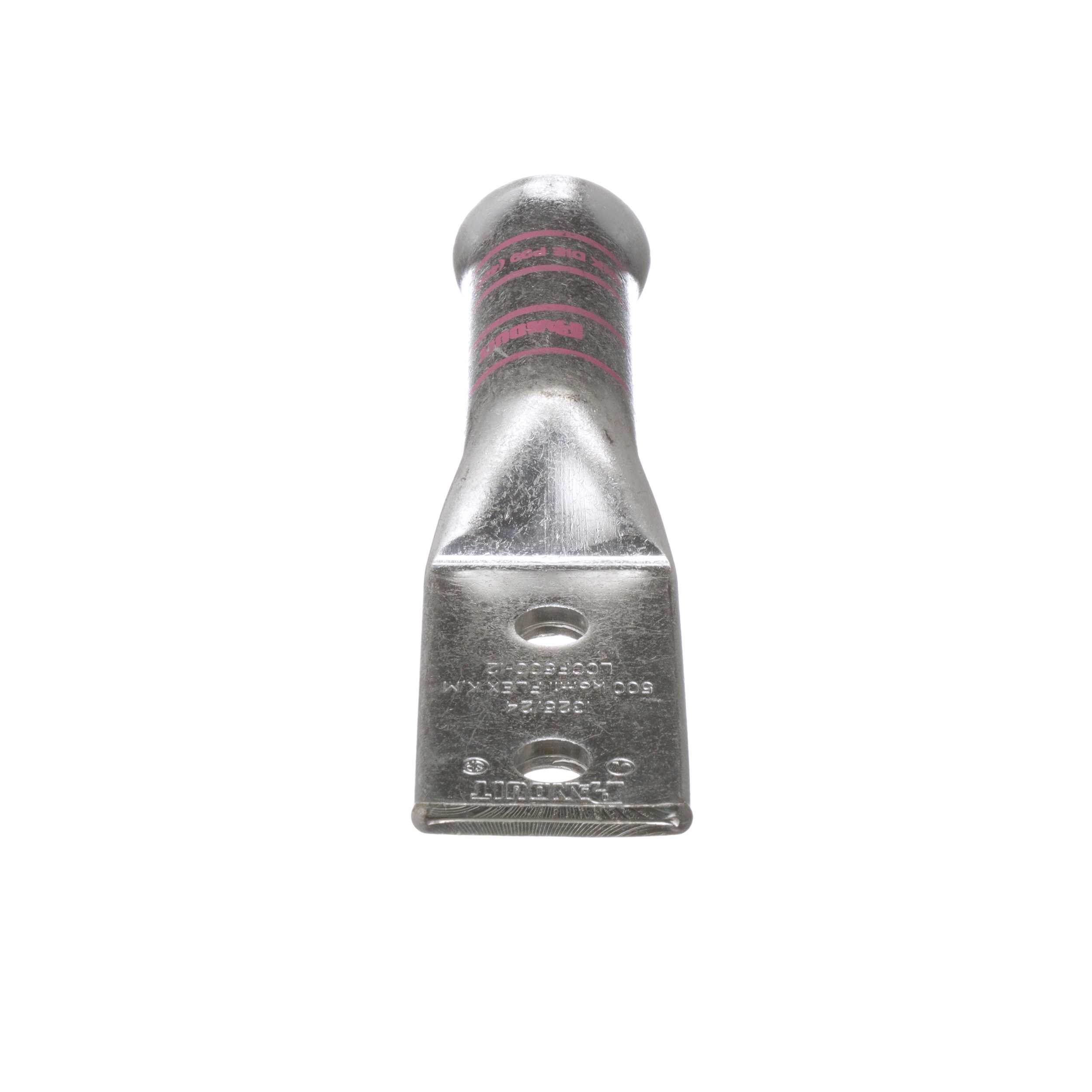

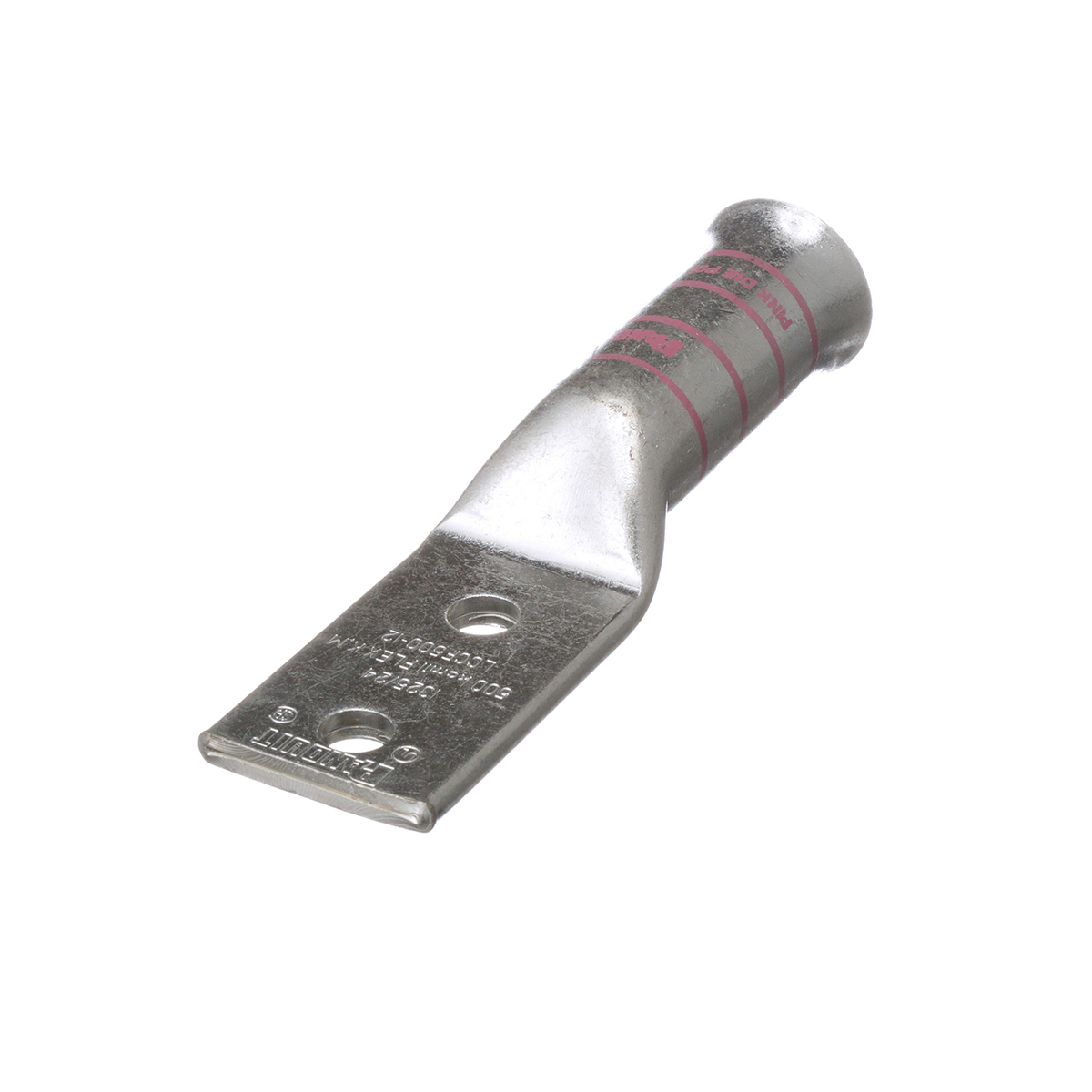

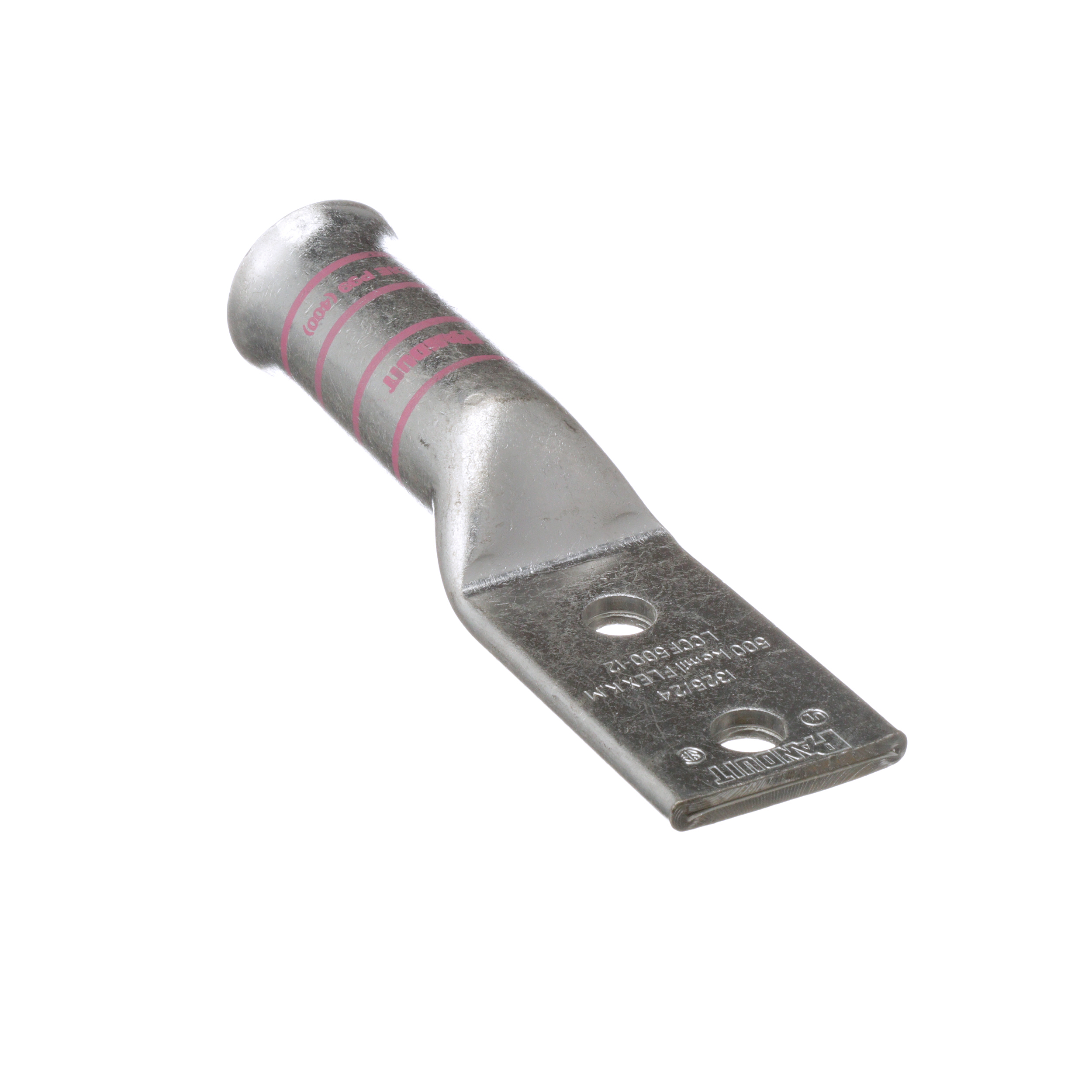

Pan-Lug™ LCCF500-12-6 Comp. Lug, 400, Window, Tin Plt Copper, Two 0.5" Stud,

Manufacturer: Panduit | Catalog # LCCF500-12-6 | Electrozad South Part # 255708
$12,802.47 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Two-hole, long flared barrel, 500 kcmil cable, 1/2 bolt holes, 1.75 hole spacing, NEMA hole sizes and spacing.

Technical Information

Angle
Straight
Barrel Length
2.88 in
Barrel Type
Long
Color Coding
Pink
Material
Copper
Number of Holes
2
Size
500 kcmil Class K and M, 535.3 kcmil DLO
Stud Size
0.5 in
Tongue Thickness
0.26 in
Tongue Type
Standard
Tongue Width
1.89 in
Type
Type LCCF

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983753208
Color
Pink
Finish
Tin Plated
GTIN
00074983753208
Product UPC
07498375320
UNSPSC
39121405

Dimensions

Overall Length
7.04 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
