PANDUIT MLTFC6H-LP316 TIE CABLE MLT SS FULLY COATED HEAVY 20

Manufacturer: Panduit | Catalog # MLTFC6H-LP316 | Electrozad South Part # 255709
$8,434.10 /m (1000 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

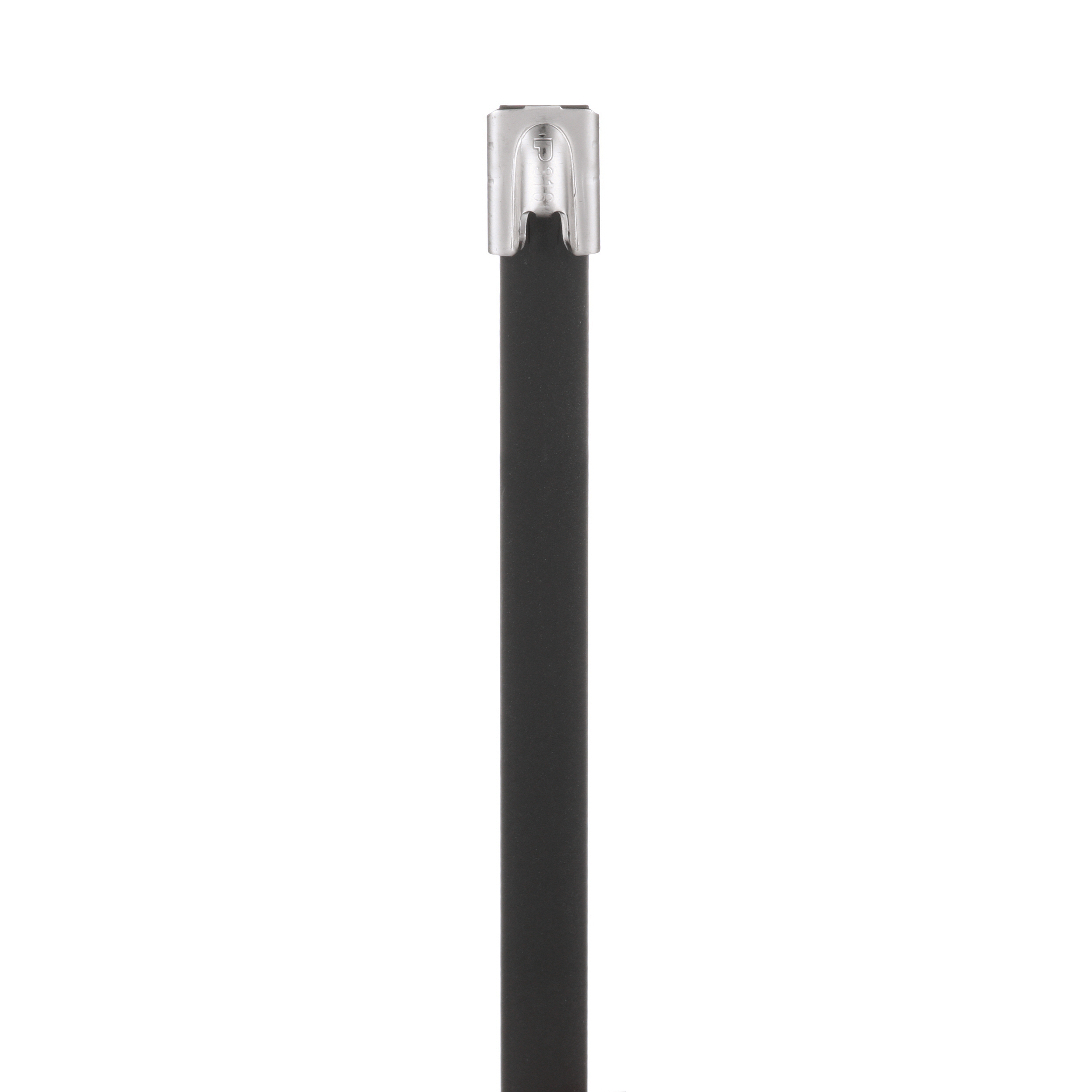

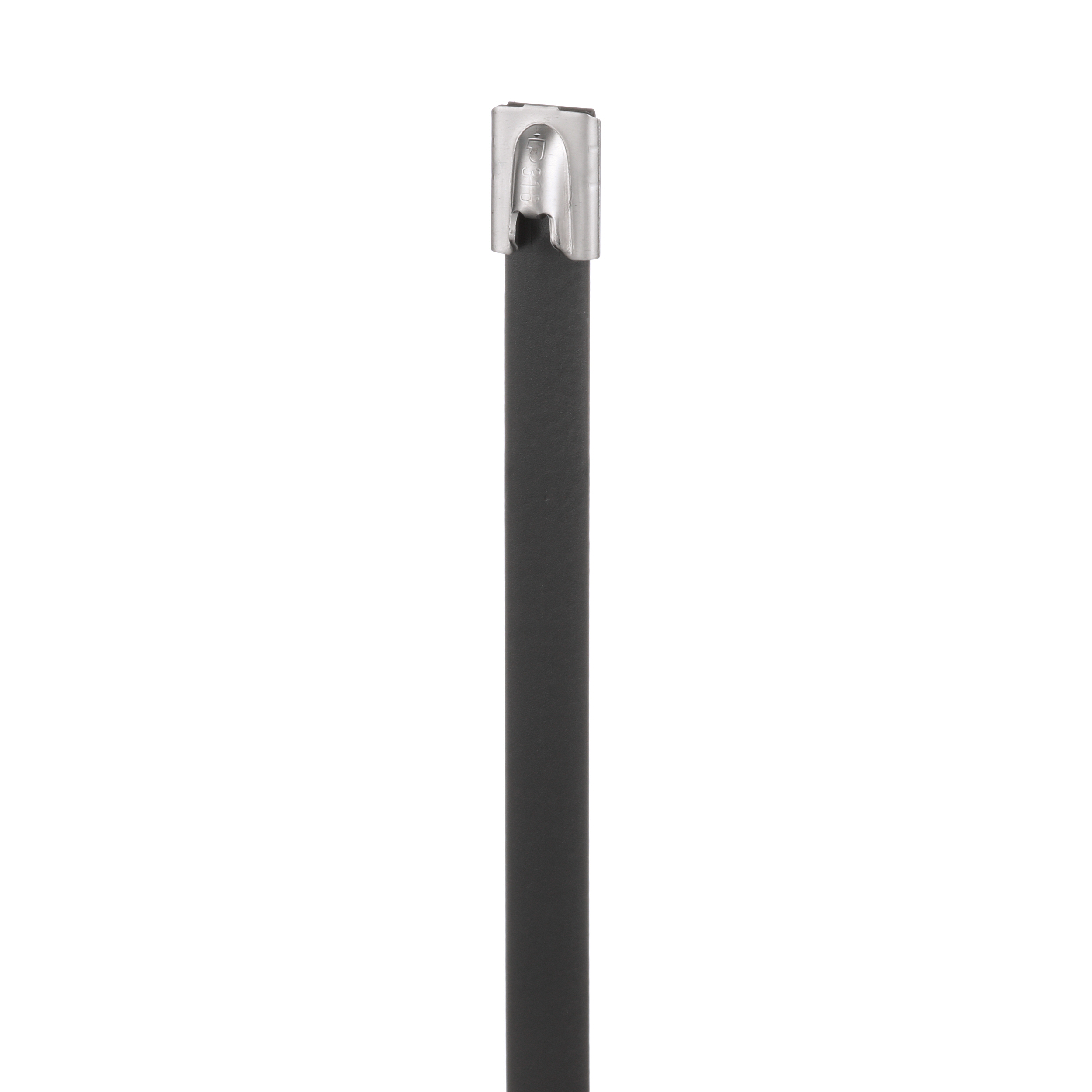

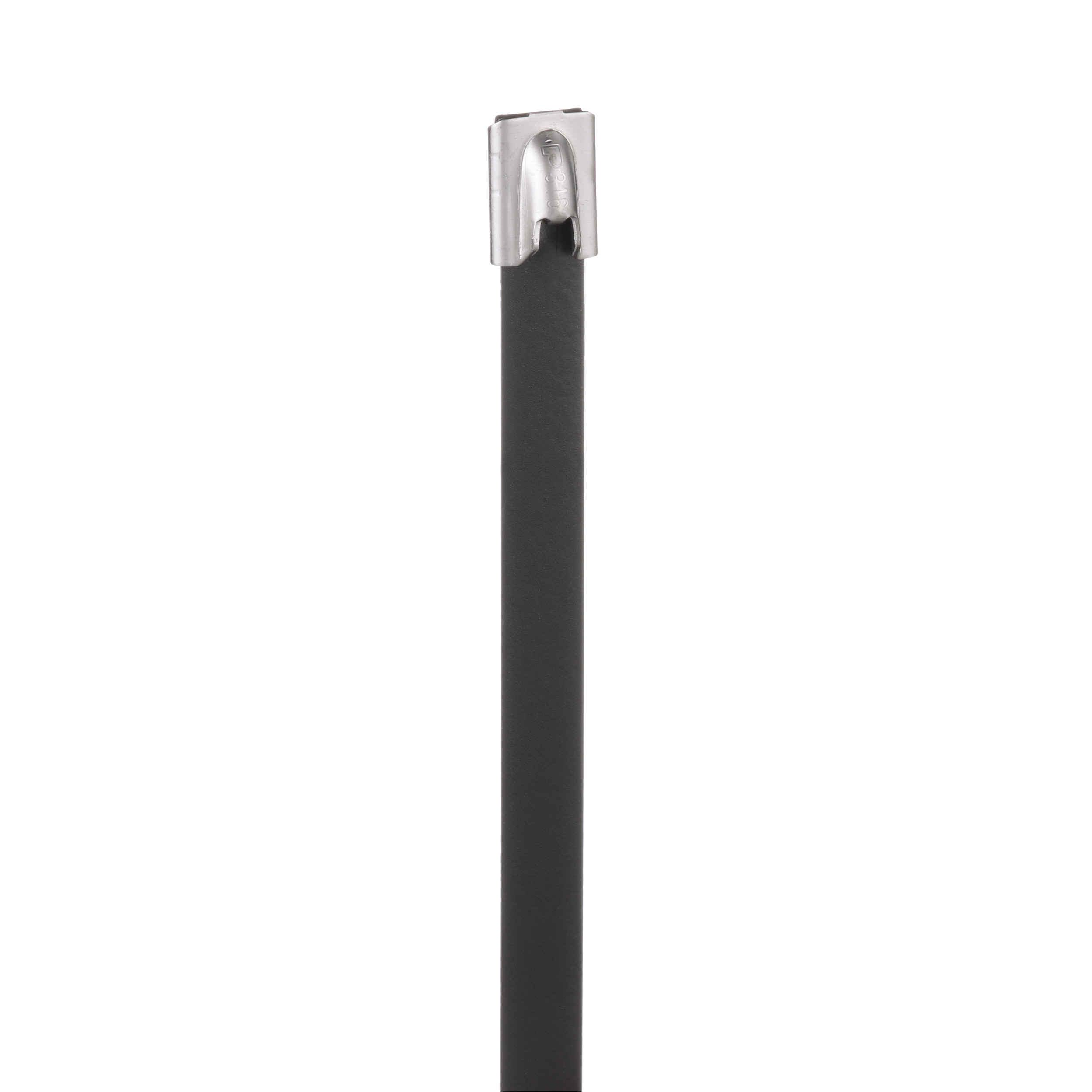

The MLTFC6H-LP316 fully coated polyester, self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any length along the tie body. The Polyester coating is UV-resistant, low smoke, and halogen free. The coating also provides additional edge protection and prevents corrosion between dissimilar metals.

Technical Information

Applications
For Load Break Switching, Separate Disconnect Means within Sight of All Motor Loads to Comply with NEC Article 430, Circuit Isolation, Service Entrance Ratings Available, Food Processing, Conveyor Systems, Harsh Industrial Environments
Body Thickness
0.017 in
Body Width
0.319 in
Bundle Diameter
152 mm
Material
Stainless Steel
Max Operating Temperature
150 degrees C
Minimum Operating Temperature
-40 degrees C
Tensile Strength
1112 lb
Type
Standard Cross Section, Internal Toothing, Locking

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Steel

General Product Info

12-Digit UPC
074983593262
Color
Black,Orange,White
Environment
Harsh
GTIN
00074983593262
Product UPC
07498359326

Dimensions

Length
20.5 in
Overall Length
521 mm
Thickness
In.
Width
NA In.

Certifications & Compliance

Country of Origin
USA
