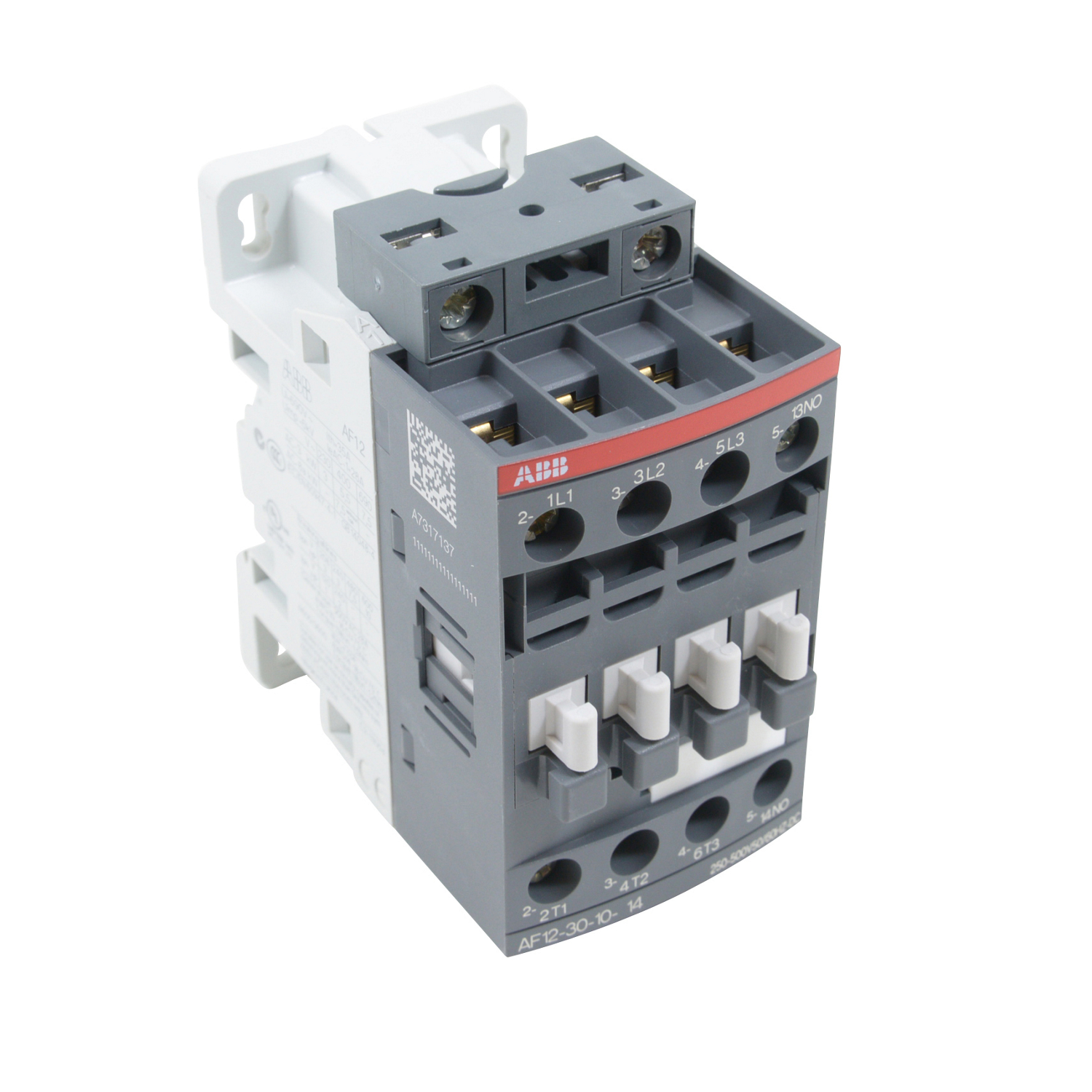

AF12 3P CONTR, 1NO, 250-500VAC/D

Manufacturer: ABB Inc | Catalog # AF12-30-10-14 | Electrozad South Part # 255828
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
3 pole, 28 amp, non-reversing across the line contactor with 250-500V AC/DC coil with 1 NO auxiliary contacts

Technical Information

Applications
For Controlling 3-Phase Motors, Non-Inductive or Slightly Inductive Loads
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
1 NO Auxiliary, 3 NO Main
Mounting Type
Front and Side
Number of Phases
3
Number of Poles
3
Power Rating
3 kW at 220/230/240 V, 5.5 kW at 380/400/415/440 V, 7.5 kW at 500/690 V
Size
45x86x77mm
Standard
60947-4-1,CSA C22.2 N°14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-25 to 60 degrees C
Terminal Type
Screw Terminals
Type
Non-Reversing

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325538411
Environmental Conditions
-60 to 80 °C Storage Temperature
GTIN
00804325538411
Product UPC
80432553841
