MERSEN AG10 FUSE MIDG CLASS G 10A 600V 13/32"DIA TIME DELAY MIDGET | Electrozad South

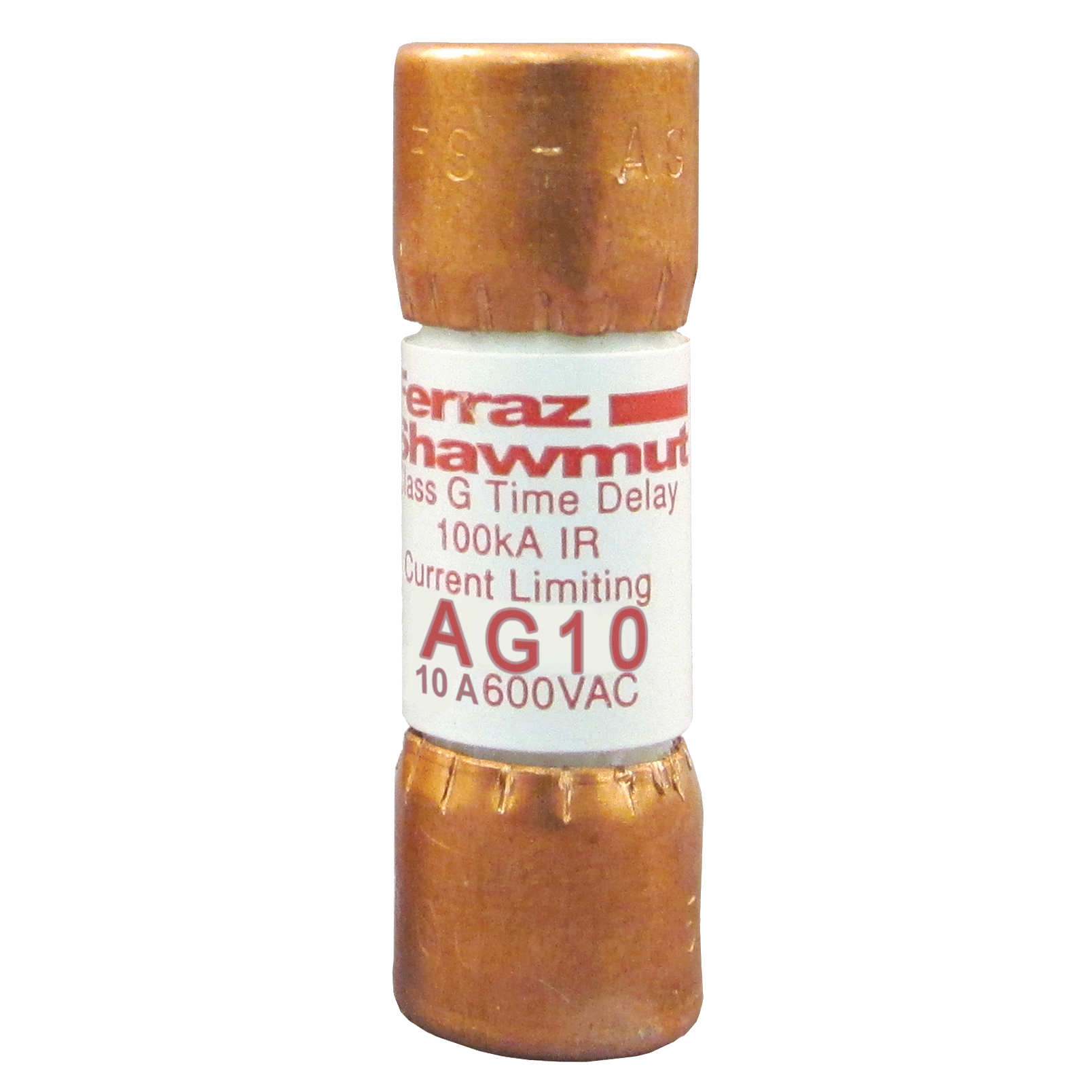

Product image for MERSEN AG10 FUSE MIDG CLASS G 10A 600V 13/32"DIA TIME DELAY MIDGET
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

MERSEN AG10 FUSE MIDG CLASS G 10A 600V 13/32"DIA TIME DELAY MIDGET

Manufacturer: Ferraz Shawmut Mersen | Catalog # AG10 | Electrozad South Part # 2560
$17.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Technical Information

Amperage
10 A
Applications
For Lighting, Heating, Appliances
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class G
Insulation Material
GMG
Interrupt Rating
100 kA
Mounting Type
Clip
Rated Voltage AC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
4

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001905132
Class
G
Construction
Fiberglass
GTIN
30782001905133
Product UPC
78200190513
Weight
0.016 lb

Dimensions

Diameter
0.41 in
Length
1.31 in
