KILLARK XAL-53 STATION PULL RING 1NO 1NC CONTROL

Manufacturer: Hubbell Killark Fittings | Catalog # XAL-53 | Electrozad South Part # 258345
$878.60 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual

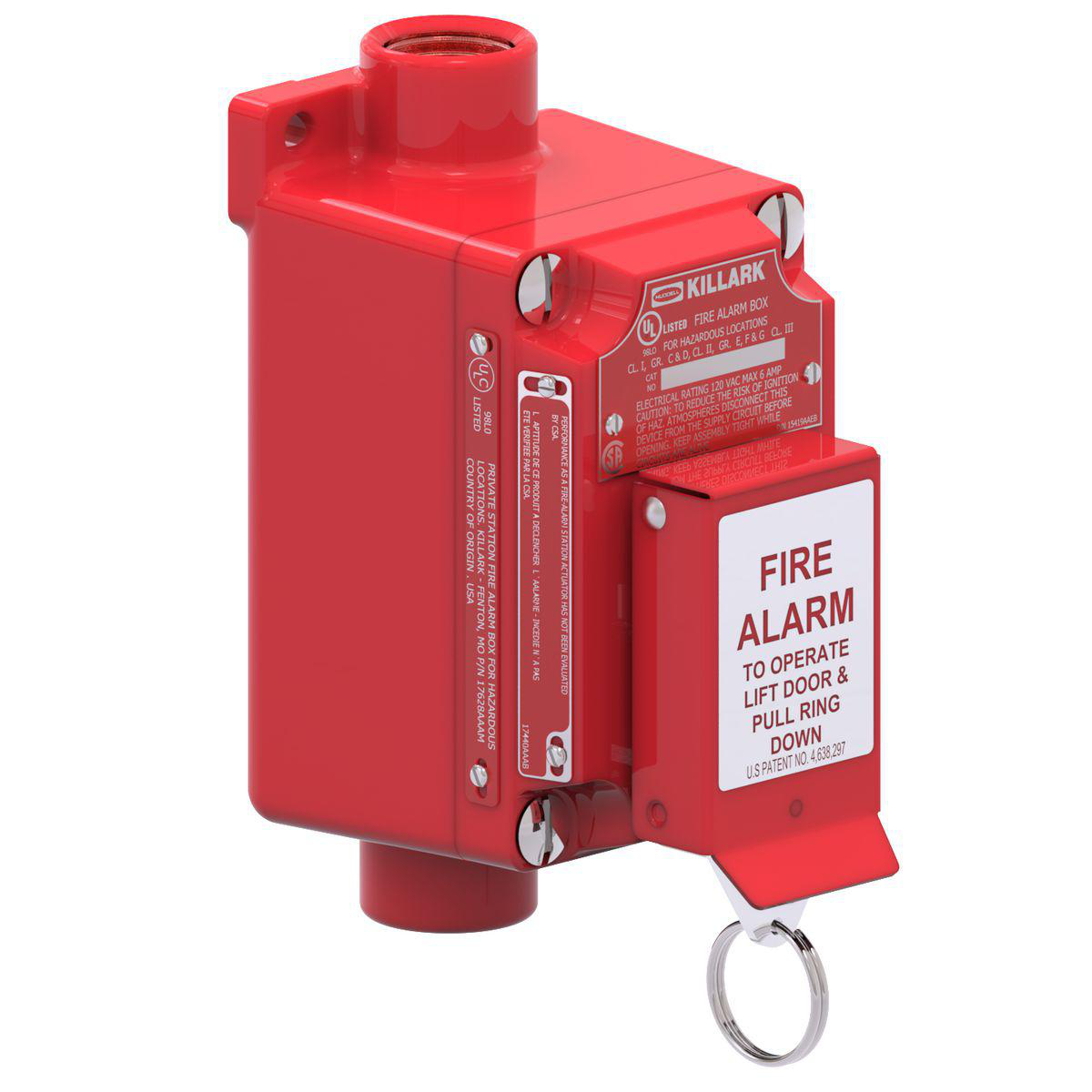

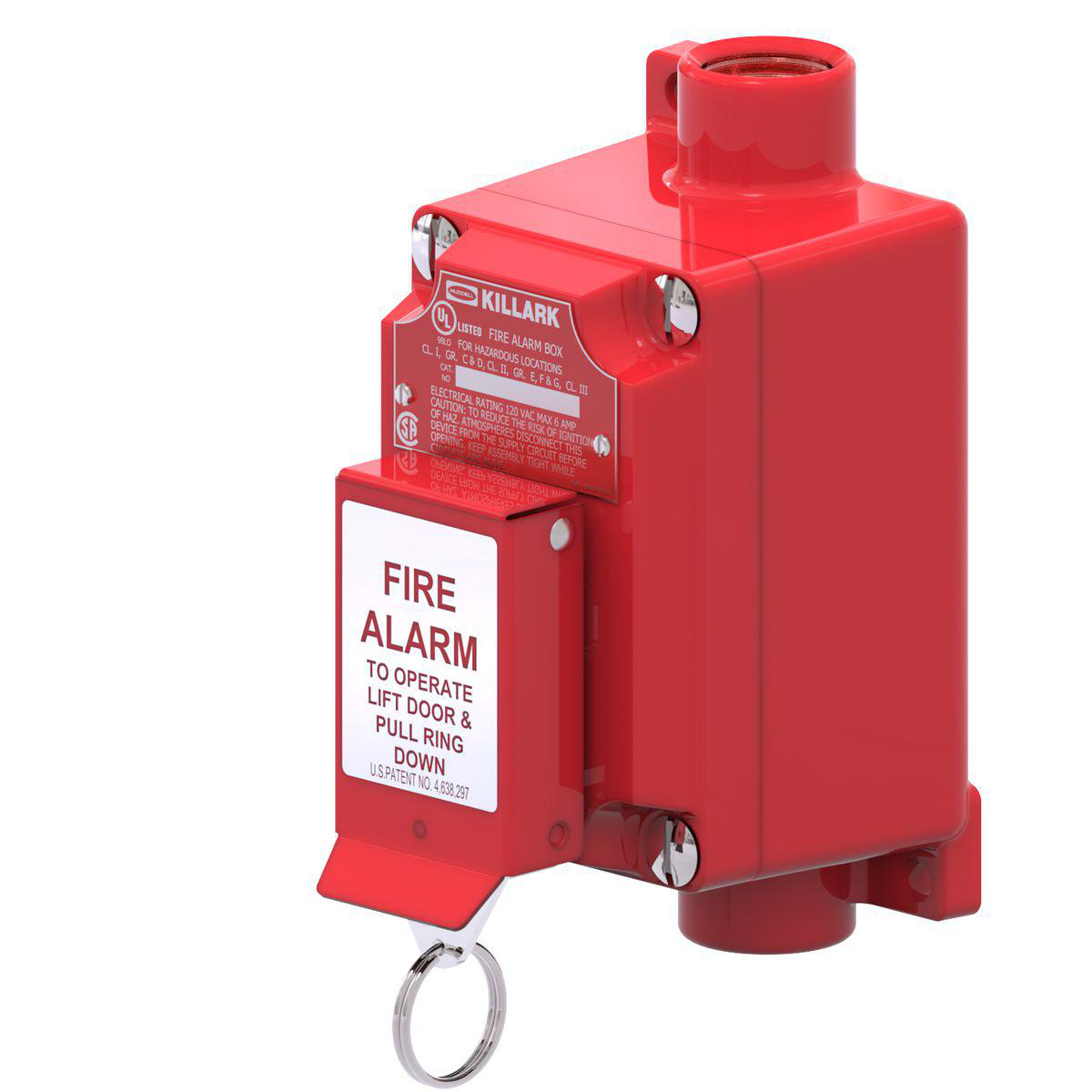

Enclosure is made of copper free aluminum alloy. Conduit openings are 3/4" NPT feed through. Red, textured powder epoxy paint finish is standard on box and cover and provides high visibility for alarm station. Has (1) normally open and (1) normally closed contacts. Bilingual nameplates included per CSA requirement. Internal ground screw is standard. The alarm station is activated by lifting the front cover and pulling down ring. This quick, easy to use two-step process prevents unintentional operation. Operator is reset by depressing shaft and returning plate to original position.

Technical Information

Action
SP
Actuator
Pull ring
Amperage
10 A
Applications
Hazardous Areas Due to the Presence of Flammable Gases or Vapors, Combustible Dusts, or Easily Ignitable Fibers or Flyings. Installation at Petroleum Refineries, Chemical and Petrochemical Plants, Storage Areas and other Processing Facilities where Hazardous Substances are Handled or Stored. Areas where Emergency Control of Fire Alarm or Signal Circuits is Required
Contact Configuration
1-NO/1-NC
Contact Rating
7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Enclosure
Aluminum enclosure
Enclosure Material
Stainless Steel
Frequency
50/60 Hz
Material
Copperfree Aluminum
Number of Poles
1
Operating Voltage
600 V
Size
6-27/64" H x 3-7/64" W x 4-9/64"
Type
Non-Reversing

Manufacturer Information

Brand
Killark

General Product Info

12-Digit UPC
783936880389
Color
Red
Finish
Textured Powder Epoxy Paint
GTiN
00783936880389
Product Series
XAL
Product UPC
78393688038
Weight
2.67 lb

Dimensions

Height
4 in
Length
7.5 in
Width
6 in

Certifications & Compliance

Country of Origin
USA
