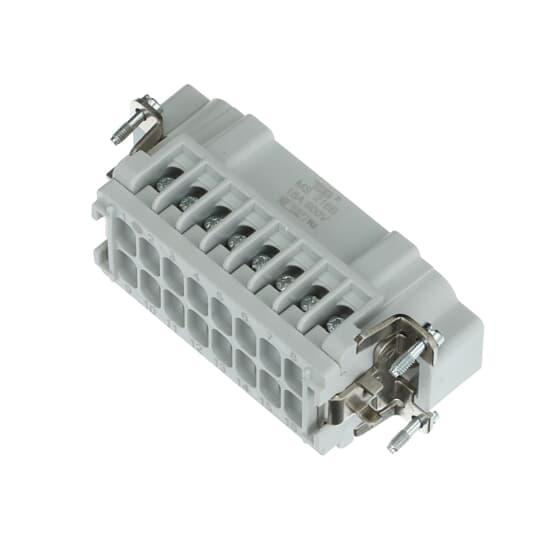

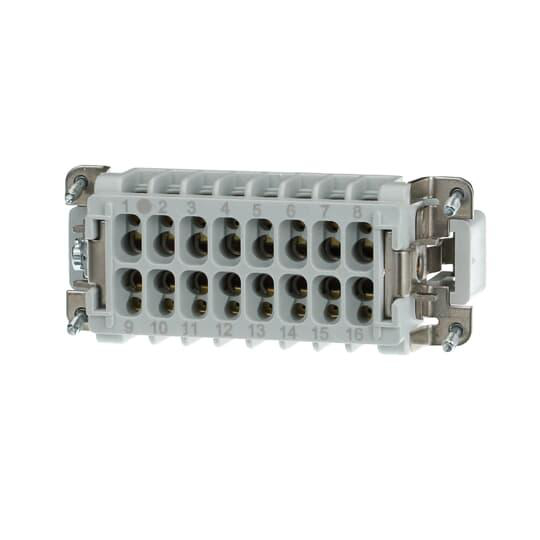

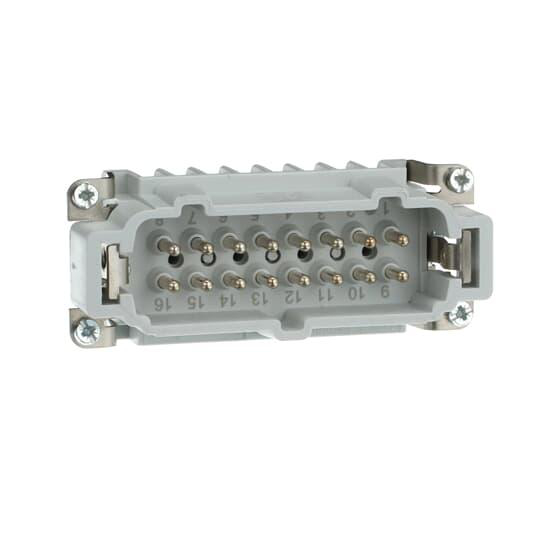

Product image for TNB MS216B TERMINAL SCREW MALE INSERT F B SERIES 16CONTACT W/GROUN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

TNB MS216B TERMINAL SCREW MALE INSERT F B SERIES 16CONTACT W/GROUN

Manufacturer: ABB | Thomas & Betts | Catalog # MS216B | Electrozad South Part # 259728
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Screw terminal Insert, Male, B series, 16 A 600 VAC, 16 contacts with ground connection, made of glass-filled thermoplastic.

Technical Information

Amperage
16 A
Applications
For use with B series
Conductor Size
20-14 AWG
Current
16 A
Material
Glass-Filled Thermoplastic Body, Copper Contact
Number of Poles
16
Standard
CSA 70013
Temperature Rating
-40 to 125 degrees C
Type
Male, Rectangular
Voltage
600 V
Wire Size
20-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Pos-E-Kon®

General Product Info

12-Digit UPC
786210118468
GTiN
05415022251937
Product UPC
78621011846
