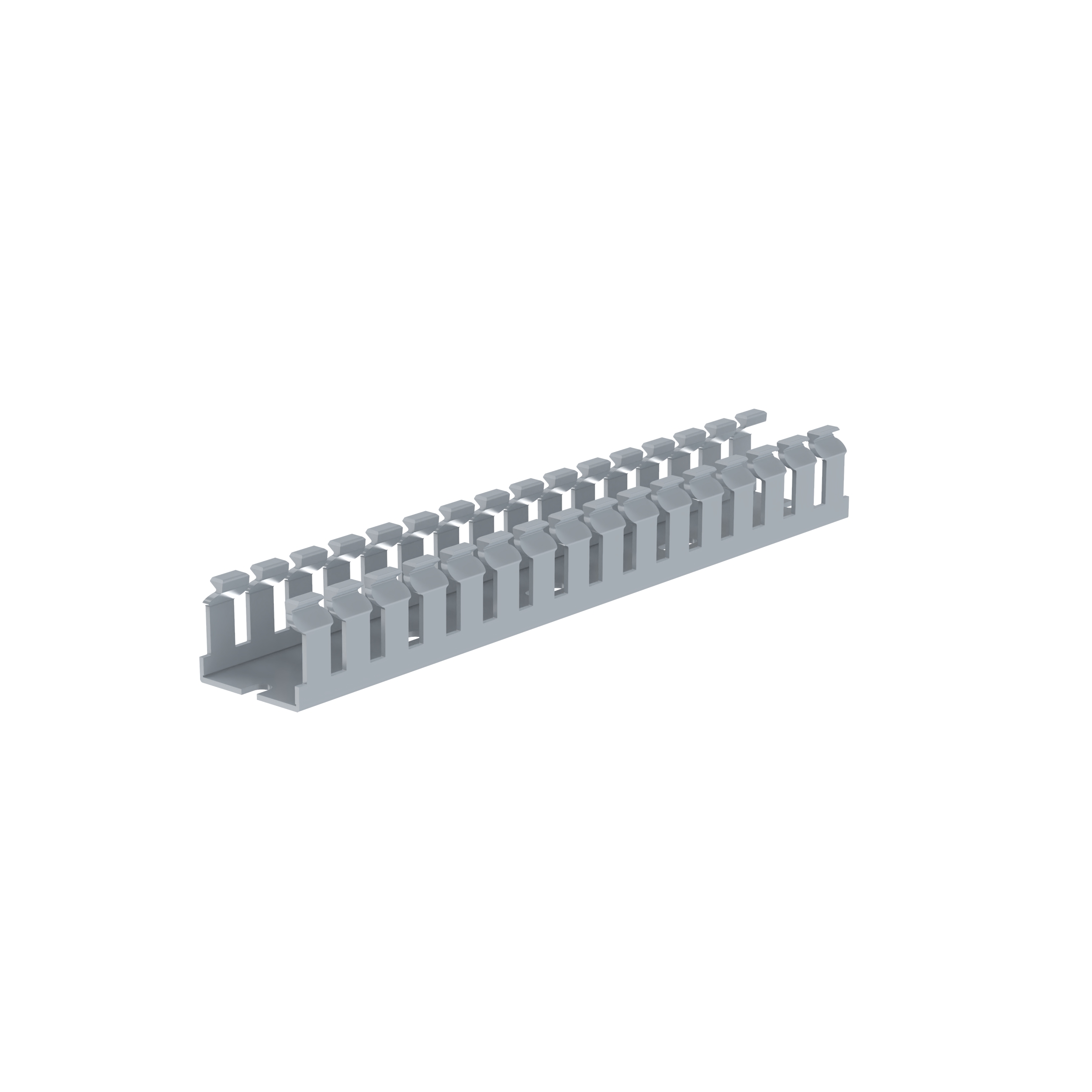

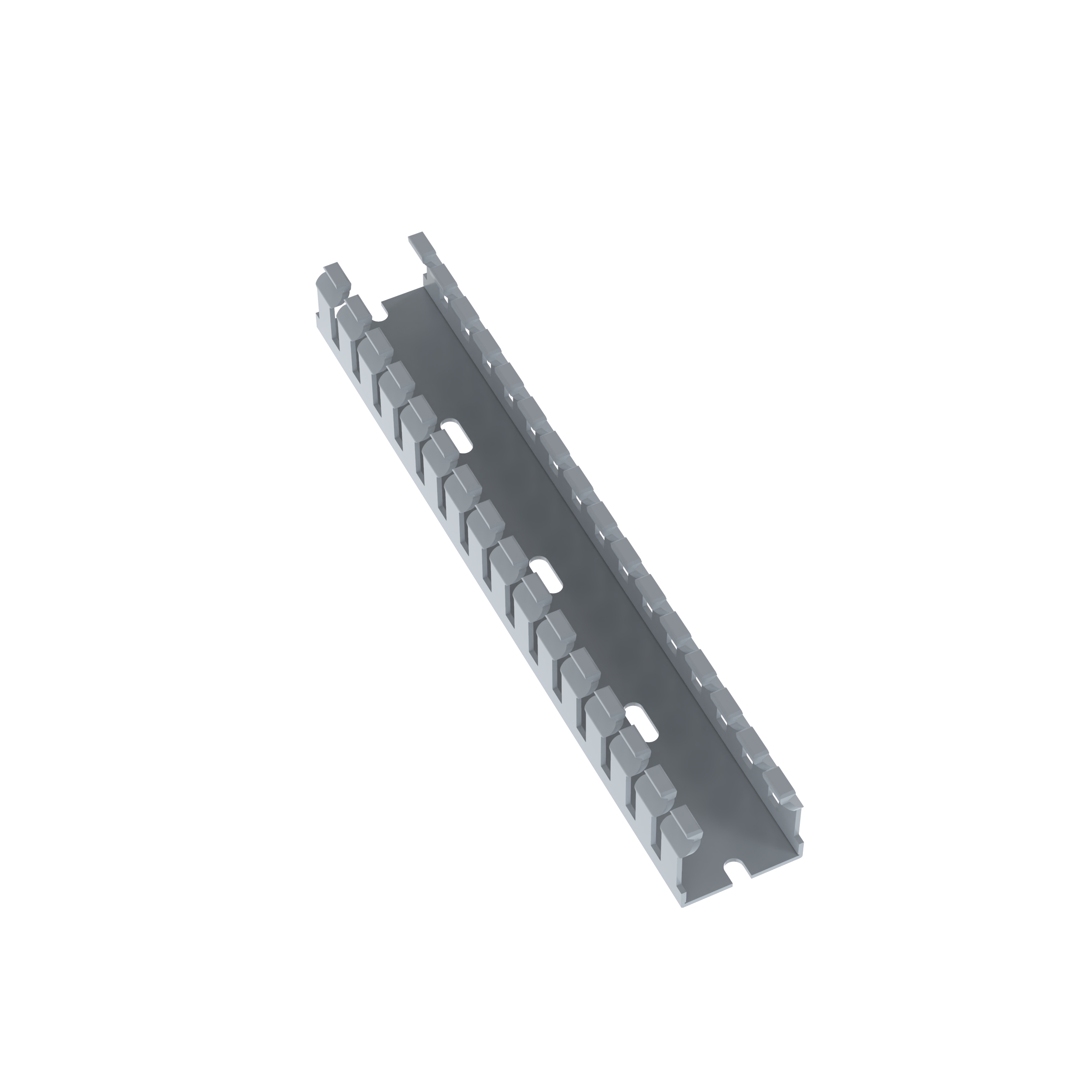

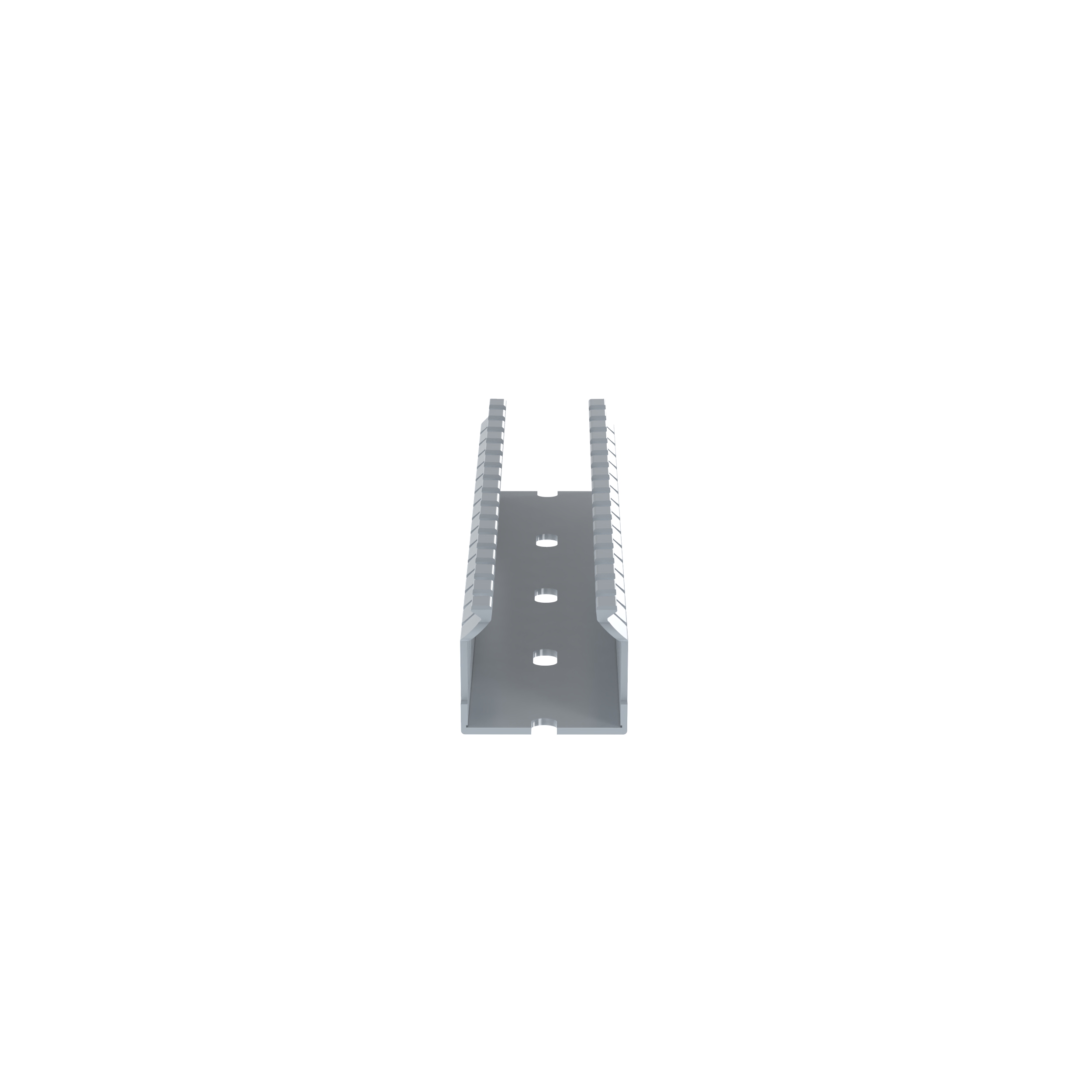

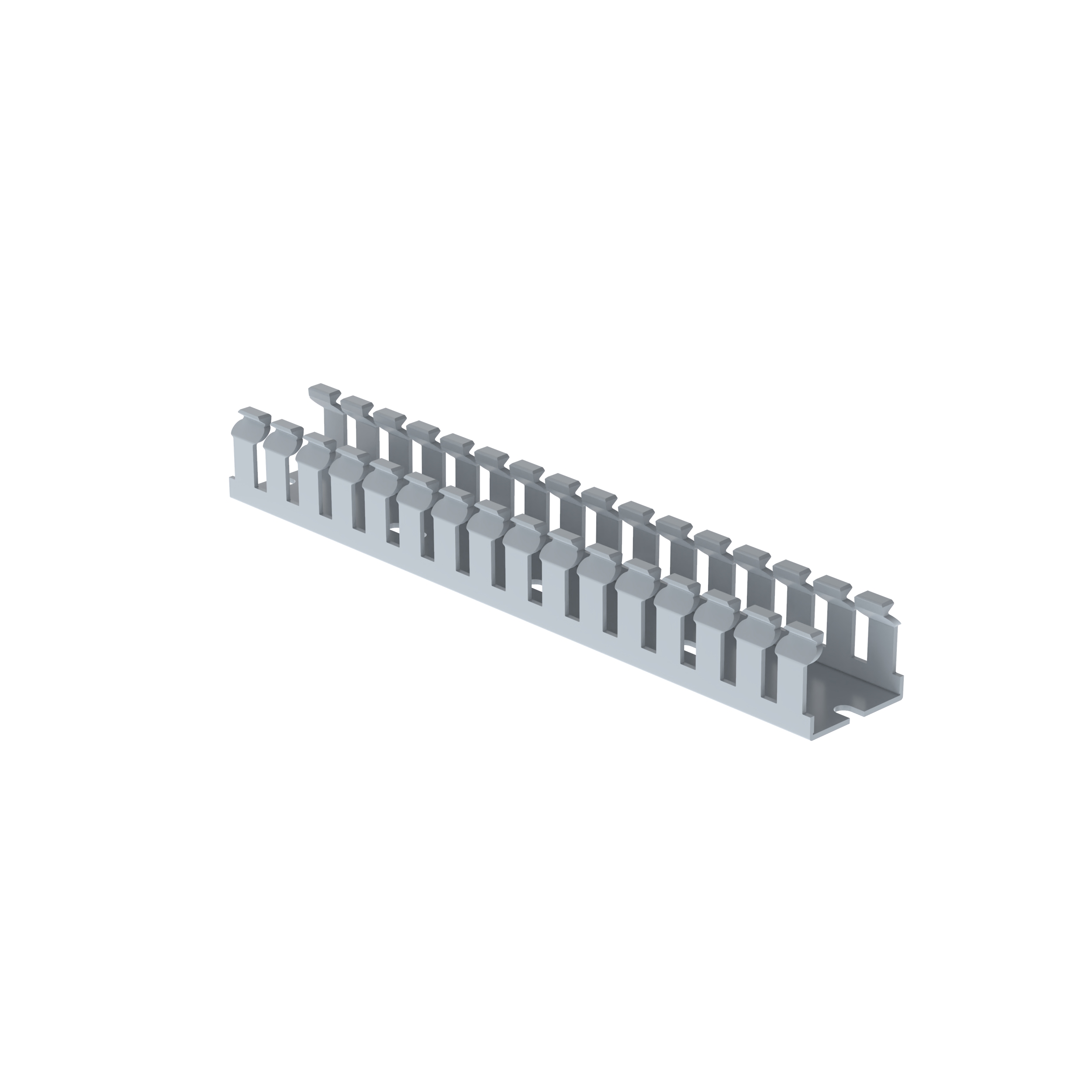

Product image for Duct wiring narrow slot PVC type-F 1x1"x6'
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Duct wiring narrow slot PVC type-F 1x1"x6'

Manufacturer: Panduit | Catalog # F1X1LG6 | Electrozad South Part # 25973
$5.16 /ea
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Panduct® Type-F narrow slot wiring duct narrow slot/finger design provides more slots to fit the spacing of high-density terminal blocks and other hardware. Material lead-free PVC. UL recognized continuous use temperature 122..F. UL 94 flammability rating of V-0. Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material. Provided with mounting holes.

Technical Information

Applications
Indoor
Material
Copper,PVC
Mounting Type
Mounting Holes
Size
32.0 x 28.7 mm
Slot Size
5 mm
TC Connection
Standard Mounting Holes
Type
Type 4 Mild Steel Freestanding Enclosure

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375035
Color
Light Gray
GTIN
00074983375035
Product UPC
07498337503

Dimensions

Depth
28.7 mm
Height
1.13 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.06 IN
Width
32 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
