Lug standard barrel window 6AWG copper 0.63" stud hole spacing

Manufacturer: Panduit | Catalog # LCD6-14A-L | Electrozad South Part # 260836
$1,059.45 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

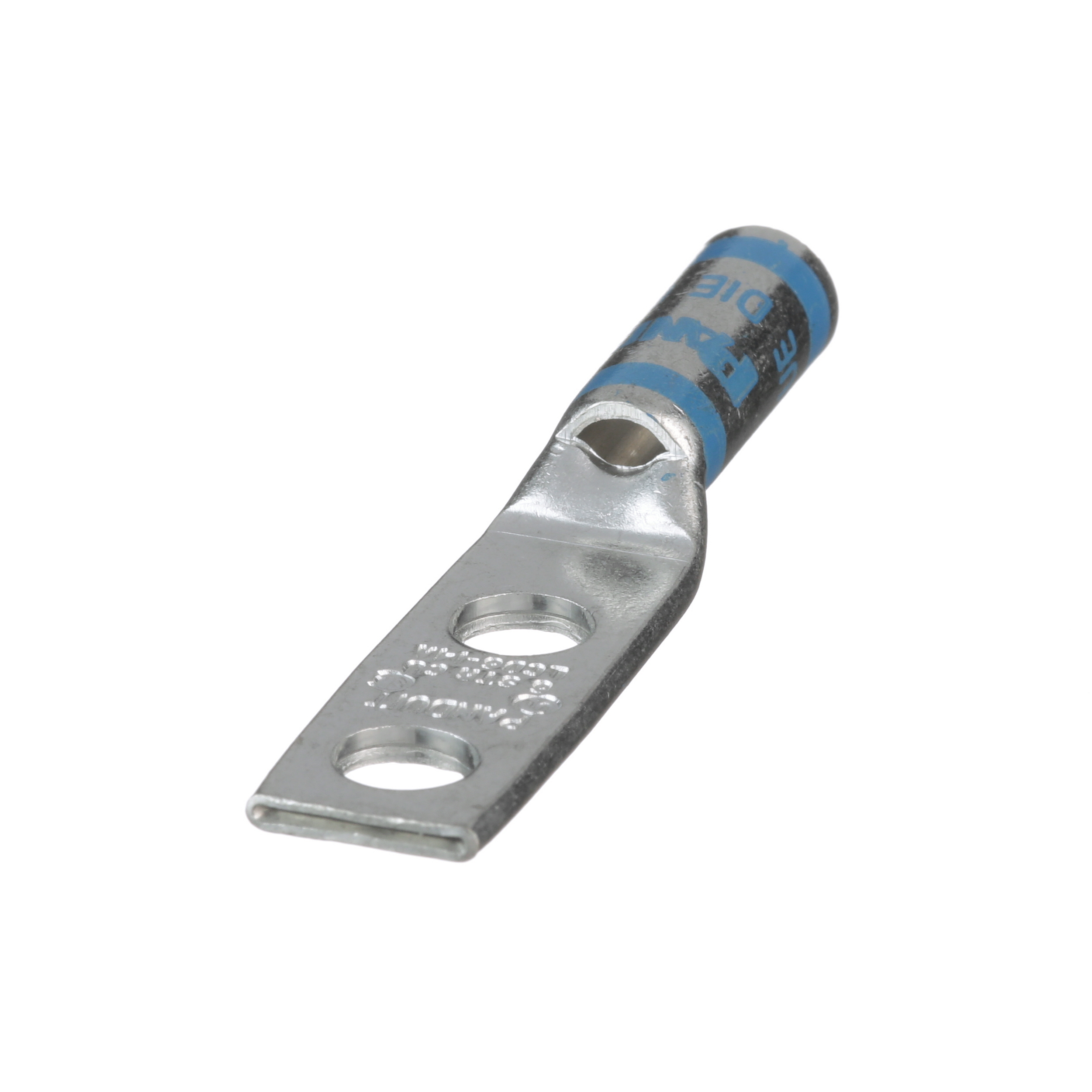

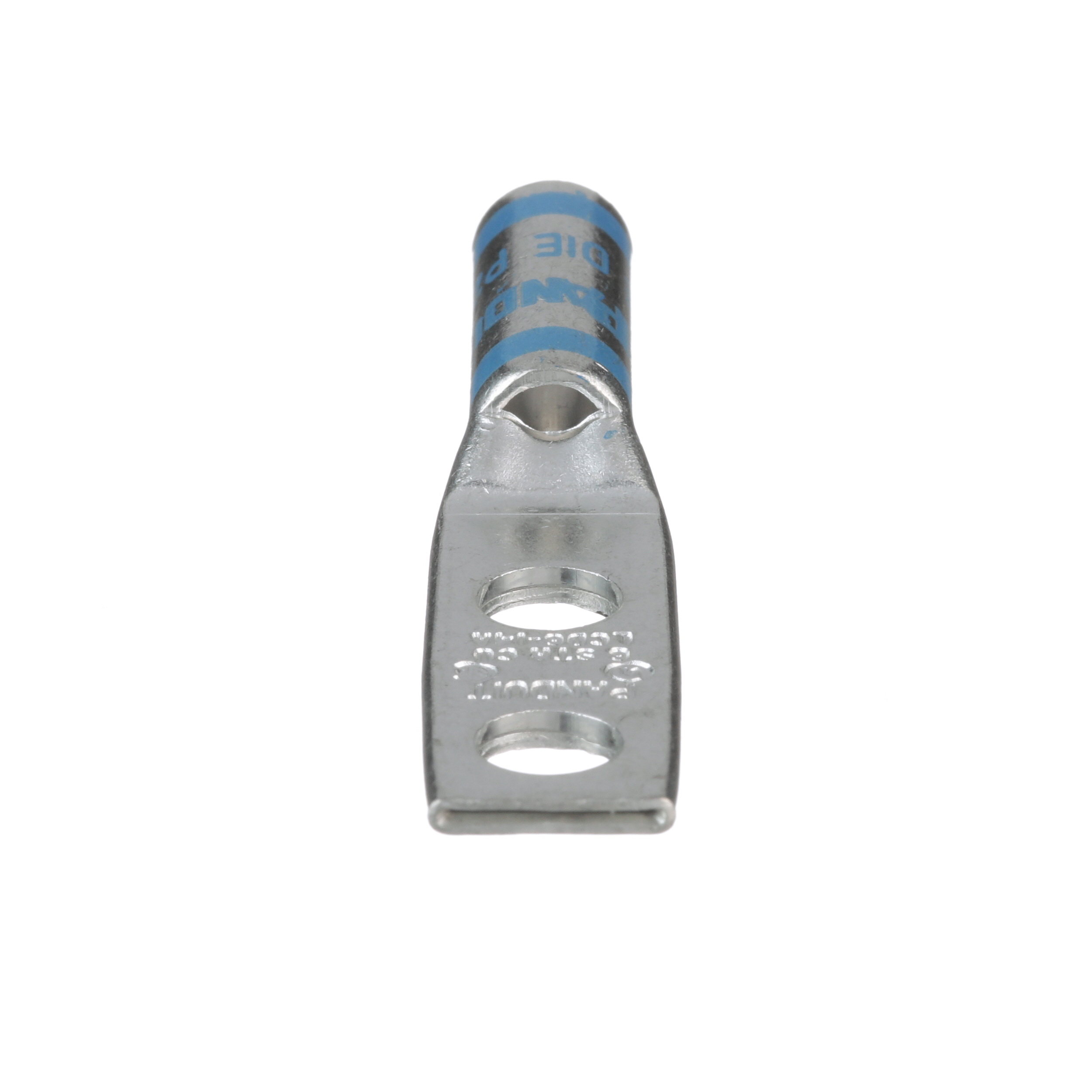

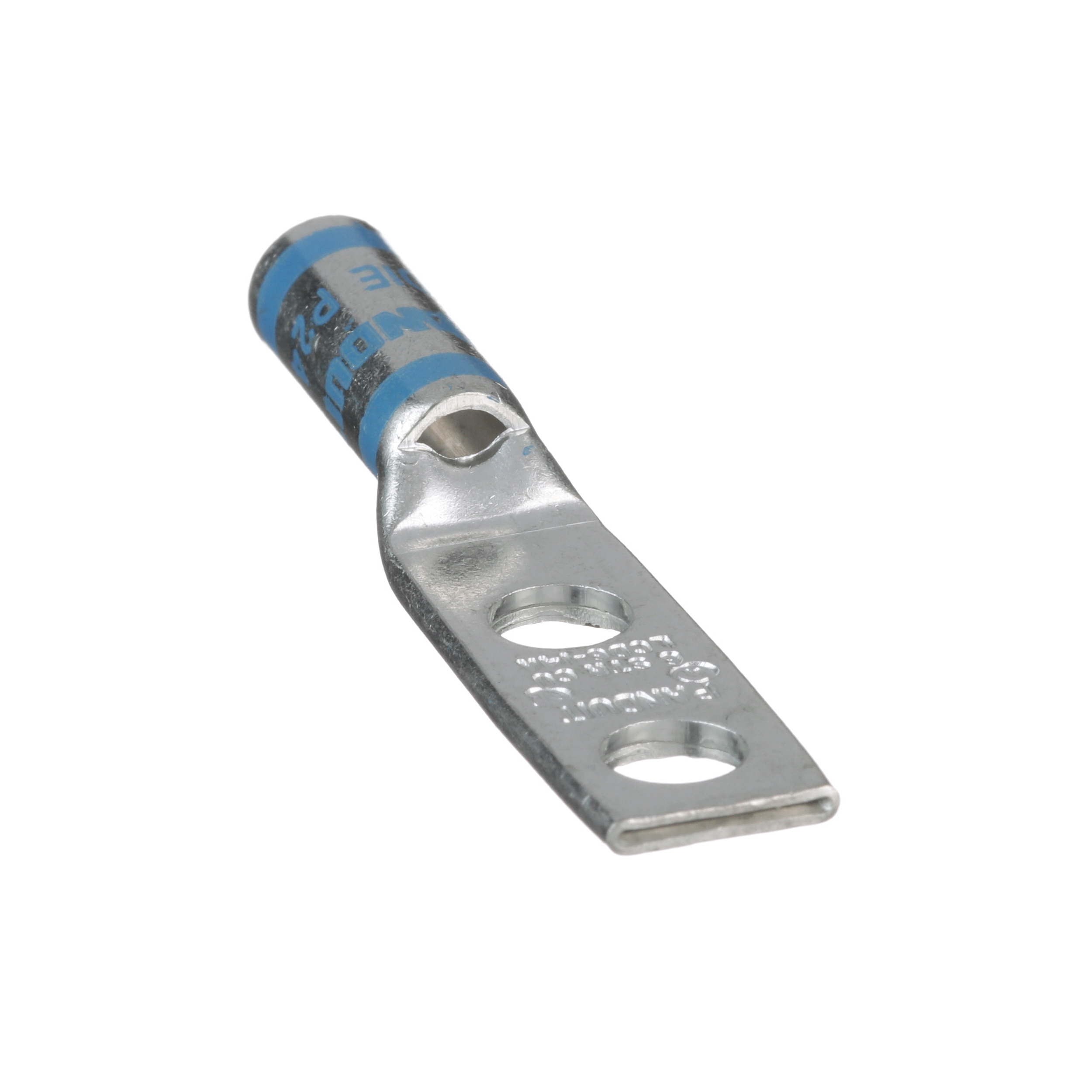

PANDUIT® Code conductor two-hole standard barrel lug with inspection window to visually assure full conductor insertion. Color-coded barrels marked with specified competitor die index numbers for proper crimp die selection. Tin-plated to inhibit corrosion.

Technical Information

Angle
Straight
Barrel Length
0.81 in
Barrel Type
Standard, Straight
Cable Size
AWG
Conductor Size
6 AWG
Material
Copper
Number of Holes
2
Size
#6 AWG Code
Standard
ANSI C-73
Stud Size
1/4 in
Tongue Thickness
0.08 in
Tongue Type
Standard
Tongue Width
0.48 in
Type
Type LCD

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983383108
Color
Olive, Orange, Royal Blue and Yellow
Finish
Tin Plated
GTIN
00074983383108
Product UPC
07498338310

Dimensions

Outer Diameter
0.31 in
Overall Length
2.24 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
