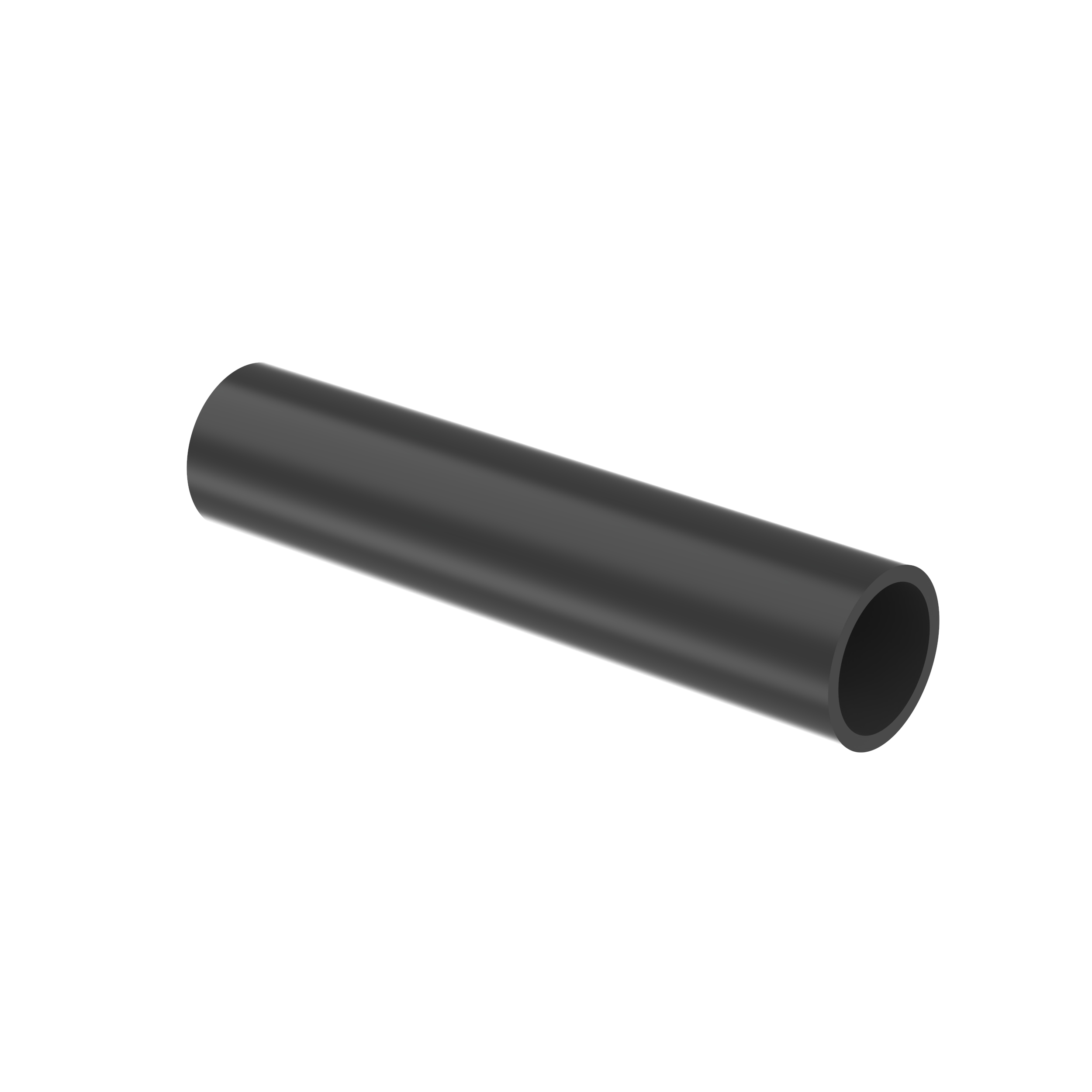

Product image for PANDUIT HST1.1-48-5Y HEATSHRINK #2G- 4/0 THICK WALL 48"L
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT HST1.1-48-5Y HEATSHRINK #2G- 4/0 THICK WALL 48"L

Manufacturer: Panduit | Catalog # HST1.1-48-5Y | Electrozad South Part # 26191
$56.25 /ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual
The HST1.1-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90°C continuous use. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1.1" (27.9 mm) dia. 48" (1219.2 mm) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-55 to 110 degrees C
Type
Flame Retardant

Packaging

Package Qty
5

Manufacturer Information

Brand
Panduit
Sub Brand
Wet-Shrink™

General Product Info

12-Digit UPC
074983107315
Color
Black
GTiN
00074983107315
Product UPC
07498310731

Dimensions

Inside Diameter
9.5 mm
Outside Diameter
27.9 mm
Overall Length
4 ft
Thickness
3 mm

Certifications & Compliance

Country of Origin
Canada
