SIED HFC364N DISCONNECT 200A 600V FUSIBLE SAFETY SWITCH NEMA1 SOLID NEUTRAL FUSIBLE SAFETY SWITCH | Electrozad South

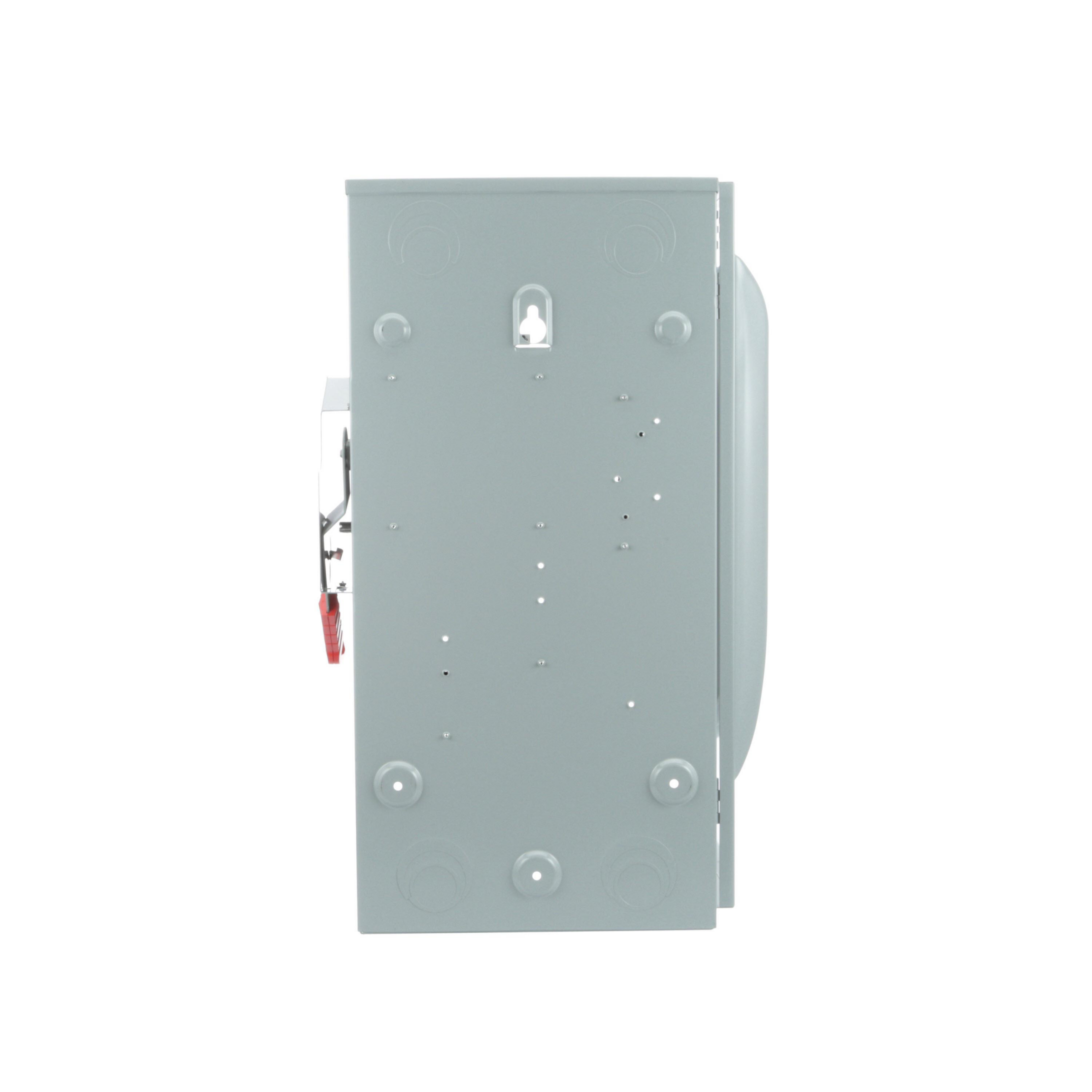

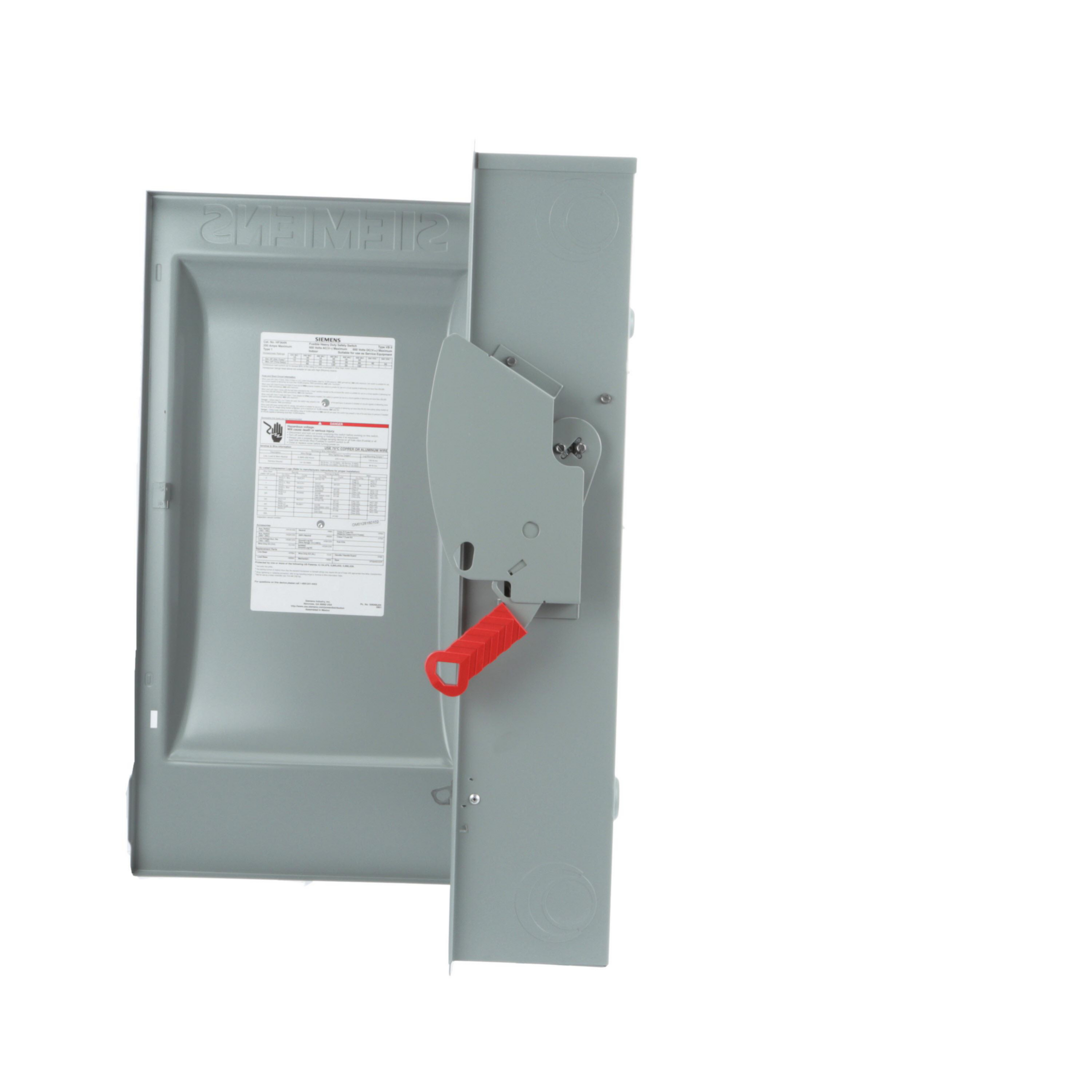

Product image for SIED HFC364N DISCONNECT 200A 600V FUSIBLE SAFETY SWITCH NEMA1 SOLID NEUTRAL FUSIBLE SAFETY SWITCH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SIED HFC364N DISCONNECT 200A 600V FUSIBLE SAFETY SWITCH NEMA1 SOLID NEUTRAL FUSIBLE SAFETY SWITCH

Manufacturer: Siemens Distribution | Catalog # HFC364N | Electrozad South Part # 263709
$1,172.93 /ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page

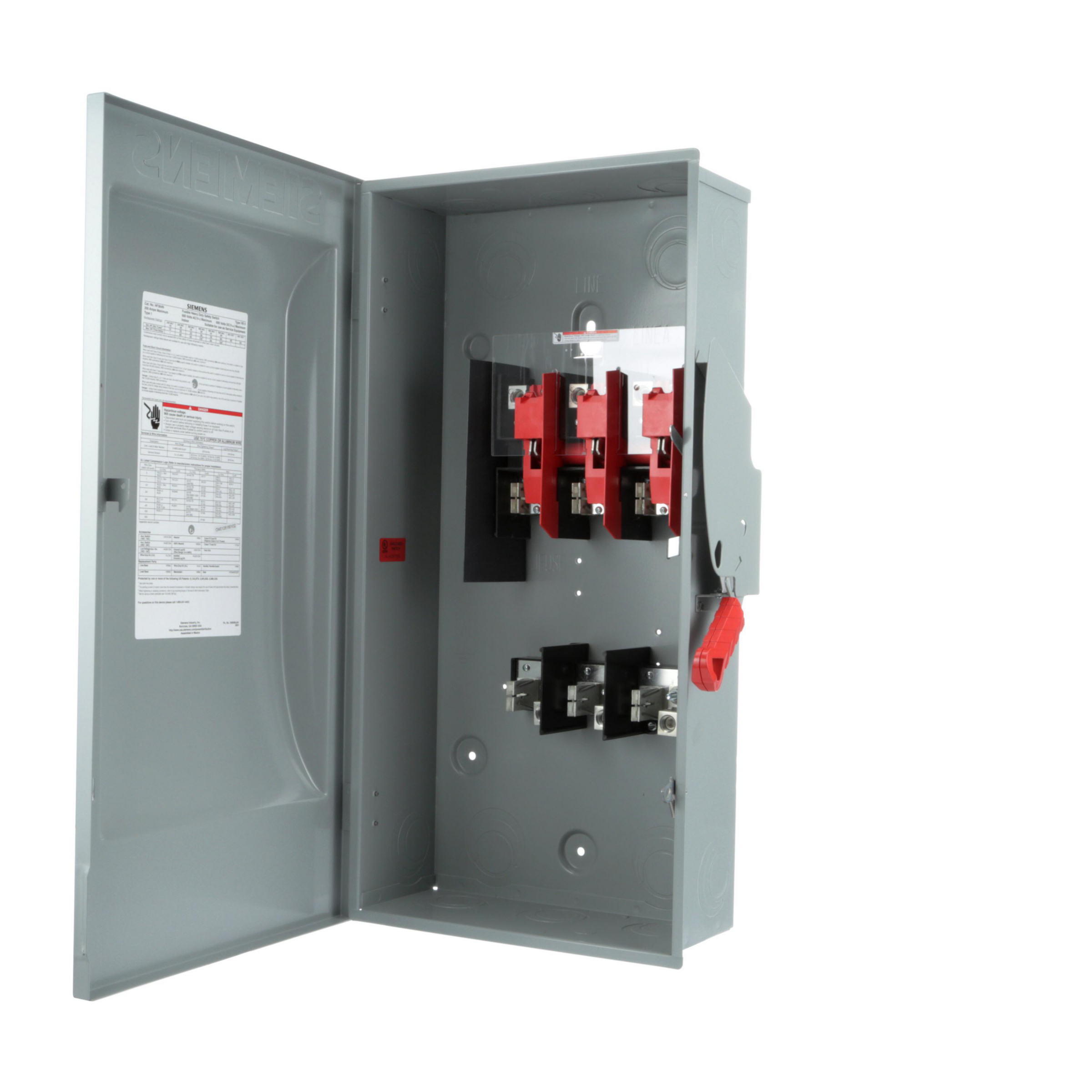

Type-1 Heavy duty safety switch with quick-make and break switching action. Double break visible blade design. Highly visible ON/OFF indication. Rugged installer friendly enclosure design. Modular design allows quick and easy replacement of parts. Front removable lugs which can easily be converted to copper body or compression type lugs. Defeatable dual cover interlock.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
200 A
Applications
For Indoor use
Connection Type
Screw
Enclosure
NEMA1
Load Rating
4 W
Material
Steel
Mounting Type
2 or 3 Point Hole
Number of Poles
3
Number of Wires
4
Operating Cycles
8000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Enclosed, Fused, Single Throw
Wattage
4 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643510869
GTIN
00783643510869
Housing Material
Steel
Product UPC
78364351086
Weight
7.496 lb

Dimensions

Height
0.866 in
Length
16.850 in
Width
15.118 in

Certifications & Compliance

Country of Origin
Mexico
