Pan-Lug™ LCA300-12-X Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCA300-12-X | Electrozad South Part # 264140
$2,638.41 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

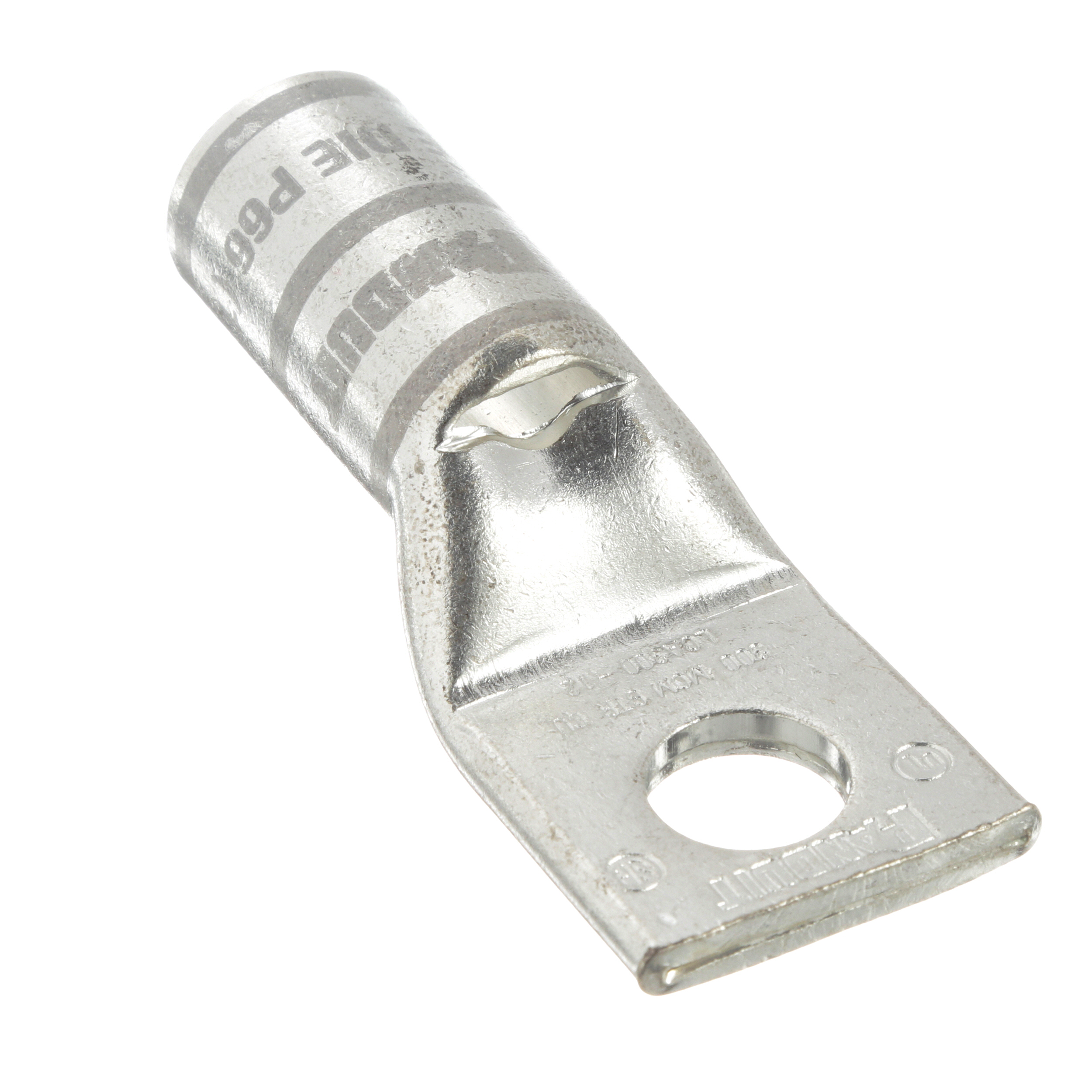

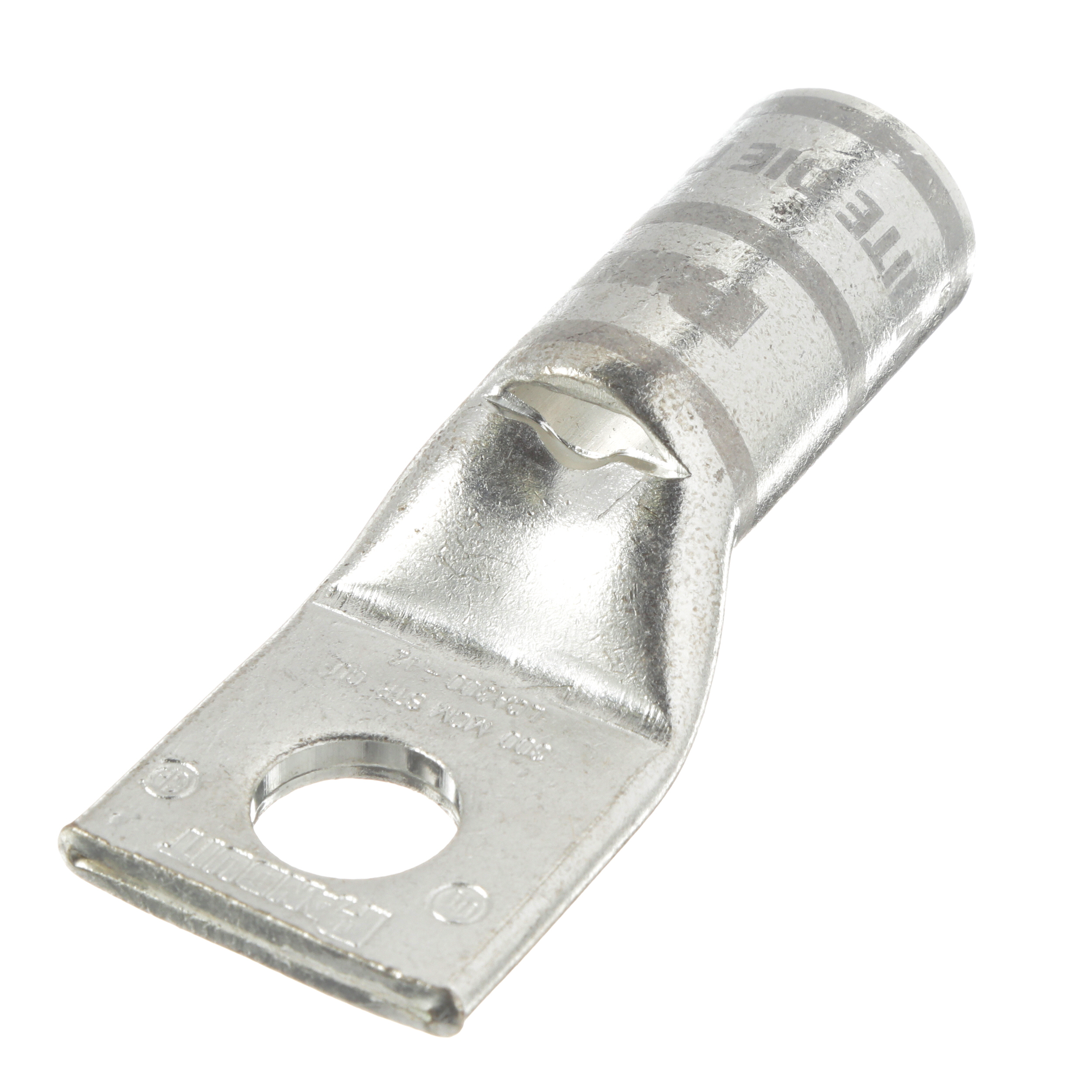

One-hole, standard barrel with window lug, 300 kcmil cable, 1/2 stud hole.

Technical Information

Angle
Straight
Barrel Length
1.44 in
Barrel Type
Standard with Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
300 kcmil Code
Stud Size
0.5 in
Tongue Thickness
0.16 in
Tongue Type
Standard
Tongue Width
1.19 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900503
Color
White
GTIN
00074983900503
Product UPC
07498390050
UNSPSC
39121405

Dimensions

Overall Length
3.05 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
