Lug mechanical copper 14AWG

Manufacturer: Panduit | Catalog # CLMAR2/0-14-Q | Electrozad South Part # 264385
$3,160.77 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

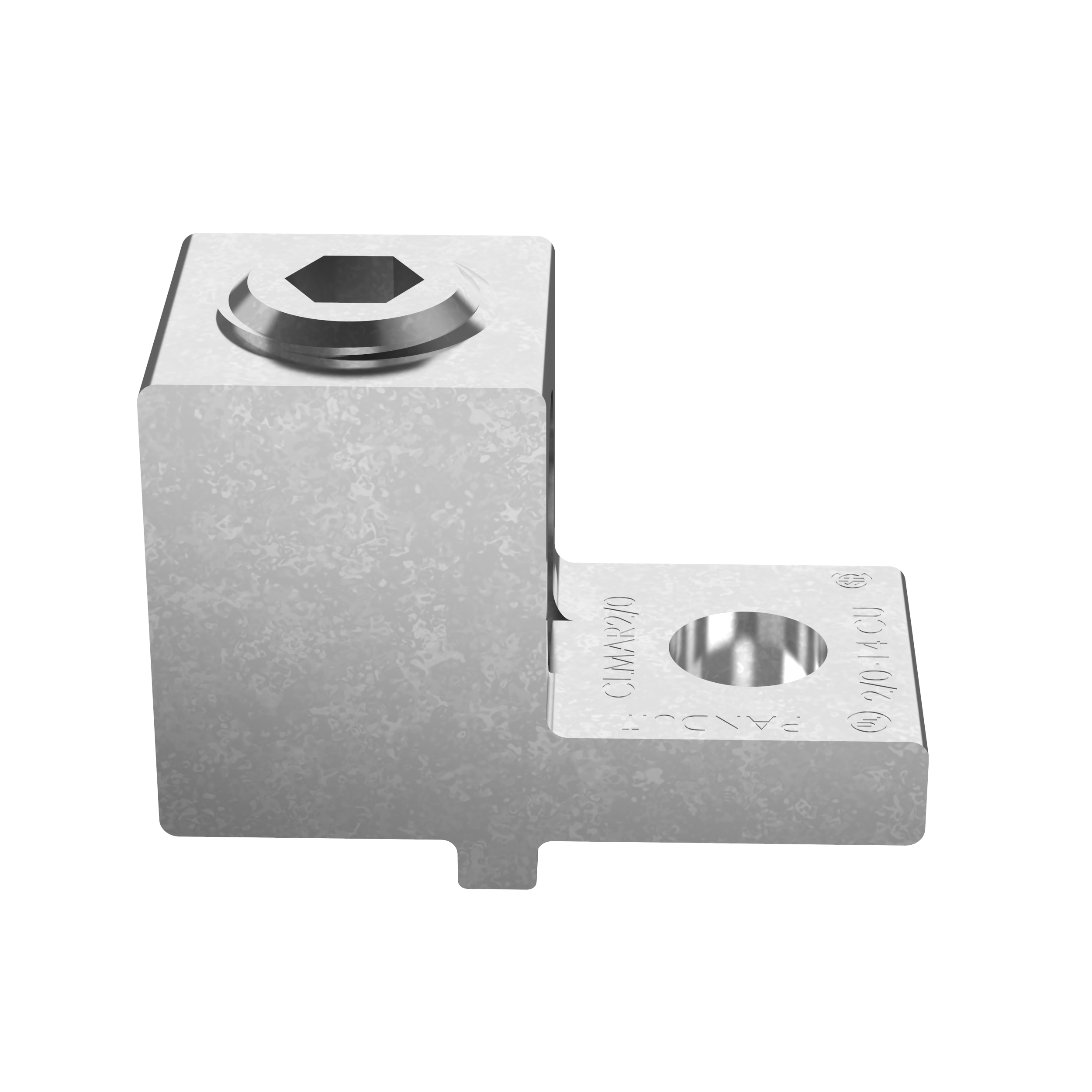

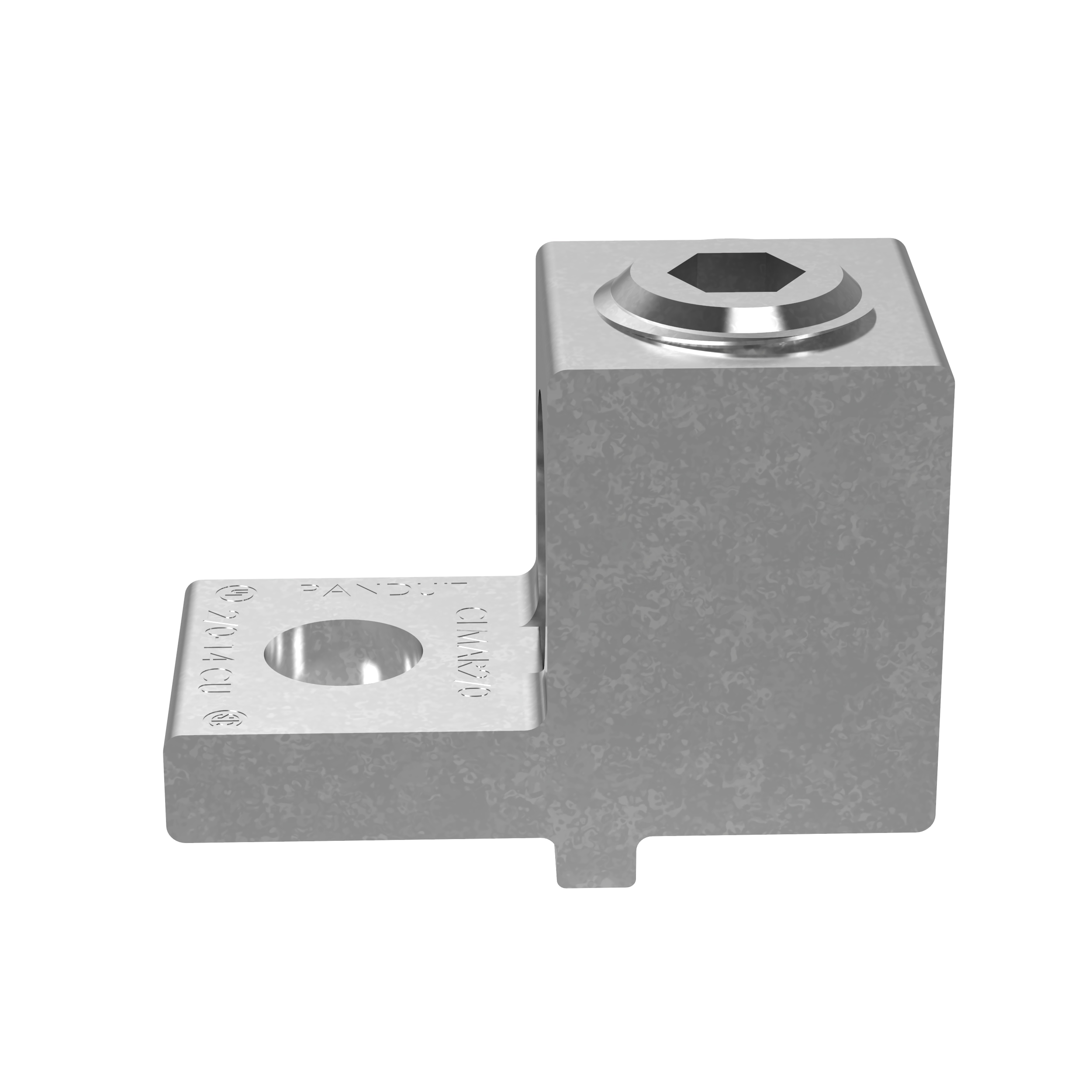

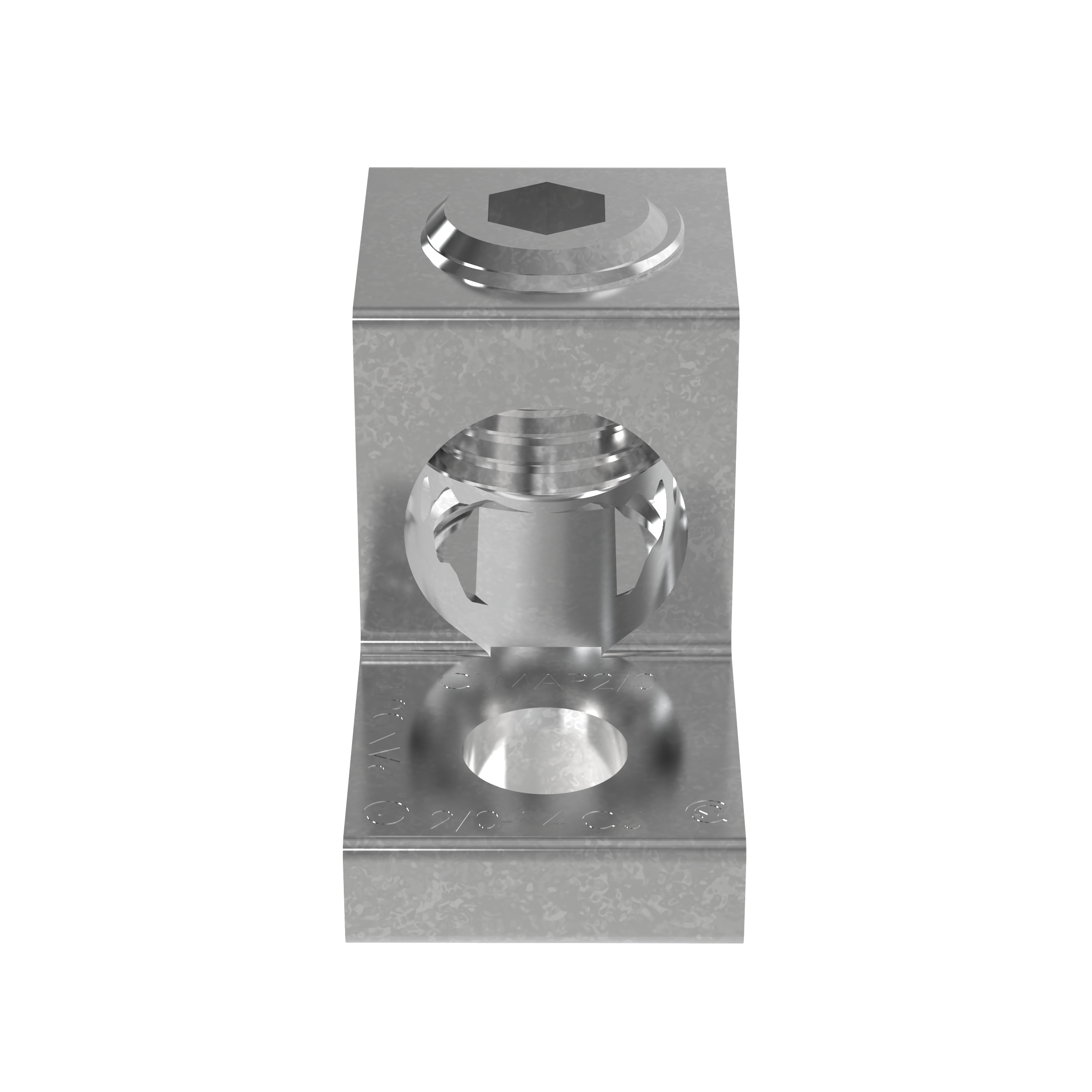

Tin-plated copper mechanical lug with anti-rotational feature, 14 to 2/0 AWG.

Technical Information

Applications
For Ground Conductor
Bolt Size
6.4 mm
Conductor Size
2/0-14 AWG
Conductor Type
Copper
Material
Copper
Number of Holes
NA
Standard
CSA,E2186,UL
Stud Size
1/4 in
Tongue Thickness
0.19 in
Tongue Type
Straight
Type
Anti-Rotational

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983402205
Finish
Tin Plated
GTIN
00074983402205
Product UPC
07498340220

Dimensions

Height
0.87 in
Overall Length
1.2 in
Width
15.2 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
