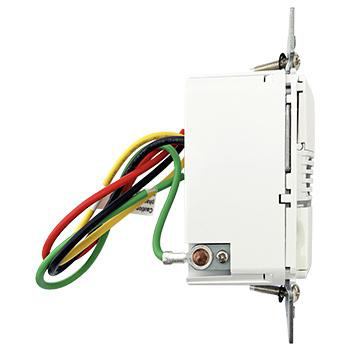

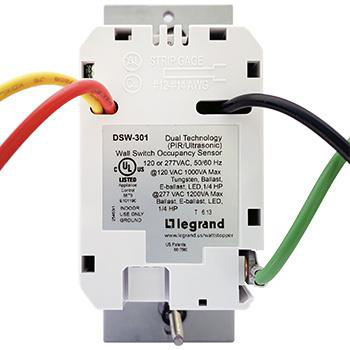

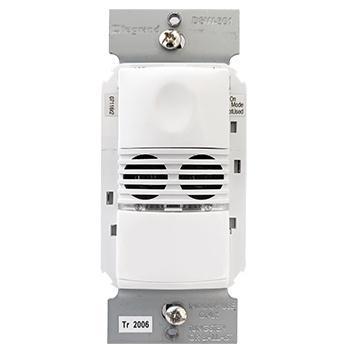

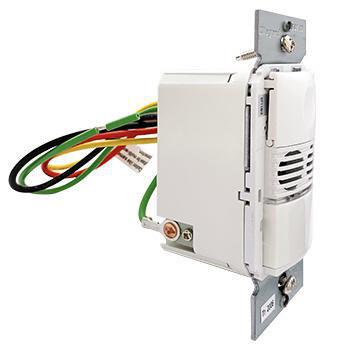

Product image for Sensor occupancy DSW-301 white 120/277VAC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Sensor occupancy DSW-301 white 120/277VAC

Manufacturer: Watt Stopper | Catalog # DSW-301-W | Electrozad South Part # 264886
$127.76 /ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch

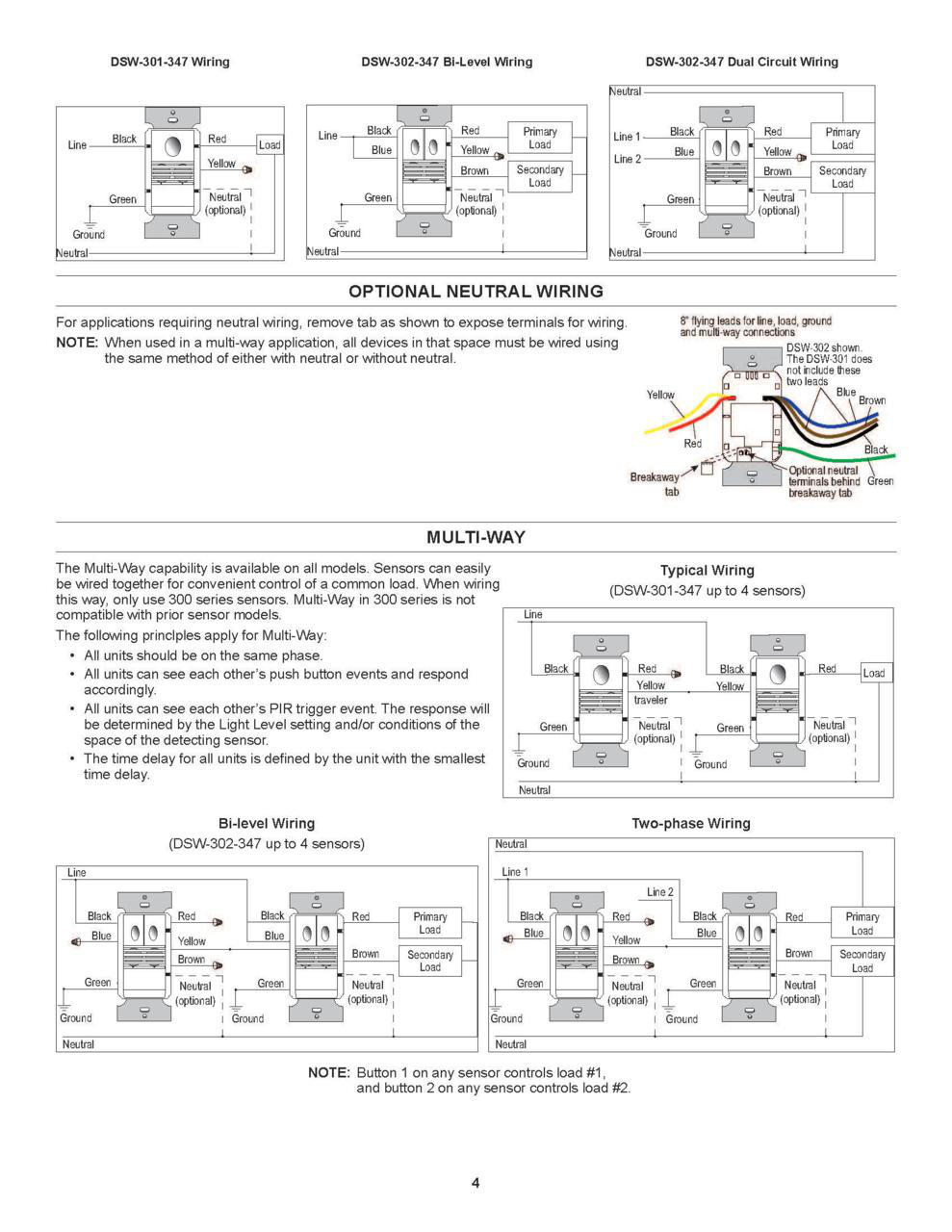

Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL L WIRING DIAGRAM URL
WattStopper® Dual technology wall switch occupancy sensor turns lights off and on based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. Replaces existing wall switches and fits behind a standard decorator wall plate. High sensitivity and dense coverage for exceptional performance. Allows multi-way control from one of up to four control locations. colour-matched lens and low profile for appealing design. Optional neutral connection with break off tab to expose neutral terminals. Defaults to manual-on operation for maximum energy savings. Load: 0 to 1500 W ballast and LED, 1/6 HP.

Technical Information

Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Connection Type
Wired
Indicator
True
Load Rating
1200 W @ 240/277 VAC, 1000 W @ 120 VAC
Material
Plastic
Mounting Type
Surface
Number of Connections
4.0
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor, Push
Type
Dual Technology, Wall Switch
Wattage
1200 W

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935444
Color
White, Gloss
Finish
Matte
GTIN
00754182935444
Product UPC
75418293544

Dimensions

Depth
1.83 in
Height
2.73 in
Length
2.73 in
Width
1.76 in

Certifications & Compliance

Country of Origin
China
