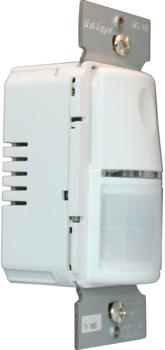

Sensor occupancy WS-301 wall switch 347VAC white

Manufacturer: Watt Stopper | Catalog # WS-301-347-W | Electrozad South Part # 264893
$81.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
WattStopper® Passive infrared (PIR) wall switch sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate. 180.. coverage, maximum of 900 sq-ft shallow (1 inch) back housing and flying leads for easy installation. Built-in light level sensor. Optional neutral connection with break off tab to expose neutral terminals. Button provides positive tactile feedback. Load: 0 to 1500 W ballast and LED, 1/6 HP.

Technical Information

Applications
For Commercial Use, Offices, Conference Rooms, Lunch/Break Rooms
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Material
Plastic
Mounting Type
Surface/Wall/Strap
Number of Connections
4.0
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
900 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor
Temperature Rating
35 degrees C
Type
Wall Switch, Indoor

Manufacturer Information

Brand
WattStopper
Sub Brand
Wattstopper

General Product Info

12-Digit UPC
754182936069
Color
White
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Glossy
GTIN
00754182936069
Product UPC
75418293606
