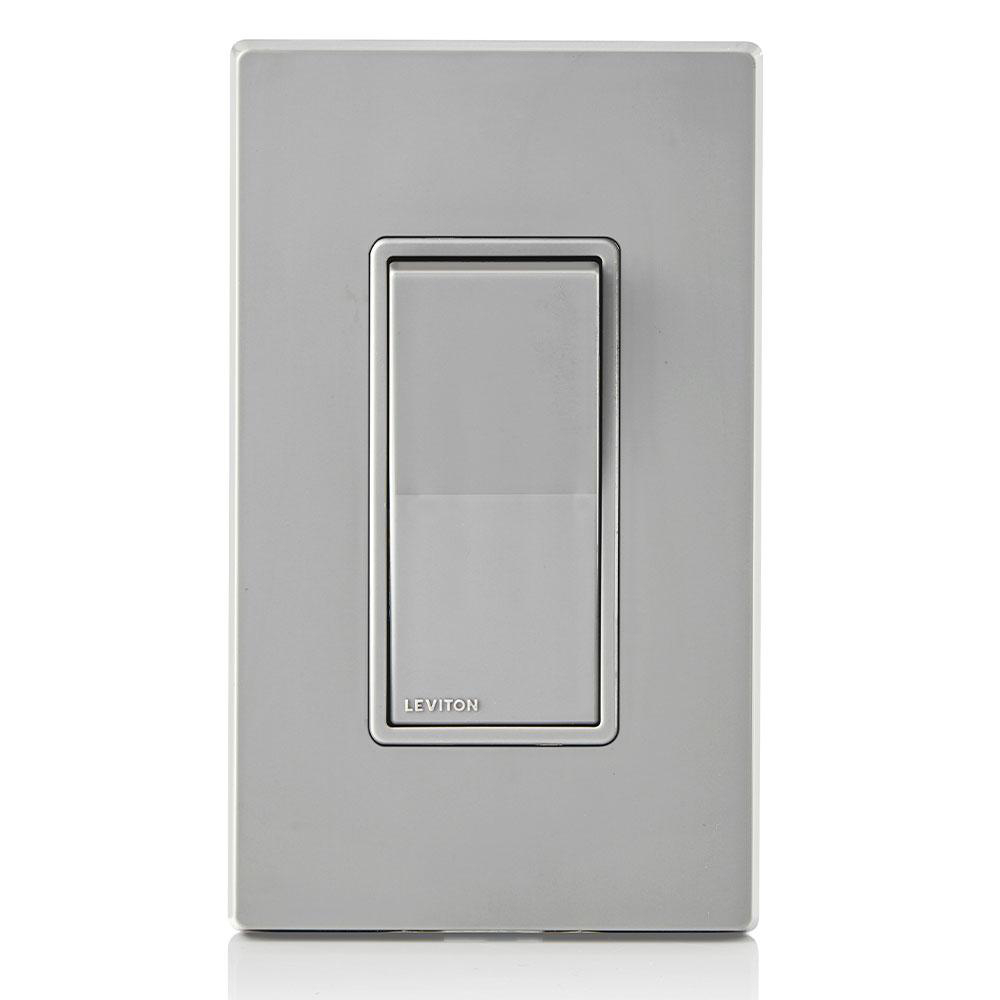

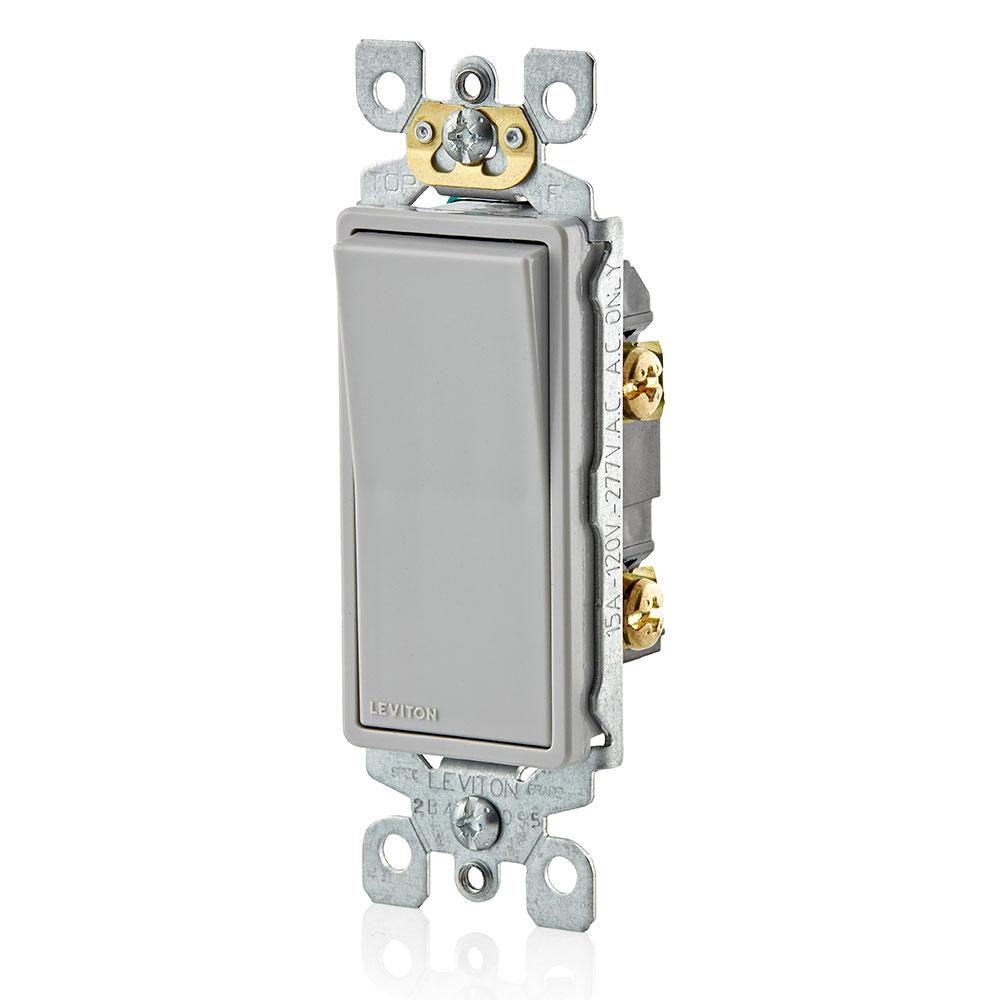

LEVITON 5601-P2G SWITCH 15A 120V 277V 1POLE DECORA ROCKER GREY QUICKWIRE & SIDE WIRED

Manufacturer: Leviton Manufacturing | Catalog # 5601-P2G | Electrozad South Part # 265099
$1.48 /ea
ea
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Decora® designer rocker switch are sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care ensuring years of trouble-free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Their sturdy construction and dependable performance are everything you...d expect from the pre-eminent switch maker.

Technical Information

Actuator
Rocker
Amperage
15 A
Applications
Residential
Body Material
Thermoplastic
Connection Type
Quickwired Push-In,Side Wired
Contact Rating
120/277 V
Grounding
Grounding Strap With Clip
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1
Operating Temperature
-40 To 120 degrees C
Size
4.200 H x 1.399 W x 1.453 D IN
Standard
CSA,UL
TC Connection
Quickwired Push-In;Side Wired
Temperature Rating
-40 to 120 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Rocker Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477404713
Color
Gray
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477404713
Product UPC
07847740471

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
USA
