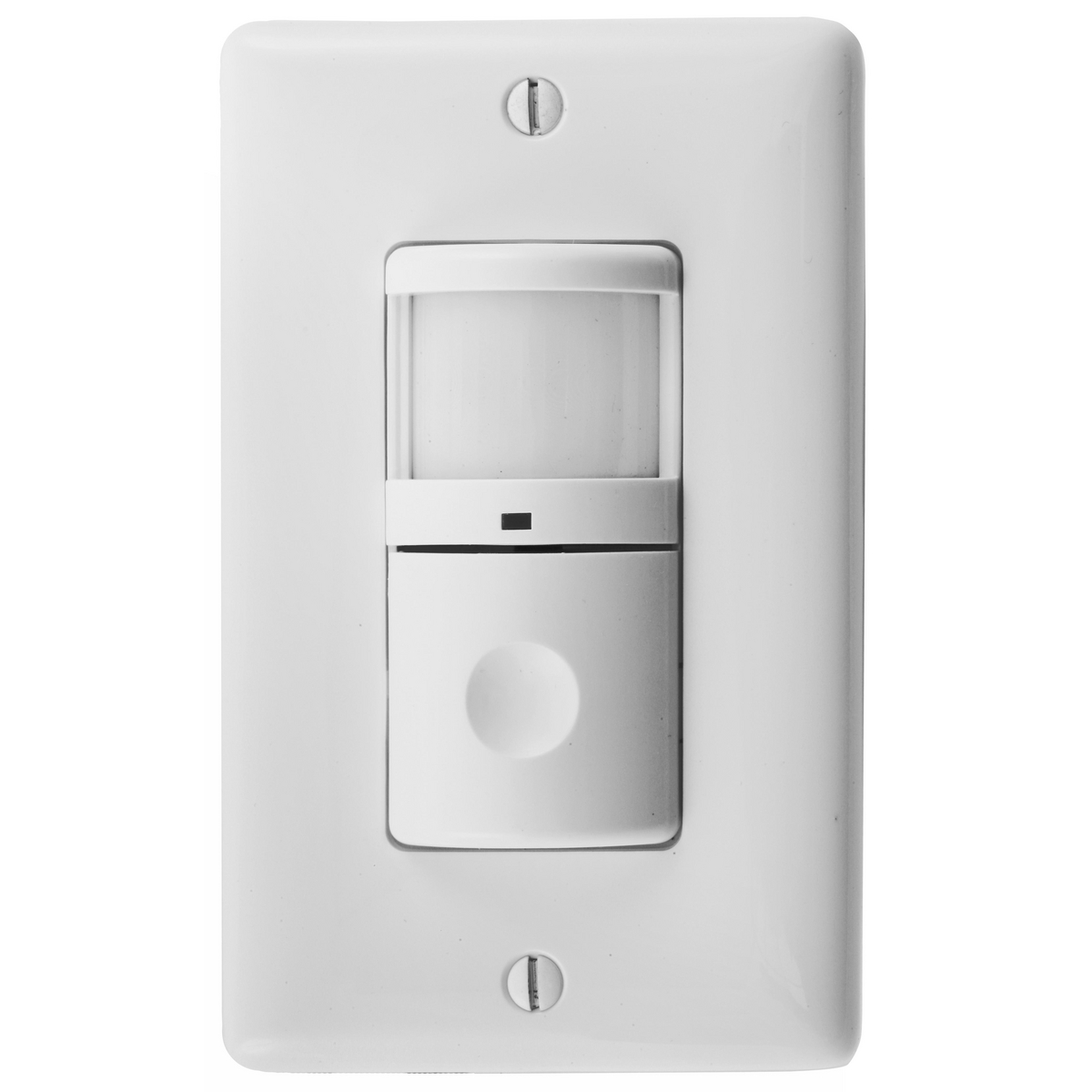

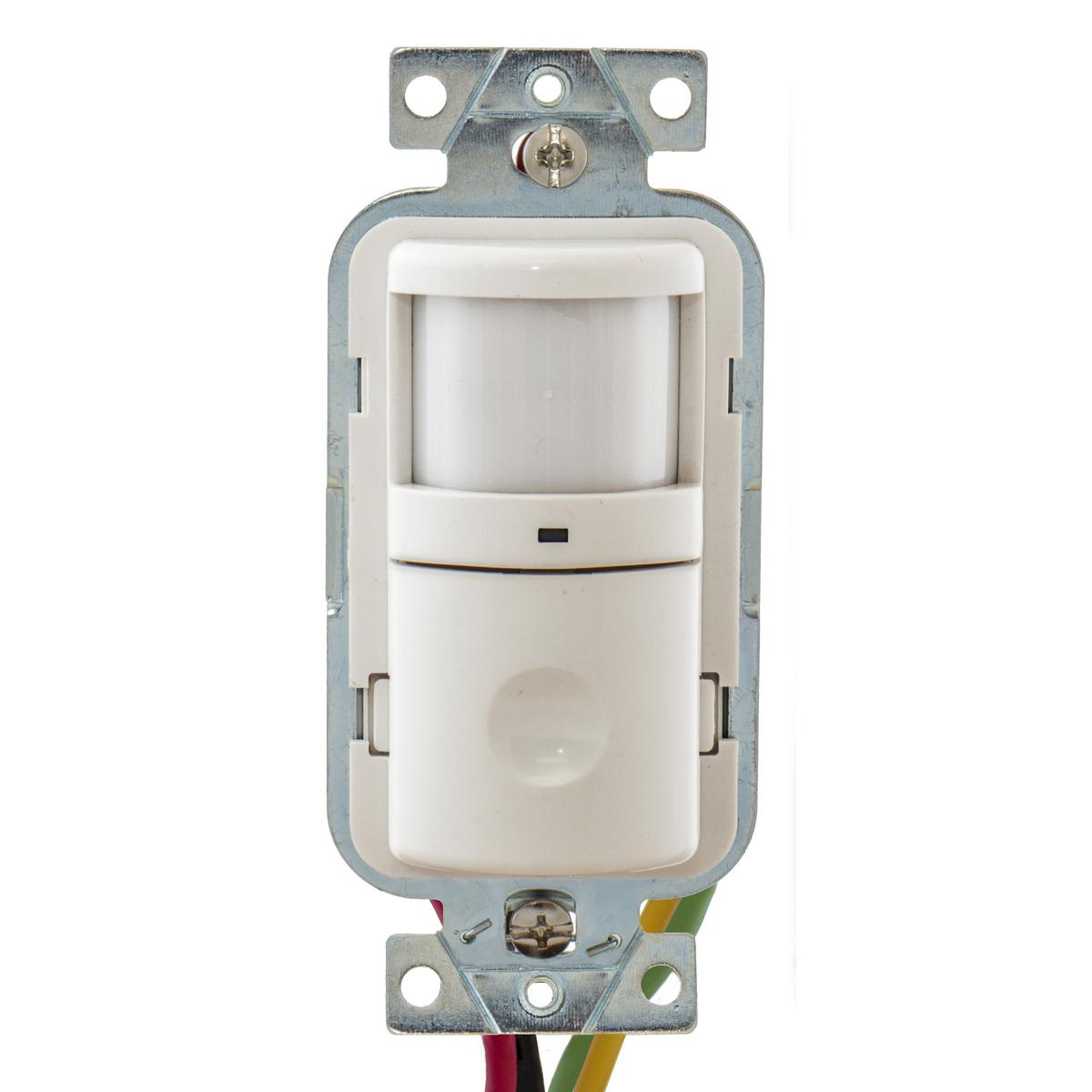

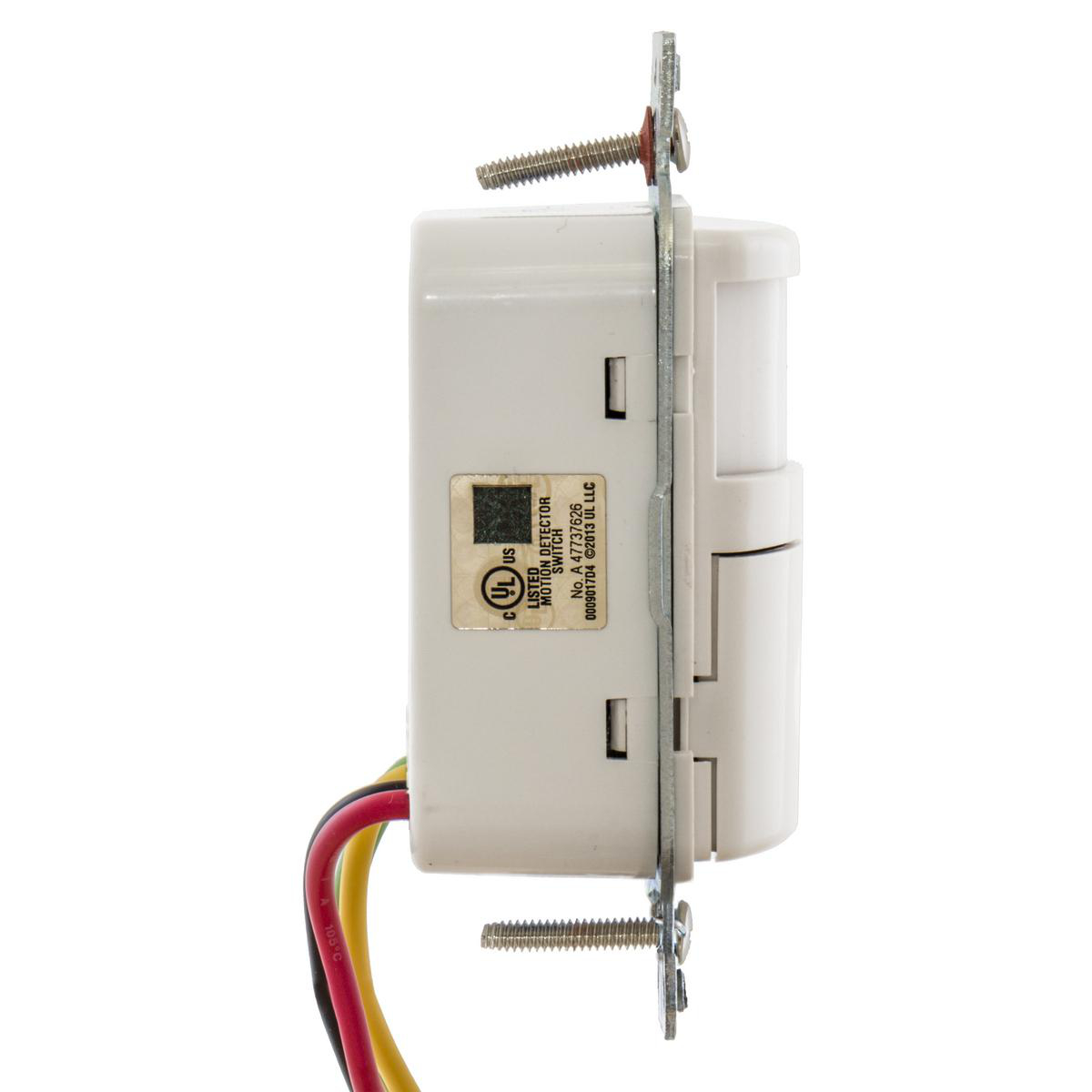

Switch wall mount 120/277V standard white

Manufacturer: Hubbell Wiring Devices | Catalog # WS2000W | Electrozad South Part # 265636
$158.27 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Switch wall mount, manual adjusting; selectable manual/auto-on operation; dual-voltage 120/277V; 3-way capable.

Technical Information

Applications
For Single Circuit
Material
ABS
Mounting Type
Wall, Screw
Operating Temperature
11 degrees C
Sensing Range
1000 Square Feet
Sensor Type
Passive Infrared
Size
4.15 in x 1.82 in x 1.62 in
Standard
CULus,UL773A
Temperature Rating
0 degrees C to 40 degrees C
Type
Standard, Adjustable Sensitivity
Voltage
120/277 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
H-Moss®

General Product Info

12-Digit UPC
783585256290
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585256290
Product UPC
78358525629

Dimensions

Height
1.62 in
Length
4.15 in
Width
1.82 in

Certifications & Compliance

Country of Origin
Taiwan
Overview
  • Matching wallplate included
  • Designed for use on 120 or 277V AC circuits, no neutral required, fast retrofits. Built in photocell prevents lights from turning ON with sufficient natural light.
  • 3-Way capable
