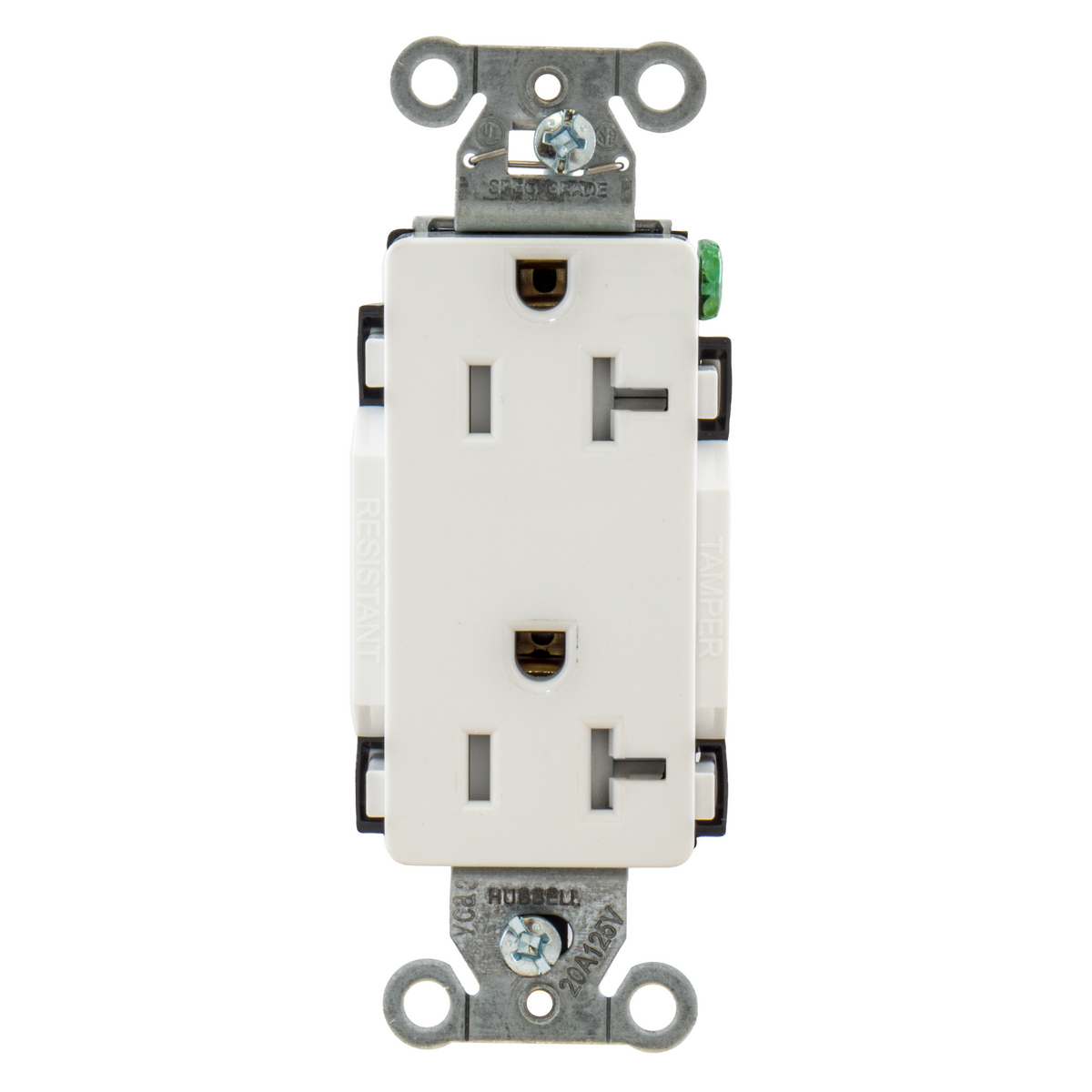

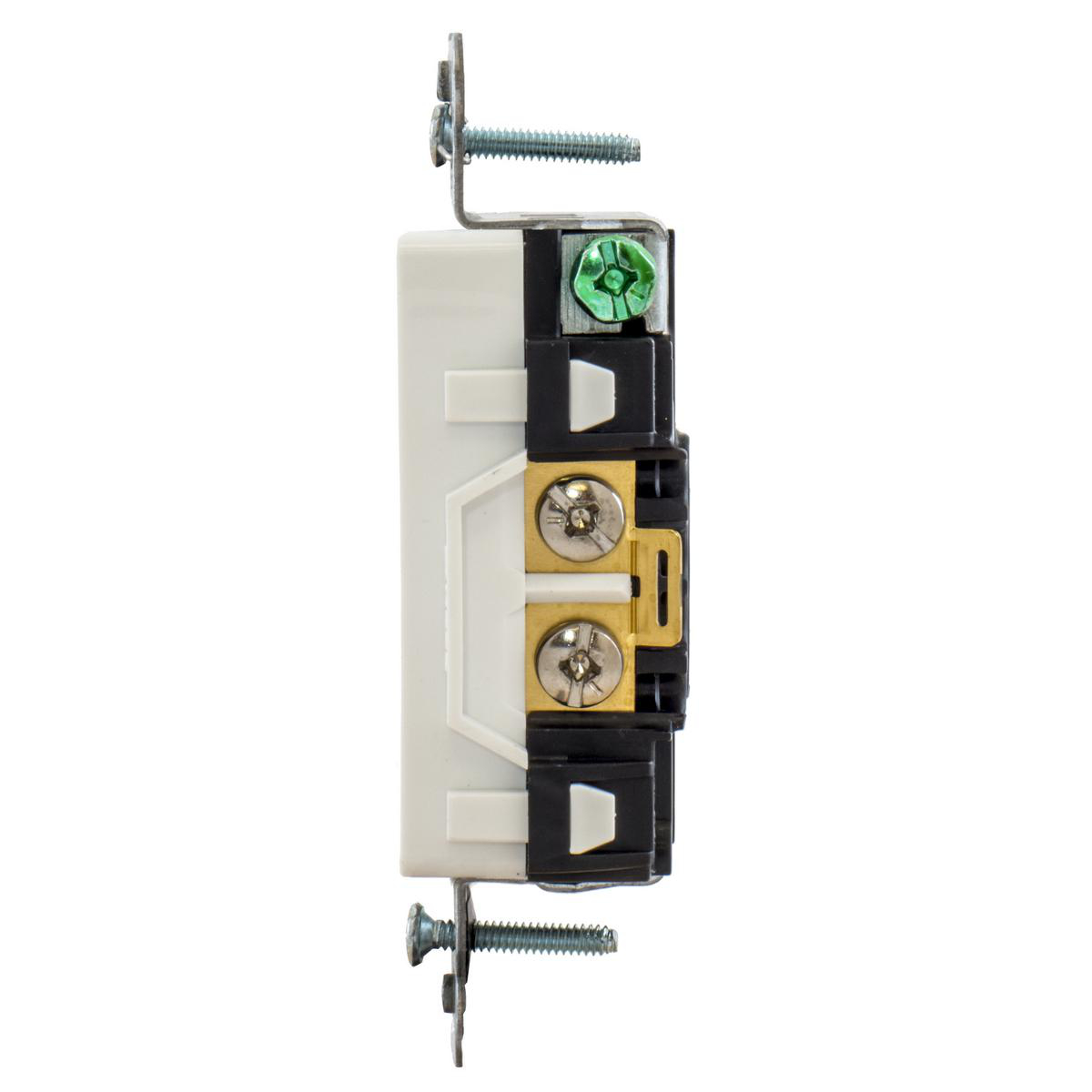

Receptacle duplex flush nyl 2P3W 20A 5-20R white

Manufacturer: Hubbell Wiring Devices | Catalog # DR20WHITR | Electrozad South Part # 266028
$4.51 /ea
pc
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell-Pro™ specification grade commercial receptacle made of smooth nylon face with 2 pole 3 wire grounding, 125 V, back and side wired, decorator face shape, straight blade, styleLine decorator Series, tamper resistant.

Technical Information

Amperage
20 A
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial/Specification
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tamper Resistant?
Yes
TC Connection
Back and Side Wired
Type
Decorator Tamper-Resistant, Self Grounding
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
12 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585144443
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTIN
00783585144443
Product Series
Commercial Specification Grade
Product UPC
78358514444
Weight
0.15 lb

Dimensions

Height
1.29 in
Length
3.28 in
Width
1.14 in

Certifications & Compliance

Country of Origin
China
Overview
  • Smooth face
  • Tamper-resistant shutter complies with national electrical code requirements
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
