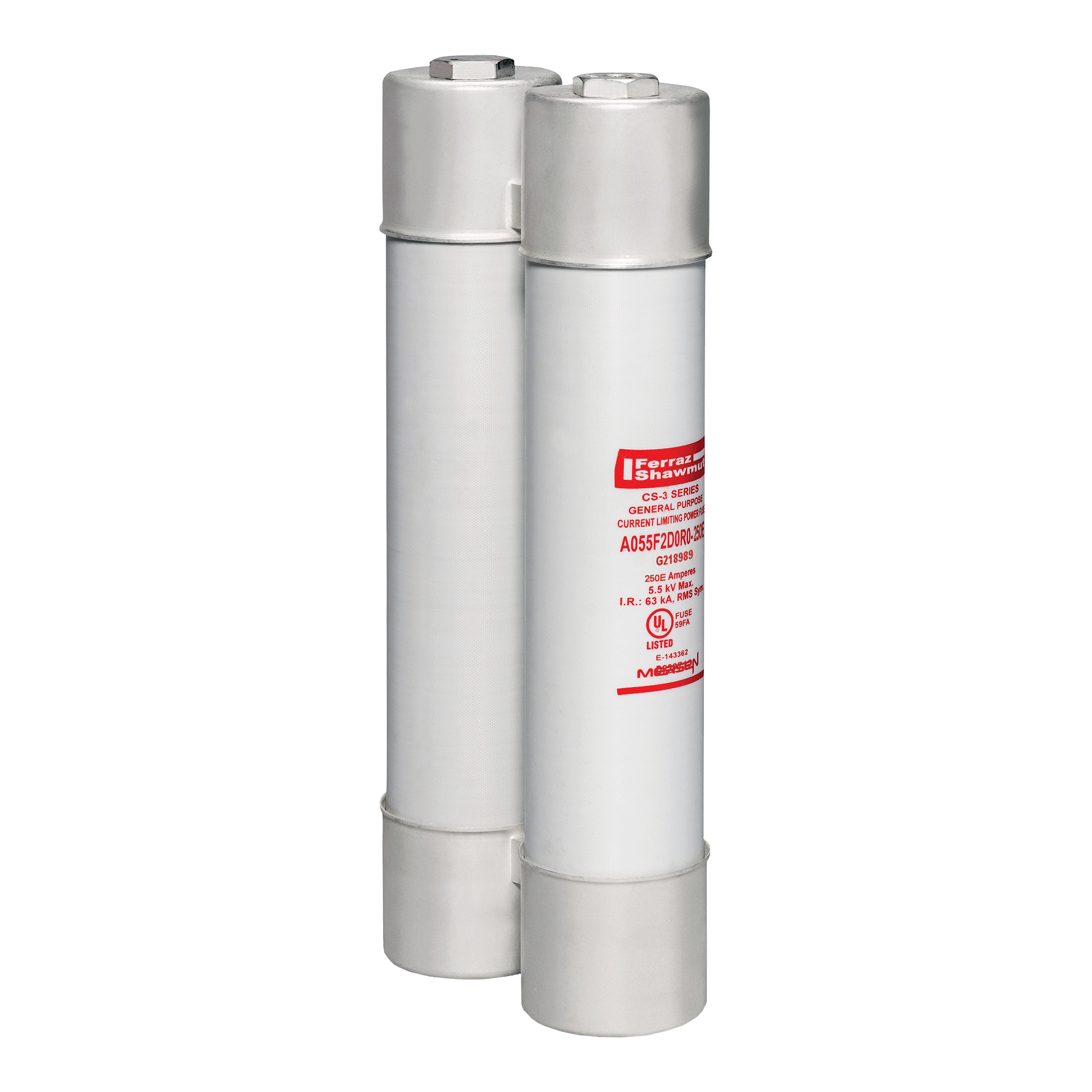

MERSEN A055F2D0R0-250E FUSE CS3 250E AMP E-RATED 5.5KV MAX

Manufacturer: Ferraz Shawmut Mersen | Catalog # A055F2D0R0-250E | Electrozad South Part # 266212
$4,575.21 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Technical Information

Amperage
250 A
Applications
Protection for up to 5.5 kV transformers or distribution systems.
Connection Type
Ferrule
Contact Material
Silver-Plated Copper
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
PolyTube
Interrupt Rating
63 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
5500 V
TC Connection
Ferrule
Temperature Rating
80 degrees C
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
Current Limiting, E-Rated
Voltage
5500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001804282
Construction
PolyTube
GTIN
10782001804289
Product UPC
78200180428
Weight
20 lb

Dimensions

Height
6.63 in
Length
15.88 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
