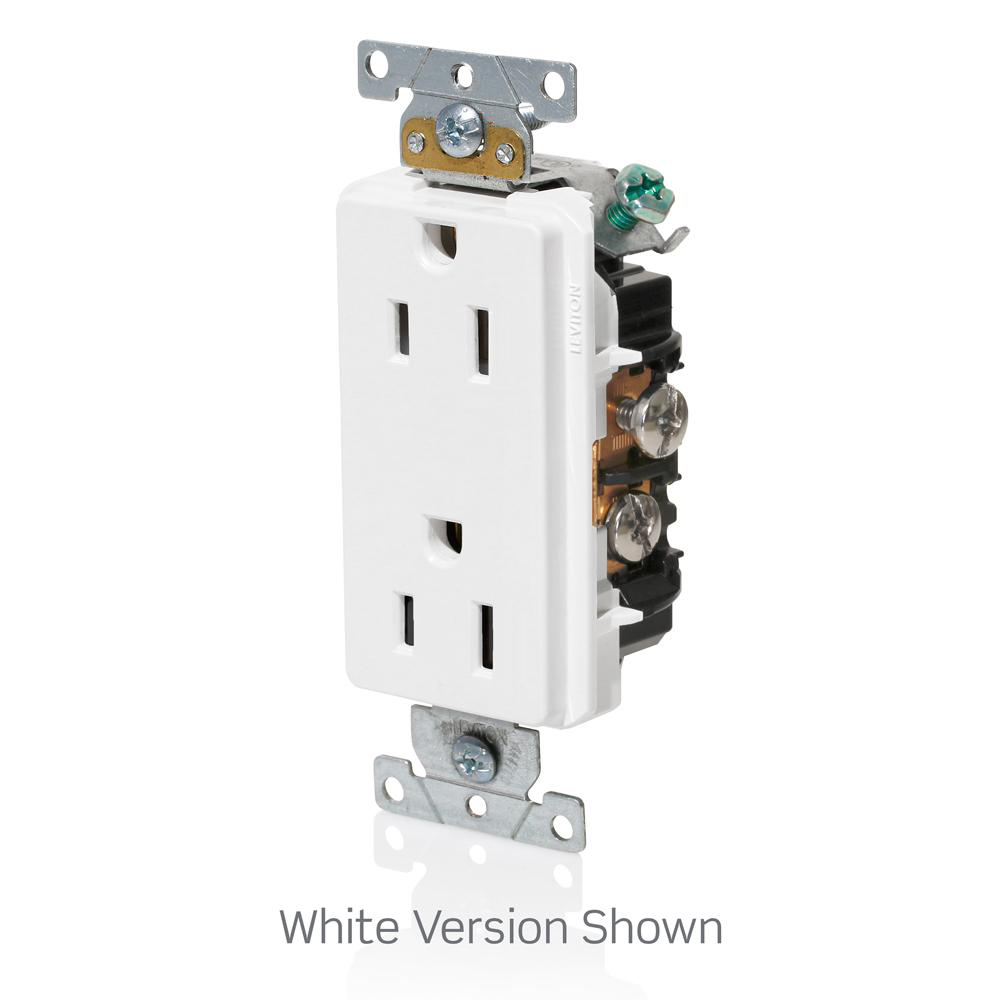

LEVITON 16242-W RECEPTACLE 15A 125V DECORA WHITE DUPLEX SIDE WIRED SELF GROUNDINGI

Manufacturer: Leviton Manufacturing | Catalog # 16242-W | Electrozad South Part # 26789
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet
Levitons line of heavy-duty specification grade receptacle are designed and manufactured to withstand the most demanding environments. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding,Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
60 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Side Wire,Side Wire
Type
Outlet
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477788226
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477788226
Product UPC
07847778822

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,NON-ANCE
Country of Origin
Mexico
