Raceway junction box 1 gang K/O 1/2 or 3/4

Manufacturer: Panduit | Catalog # JBP1DIW | Electrozad South Part # 26816
$23.50 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

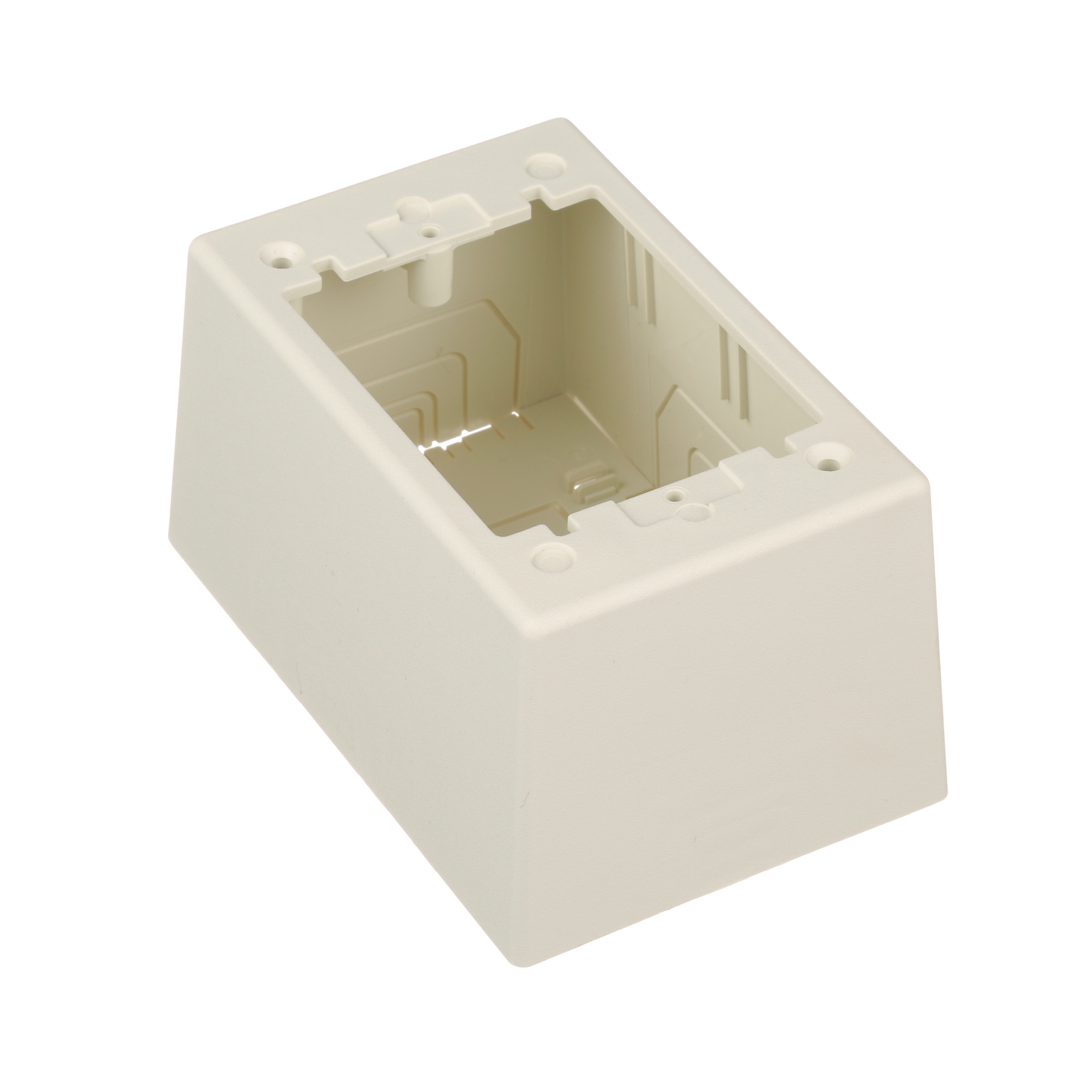

Single gang two-piece screw together deep outlet box. Box accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way® T-45, LD2P10 (when used with JBD1), or LD profile raceway. 5.19L x 3.45W x 2.75H (131.9mm x 87.7mm x 69.8mm). Breakouts for 1/2, 3/4, or 1 diameter conduit.

Technical Information

Applications
NA
Cover Type
NA
Material
PVC
Mounting Type
Front
Number of Gangs
1
Type
Open, Power Rated, 2-Unit, Deep

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983640775
Color
Off-White
GTIN
00074983640775
Product UPC
07498364077

Dimensions

Depth
2.75 in
Height
2.75 in
Length
127.5 mm
Overall Length
5 in
Width
83.3 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
