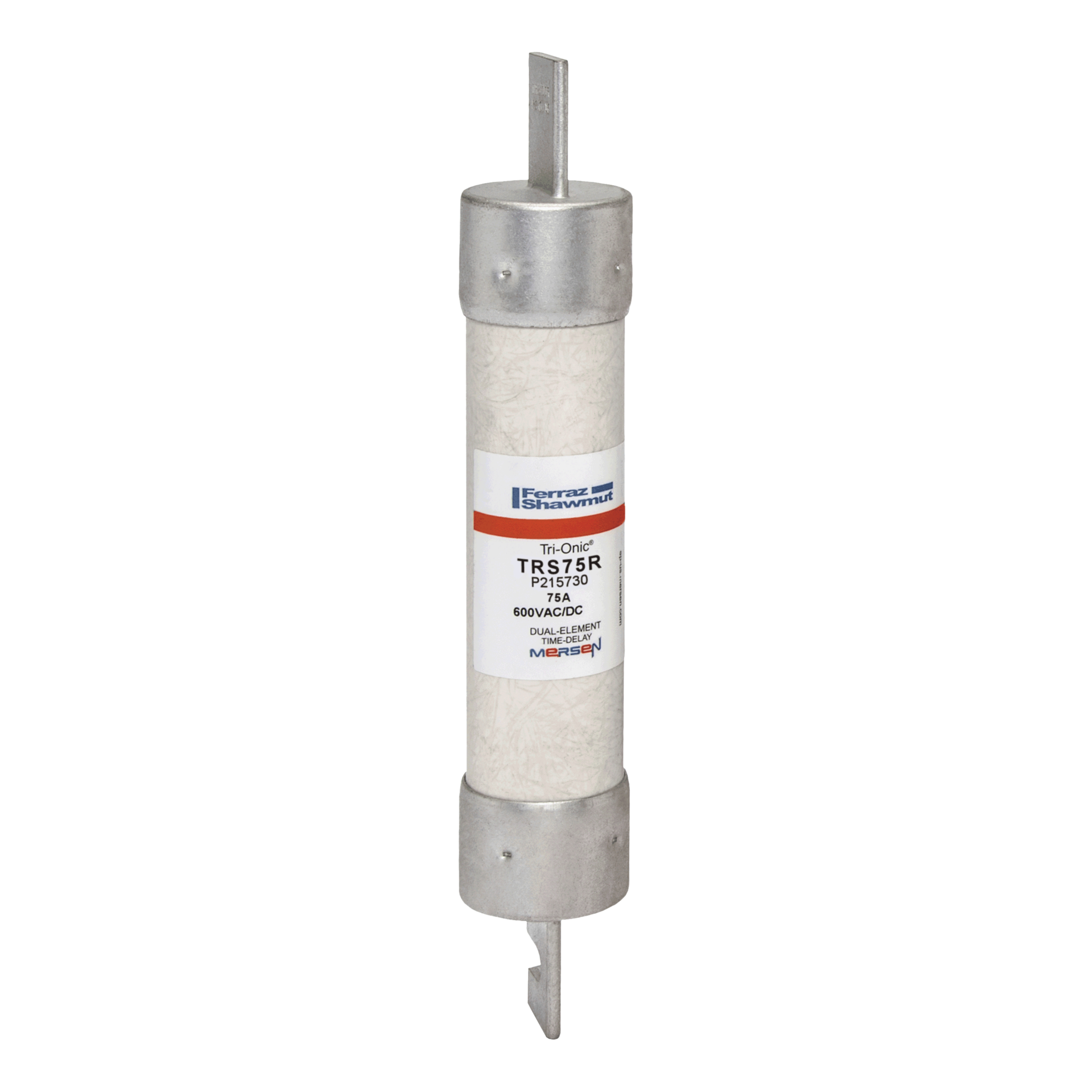

MERSEN TRS75R FUSE HRCI-R 75A 600V TIME DELAY 600V CLASS RK5 TRIONIC

Manufacturer: Ferraz Shawmut Mersen | Catalog # TRS75R | Electrozad South Part # 26890
$32.09 /ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
75 A
Applications
Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Time Delay

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001749088
Class
RK-5
GTIN
30782001749089
Product UPC
78200174908
Weight
0.628 lb

Dimensions

Diameter
1.31 in
Length
7.88 in
