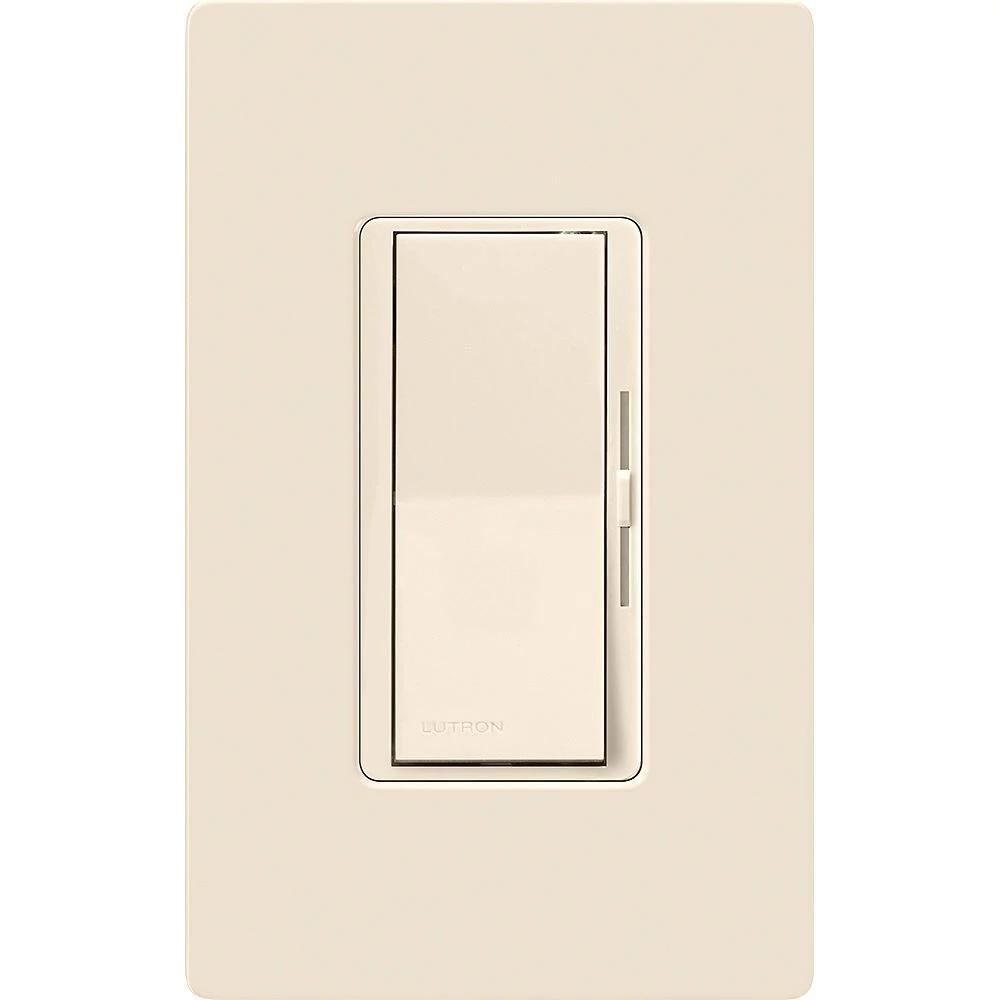

Dimmer 1-pole/3-way for CFL/LED 120V light-almond

Manufacturer: Lutron Dimmers | Catalog # DVCL-153P-LA | Electrozad South Part # 269040
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
DIVA® C.L® Dimmer for CFL, LED, halogen and incandescent dimmable bulbs. Gloss finish. Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening. HED™ Technology: Advanced Lutron® dimming circuitry designed for compatibility with most high efficacy light bulbs. ULR listed to control: dimmable compact fluorescent (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent. low end adjustment to accommodate a wide range of bulbs. 100% factory tested.

Technical Information

Actuator
Paddle Switch
Applications
Lighting Control
Bulb Compatibility
Dimmable CFLs,Dimmable LEDs,Halogens,Incandescents
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Lamp Type
CFL/LED
Material
Metal,Plastic
Max Wattage
150 W
Mounting Type
Wall Box, Flush, Snapper
Number of Poles
1
Operating Temperature
32 To 104 degrees F
Power Rating
600 W
Size
75 in
Standard
CSA,NOM,UL
TC Connection
Wire Leads
Temperature Rating
0 degrees C to 40 degrees C
Terminal Type
Wire Lead
Type
3-Way, 1-Pole
Voltage
120 V
Wattage
600 W

Manufacturer Information

Brand
Lutron
Sub Brand
Diva

General Product Info

12-Digit UPC
027557003049
Color
Light Almond
Environmental Conditions
Indoor Use Only
Finish
Gloss
GTIN
00027557003049
Product UPC
02755700304

Certifications & Compliance

Country of Origin
Mexico
Overview
  • Can be used in single-pole or 3-Way applications with a mechanical switch.
  • Installs in as little as 15 minutes in homes of all ages NO NEUTRAL REQUIRED
  • Works with up to 150-Watt of dimmable LED/CFL bulbs or 600-Watt of incandescent/halogen bulbs
  • Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
  • Provides over 250 lighting levels so you can create the perfect light for any activity
  • Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
  • Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
  • Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
