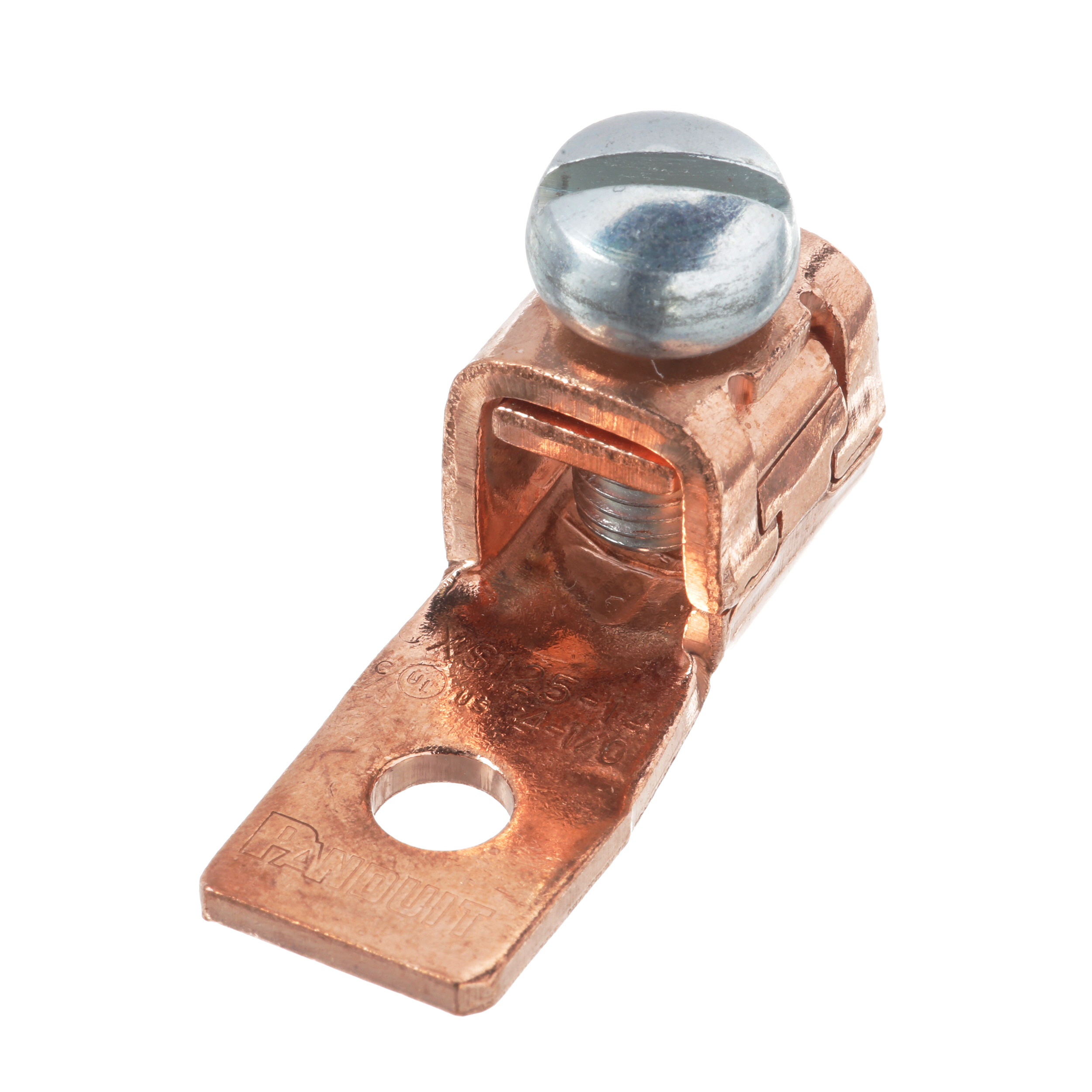

Image thumbnail 1

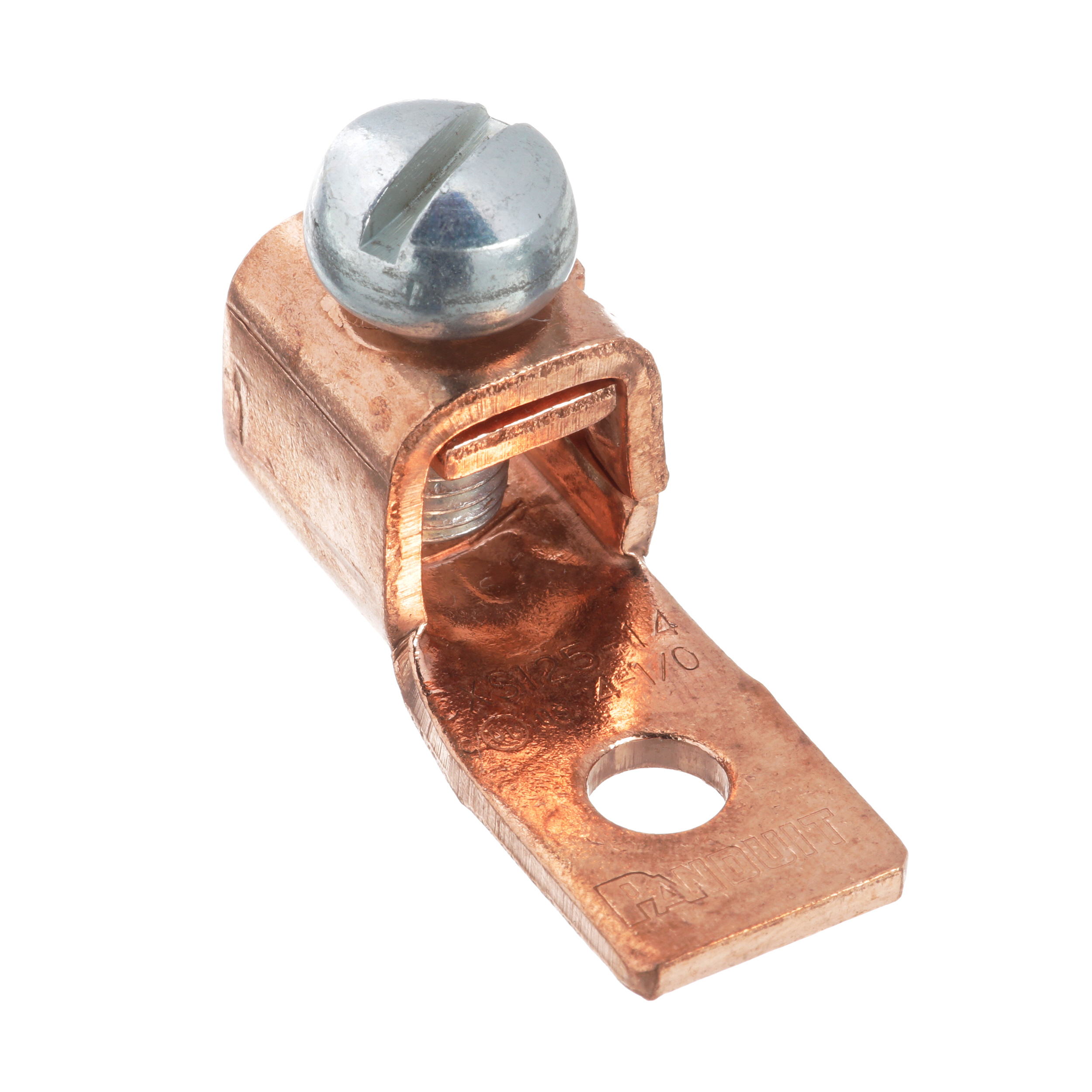

Image thumbnail 2

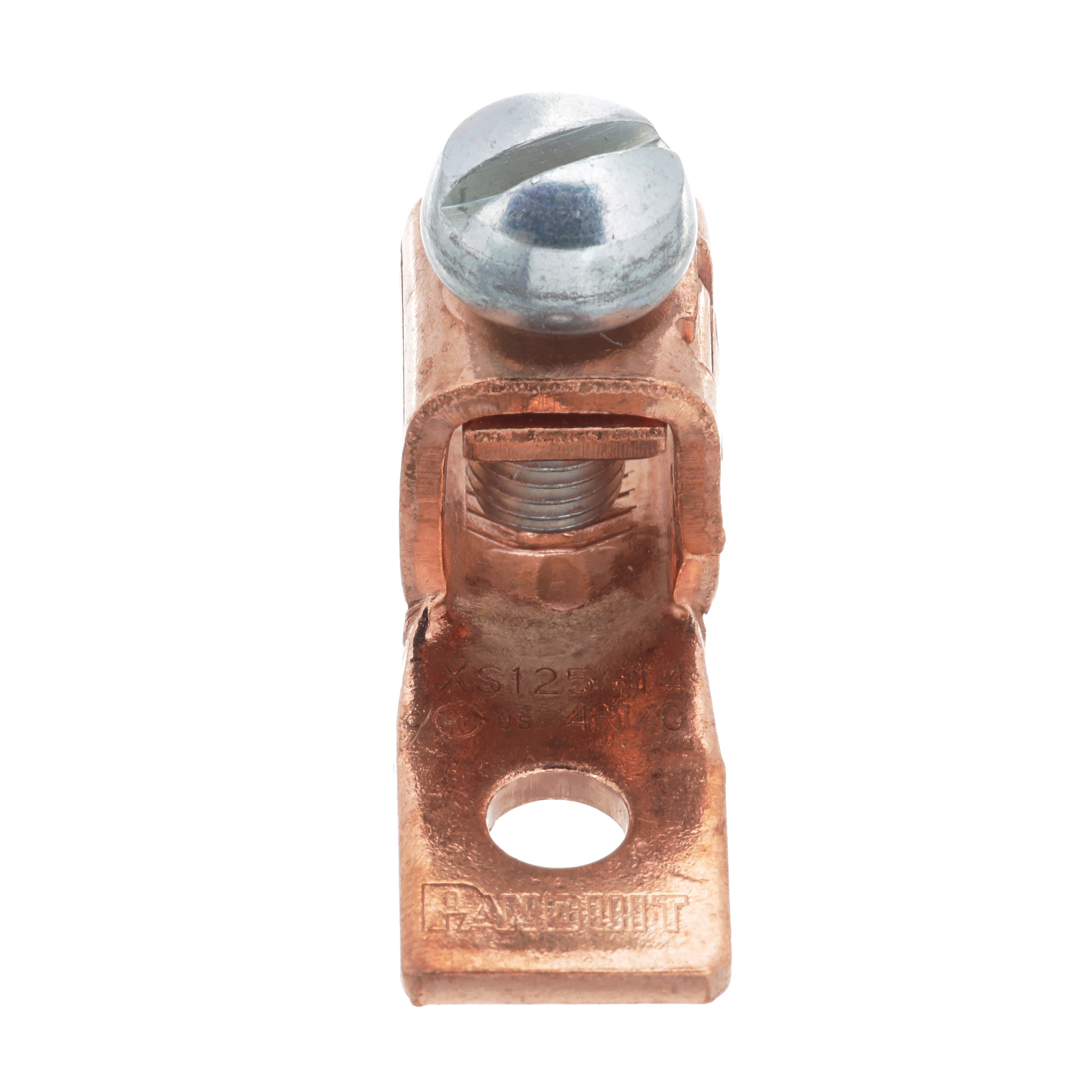

Image thumbnail 3
Email

Pan-Lug™ CXS125-14-Q Mech Con-Lugs, Fixed Tongue, Tin Plt Copper, One 1/4" Stud

Manufacturer: Panduit | Catalog # CXS125-14-Q | Electrozad South Part # 269591
$719.34 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
One-hole, copper, single barrel, straight fixed tongue lug, #4 - 1/0 AWG, 1/4 (6.4mm) stud hole.

Technical Information

Barrel Length
0.6 in
Bolt Size
1/4 in
Cable Size
AWG
Conductor Size
4-1/0 AWG
Conductor Type
Copper
Material
Copper
Number of Conductors
1
Number of Holes
1
Stud Size
1/4 In.
Temperature Rating
90 degrees C
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.62 in
Type
Single Barrel

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983030477
Finish
Tin Plated
GTIN
00074983030477
Product UPC
07498303047
UNSPSC
39121408

Dimensions

Height
0.73 in
Overall Length
1.6 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
