Lug one-hole code conductor standard barrel stud hole 5/6"

Manufacturer: Panduit | Catalog # LCA1/0-56-X | Electrozad South Part # 26964
$1,156.22 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

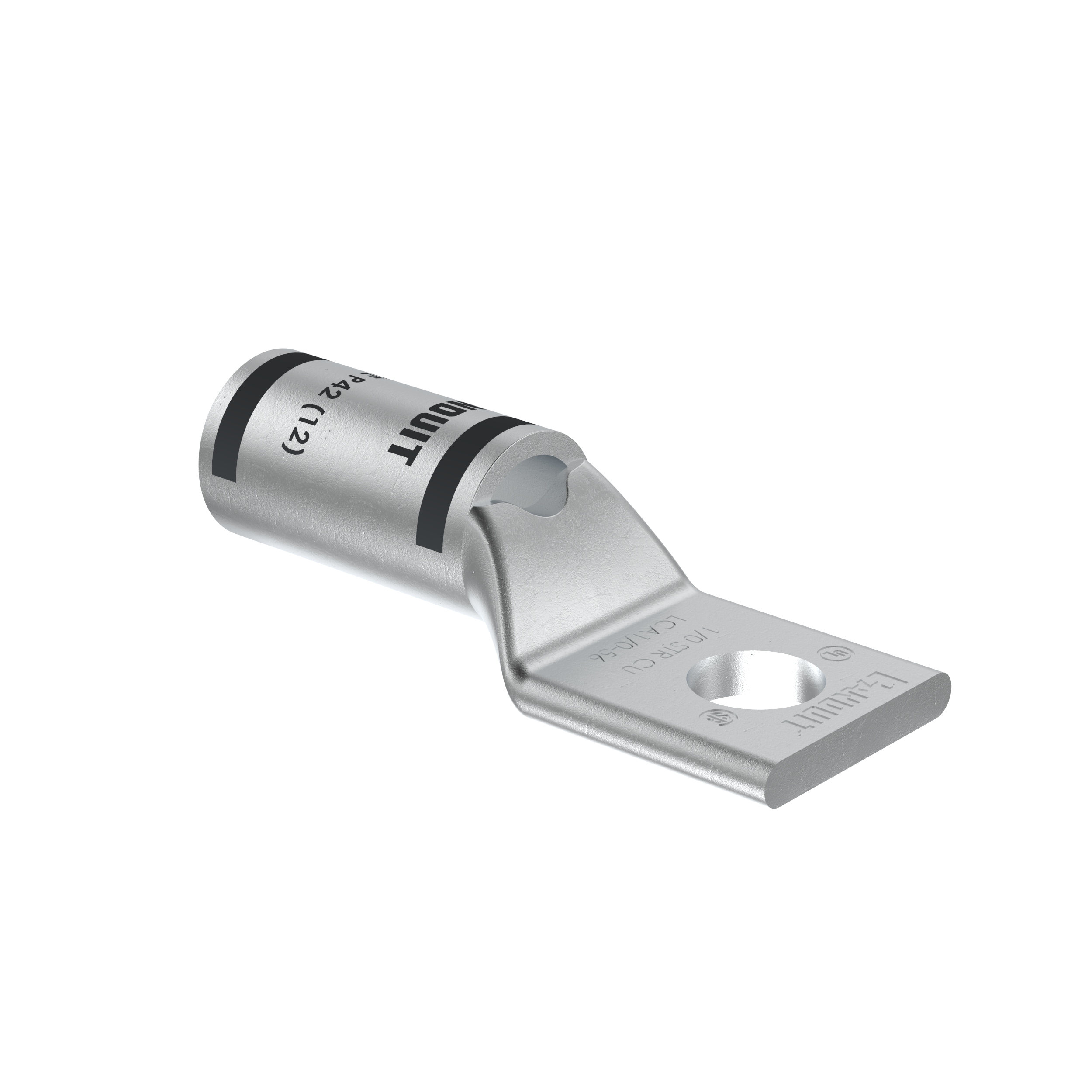

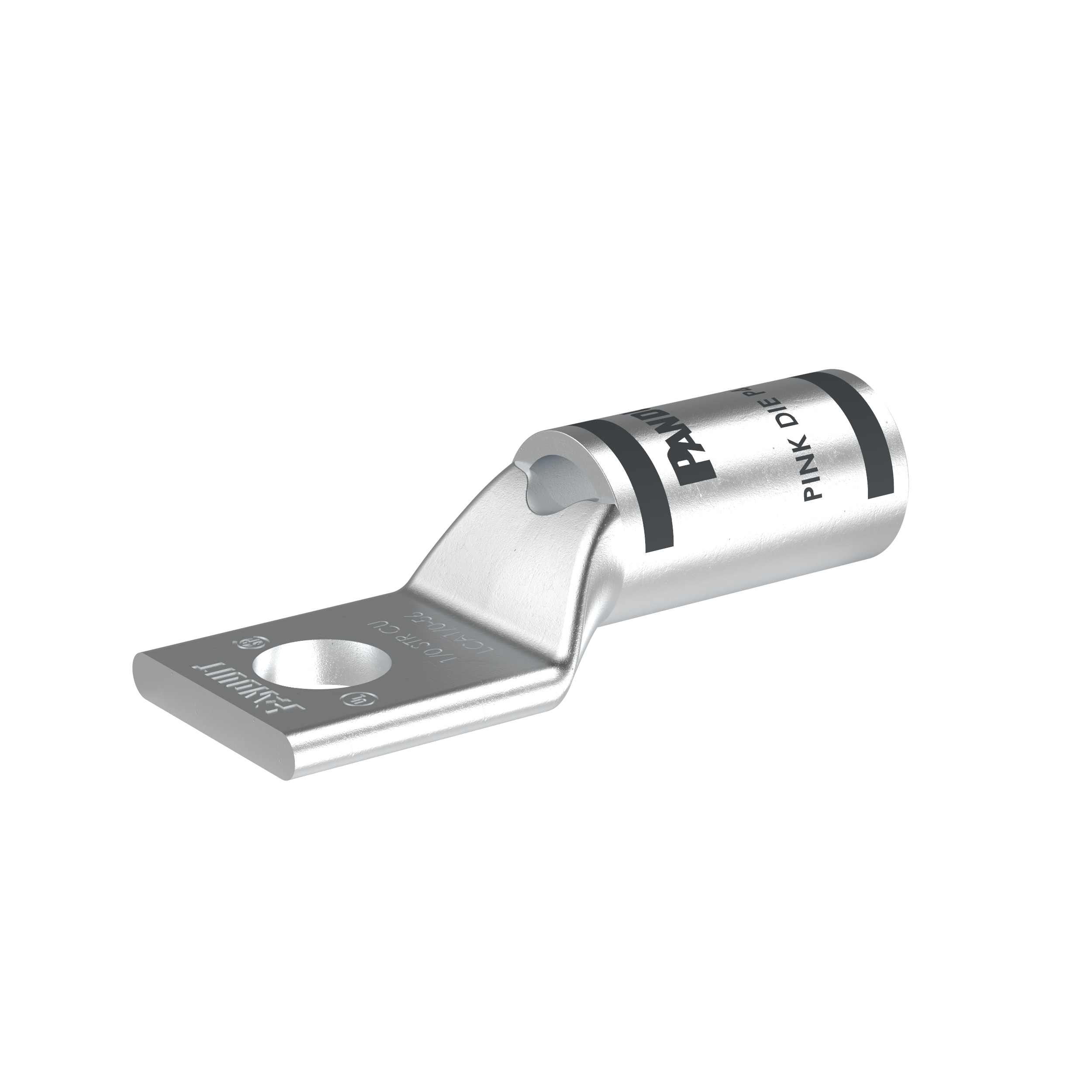

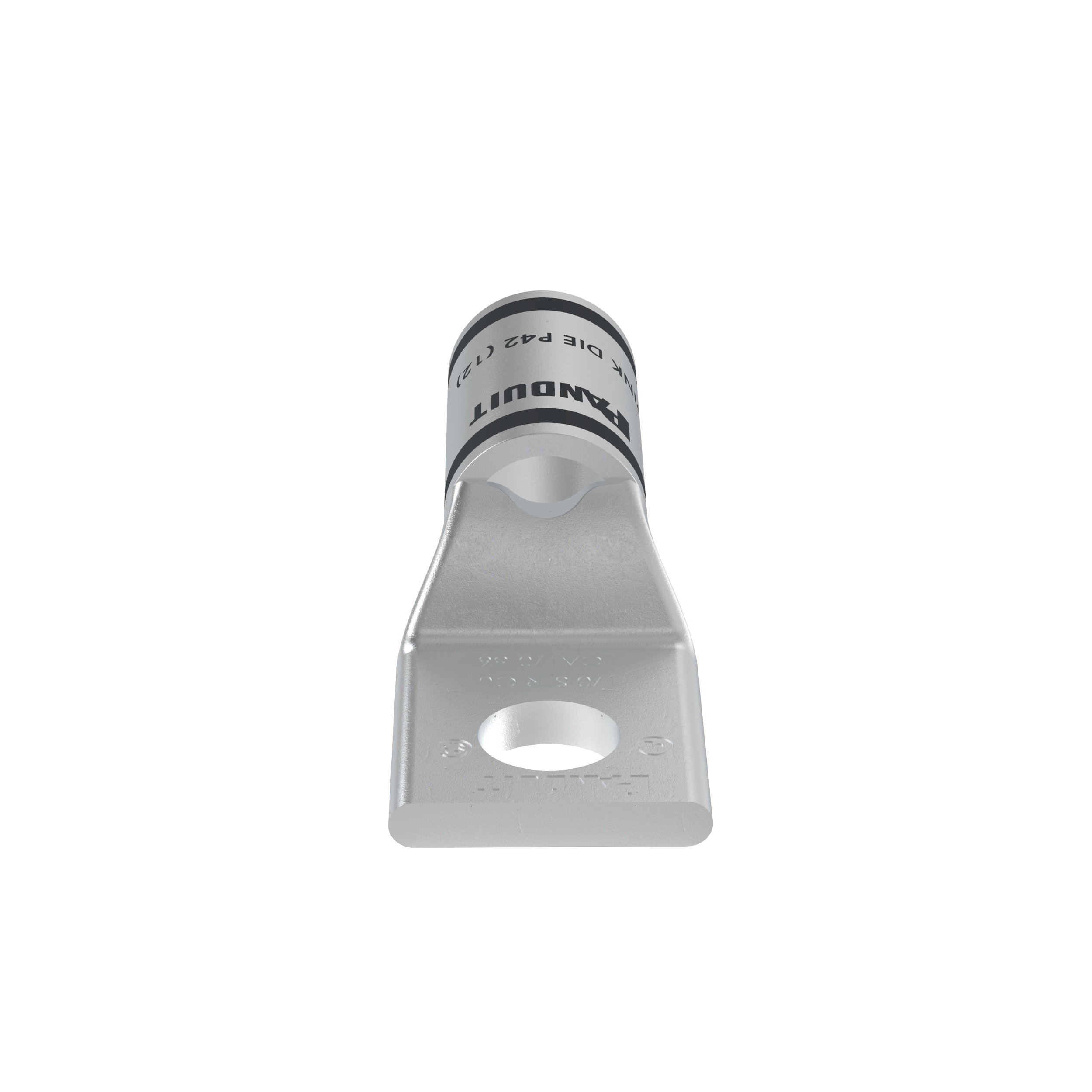

One-hole standard barrel with window lug. LCA type, straight tongue angle, 1/0 AWG code conductor size. 0.94 inch barrel length. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Use up to 35 kV and 90.. temperature rate. For use with stranded copper conductors.

Technical Information

Angle
Straight
Barrel Diameter
0.39 in ID x 0.52 in OD
Barrel Length
0.94 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Pink
Conductor Size
1/0 AWG
Die Code
P42
Material
Copper
Number of Holes
1
Size
1/0 AWG Code
Standard
ANSI C-73
Strip Length
25.4 mm
Stud Size
5/16 in
Temperature Rating
90 degrees C
Tongue Thickness
0.12 in
Tongue Type
Standard
Tongue Width
0.76 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900251
Color
Fresh Pink Lemonade
Finish
Tin-Plated
GTIN
00074983900251
Product UPC
07498390025

Dimensions

Outer Diameter
0.52 in
Overall Length
2 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
