Receptacle recess 15-60R 3P4W 60A 250V blk

Manufacturer: Leviton Manufacturing | Catalog # 8460 | Electrozad South Part # 270062
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL

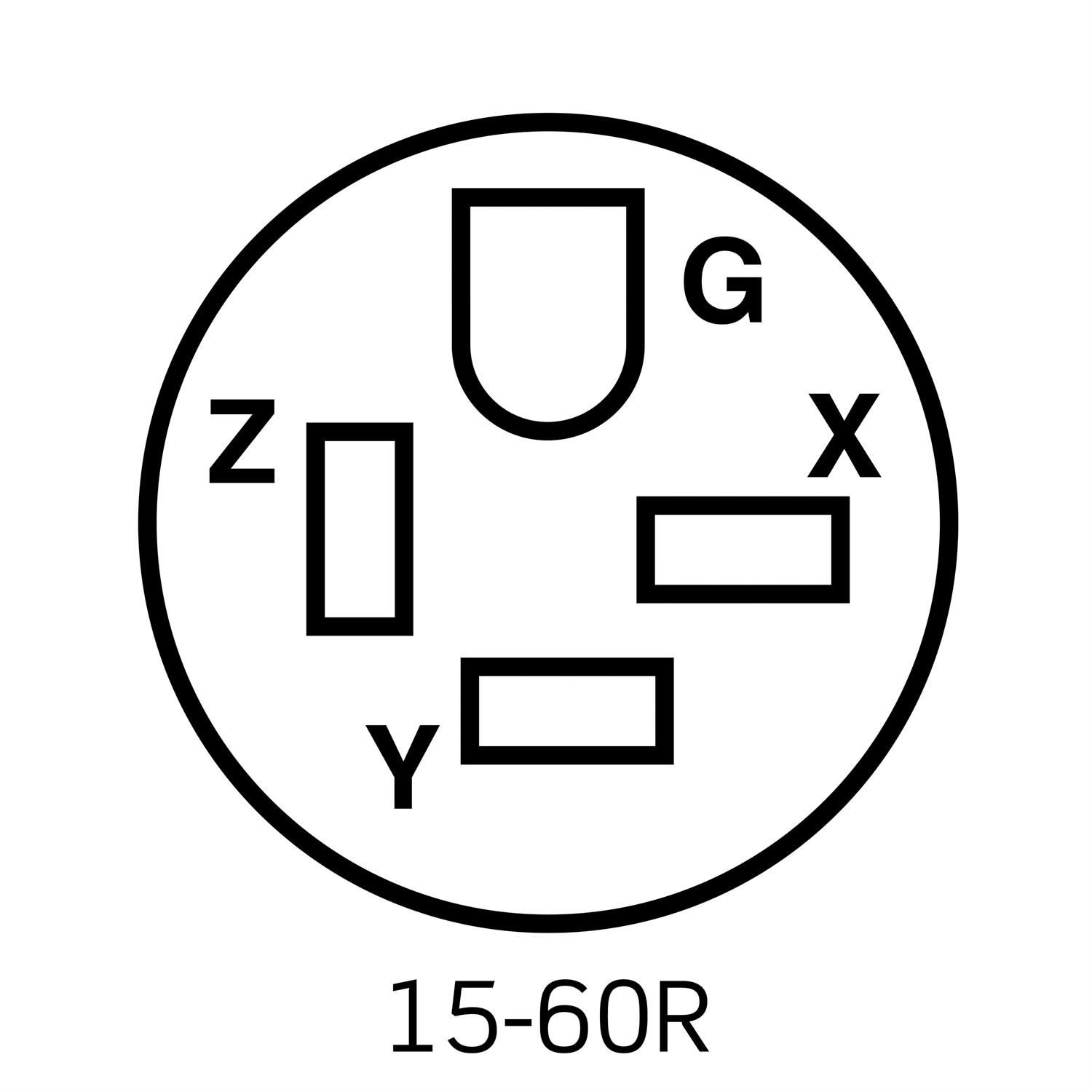

60 Amp, 250 Volt, NEMA 15-60R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, 3-Phase, Side Wired, Steel Strap, - Black

Technical Information

Amperage
60 A
Applications
Commercial
Body Material
Nylon
Conductor Size
14 - 6 AWG
Connection Type
Side Wired
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Grounding
Horsepower
10 hp
Material
Thermoplastic
Mounting Type
Box, Flush, Screw
NEMA
15-60R
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
25 lb-in
Type
Power Receptacle
Voltage
250 V
Wire Count
4
Wire Size
14 - 6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843345
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477843345
Product UPC
07847784334

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
