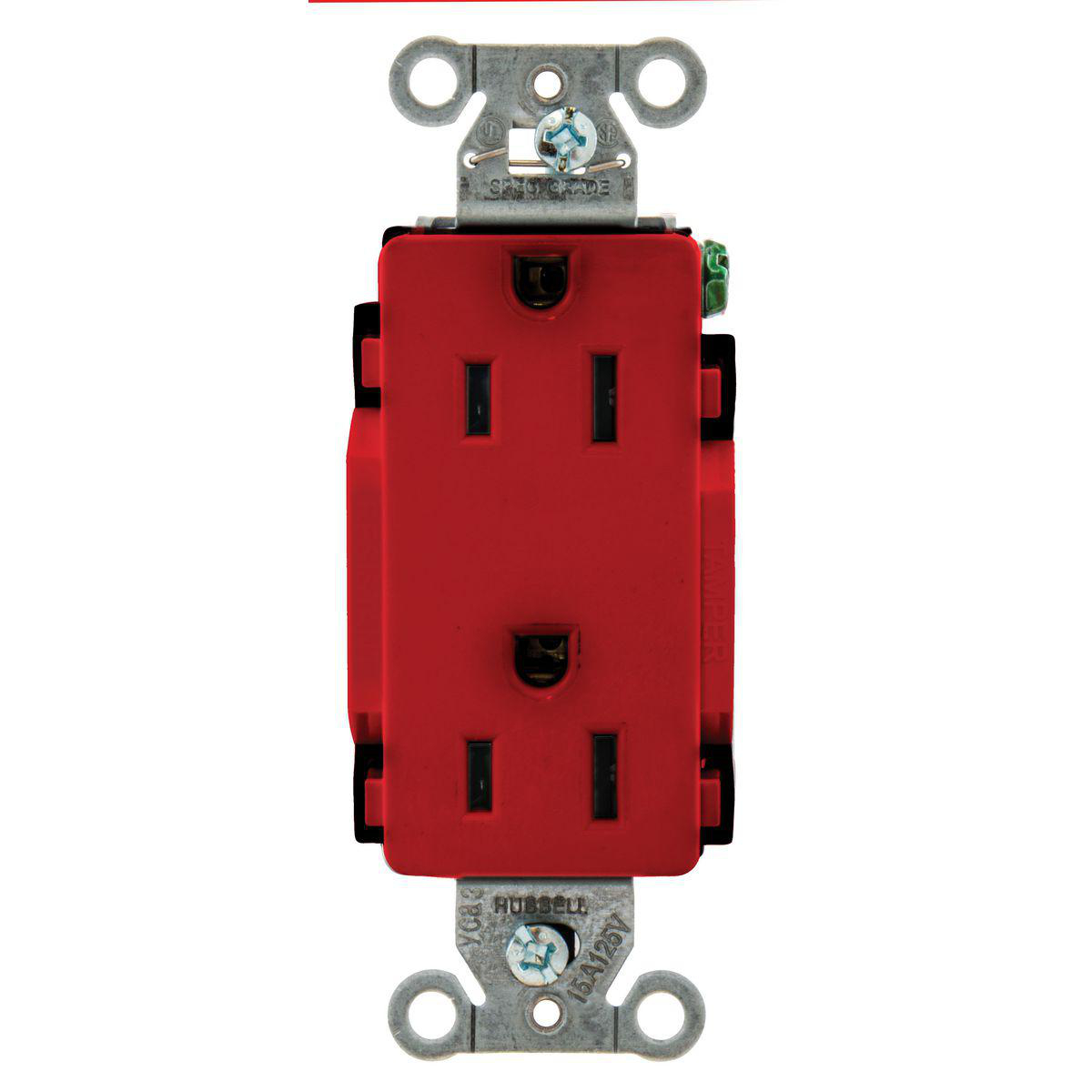

Product image for Receptacle duplex 2-pole 3-wire 15A 125V red
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Receptacle duplex 2-pole 3-wire 15A 125V red

Manufacturer: Hubbell Wiring Devices | Catalog # DR15R | Electrozad South Part # 270084
$5.70 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Style Line® Specification grade commercial series decorator duplex receptacle/straight blade device. 3-wire grounding. Aesthetic Style Line® decorator design. Smooth face. Triple wipe contact. Triple wipe contacts. Nylon face and base.

Technical Information

Amperage
15 A
Applications
Commercial Specification Grade
Base Material
Nylon,Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Contact Material
Brass
Current
15 A
Dielectric Strength
2000 V
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Commercial/Specification
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Screw Material
Plated Steel
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Back and Side Wired
Temperature Rating
-40 to 75 degrees C Continuous
Type
Decorator, Self Grounding
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585197685
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, UL 94 Requirements, V2 Rated Flammability
GTIN
00783585197685
Product Series
Commercial Specification Grade
Product UPC
78358519768
Weight
0.2 lb

Dimensions

Height
3.28 in
Length
1.29 in
Width
1.06 in

Certifications & Compliance

Country of Origin
China
Overview
  • Triple wipe contacts
  • Aesthetic Style Line® decorator design
  • Smooth face
