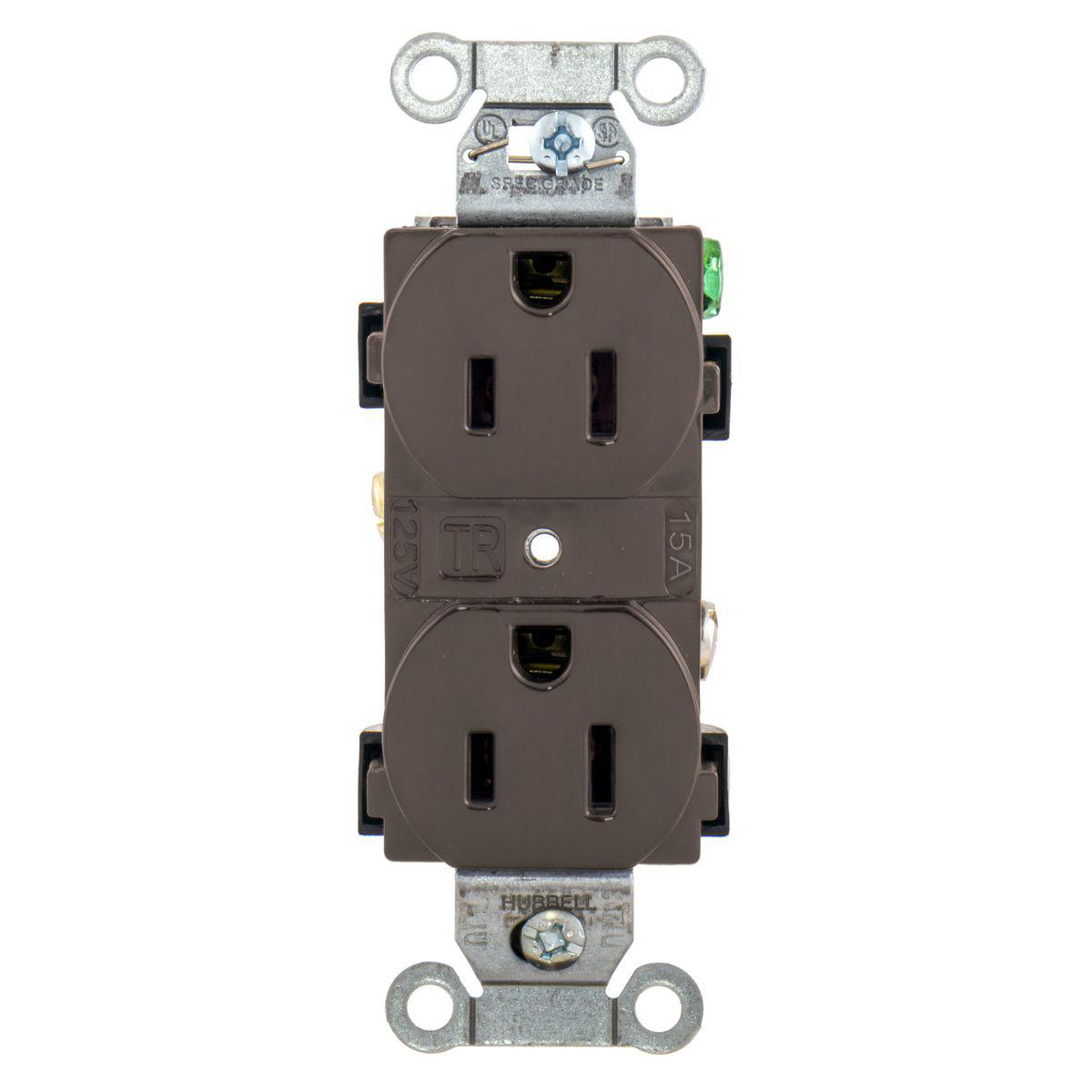

Receptacle specification grade 0.5HP NEMA 5-15R 15A 125V brown

Manufacturer: Hubbell Wiring Devices | Catalog # BR15 | Electrozad South Part # 271351
$6.62 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Specification grade commercial standard receptacle. Smooth face, side and back wired. Commercial, tamper-resistant, devices are not Fed spec listed. Stainless steel auto ground clip, steel-zinc plated mounting screw, nylon top and base.

Technical Information

Amperage
15 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14 - 12 AWG
Connection Type
Back and Side Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.57 in x 1.07 in
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
TC Connection
Back and Side Wired
Type
Traditional
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127958
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585127958
Product UPC
78358512795
Weight
0.15 lb

Dimensions

Height
1.1 in
Length
3.3 in
Width
1.34 in

Certifications & Compliance

Country of Origin
China
Overview
  • Wrap-around galvanized steel strap
  • Easy access split circuit tab
  • Nylon face and base
  • Triple wipe contacts
