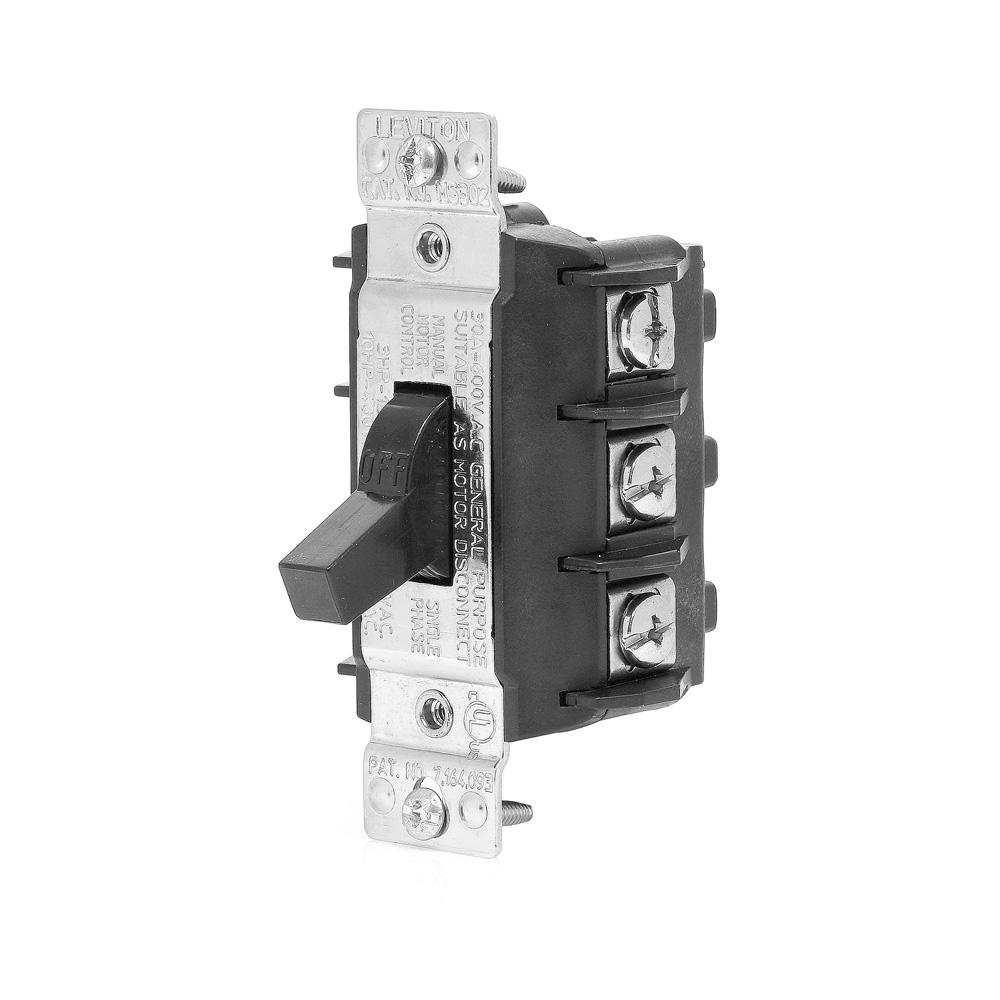

Image thumbnail 0

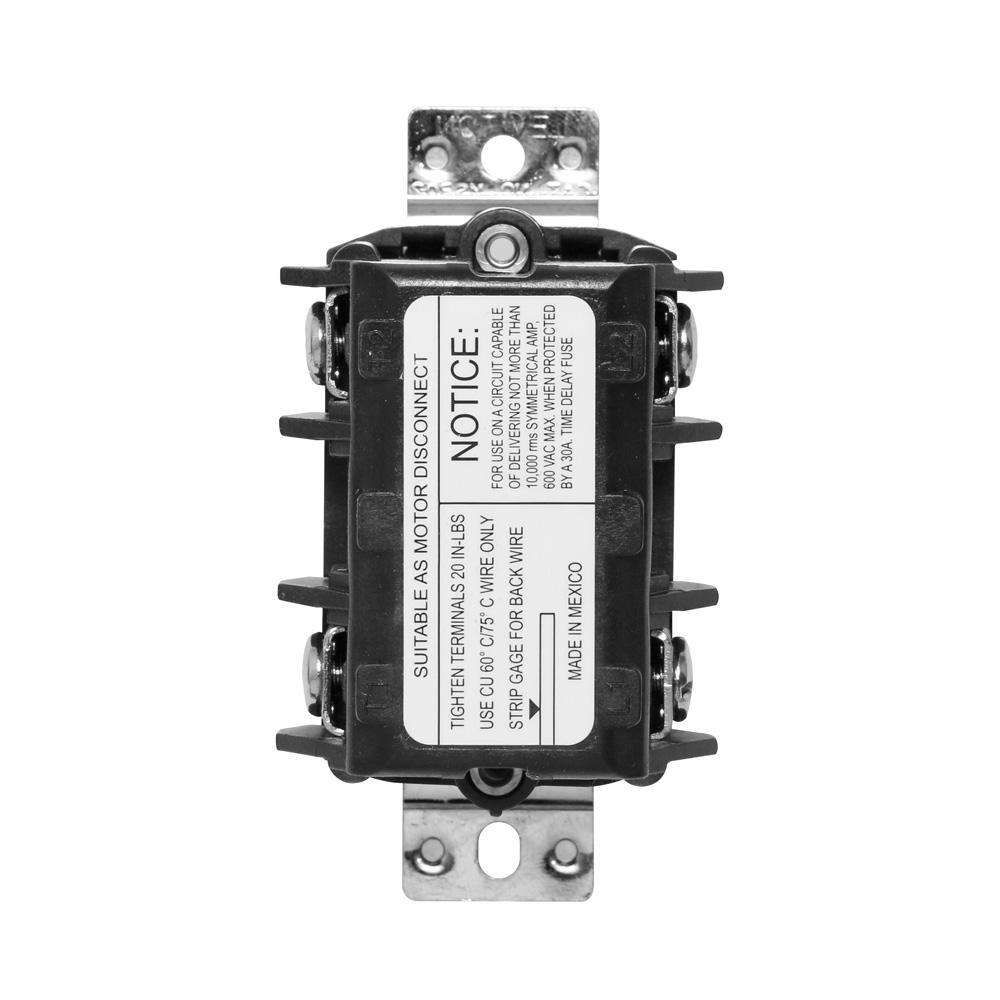

Image thumbnail 1
Image thumbnail 2
Email

LEVITON MS303-DS SWITCH 3PST 30A 600V MOTOR STARTING

Manufacturer: Leviton Manufacturing | Catalog # MS303-DS | Electrozad South Part # 271503
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Leviton’s industrial grade AC manual motor starter switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment.

Technical Information

Action
TPST
Actuator
Toggle
Amperage
30 A
Applications
Commercial
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Configuration
TPST
Contact Material
Silver-Cadmium
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
NEMA
WD-1
Number of Poles
3
Operating Temperature
-40 to 60 degrees C
Size
3.75 H x 23 W x 2.46 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
20 lb-in
Type
Standard
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477374153
Color
Black
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTiN
00078477374153
Product UPC
07847737415

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
