Pan-Lug™ LCD350-12-X Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCD350-12-X | Electrozad South Part # 271751
$4,299.07 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

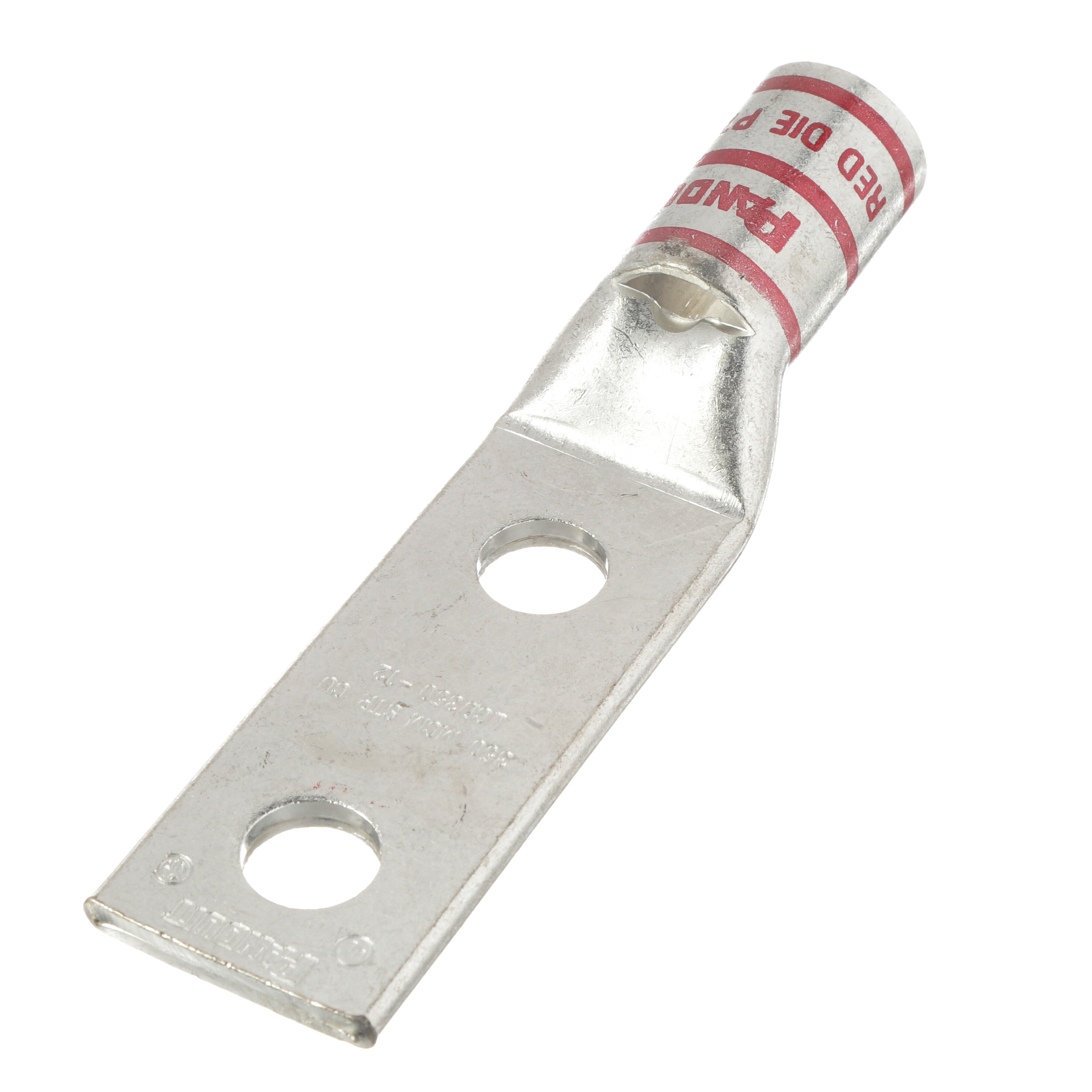

Two-hole, standard barrel lug with window, 350 kcmil cable, 1/2 stud hole, 1.75 hole spacing, NEMA hole sizes and spacing.

Technical Information

Angle
Straight
Barrel Length
1.44 in
Barrel Type
Standard with Inspection Window
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
2
Size
350 kcmil Code
Standard
ANSI C-73
Stud Size
0.5 in
Tongue Thickness
0.17 in
Tongue Type
Standard
Tongue Width
1.28 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901029
Color
Amber,Green,Red,White
GTIN
00074983901029
Product UPC
07498390102
UNSPSC
39121405

Dimensions

Overall Length
4.96 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
