TNB HSB175-82-4 BOOT HEATSHRINK FOR #4G- 600MCM 2.36"D 7.95"L 600V BLAC

Manufacturer: ABB | Thomas & Betts | Catalog # HSB175-82-4 | Electrozad South Part # 271933
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual

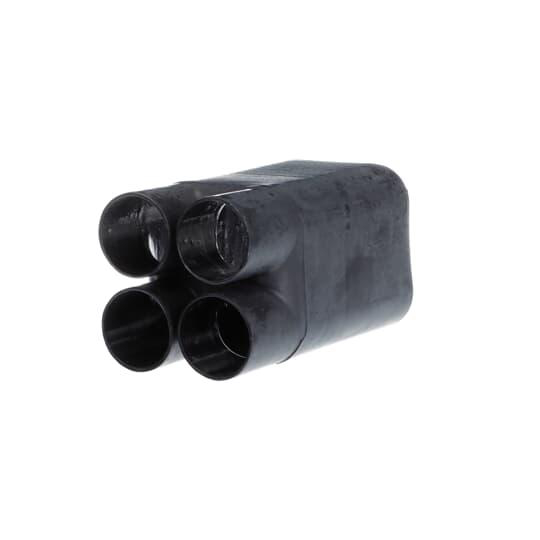

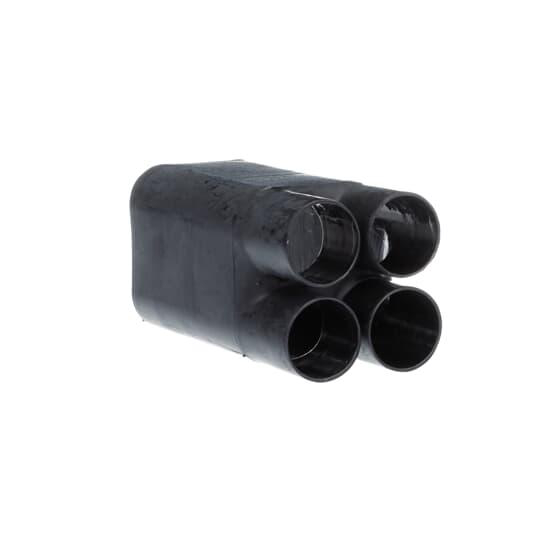

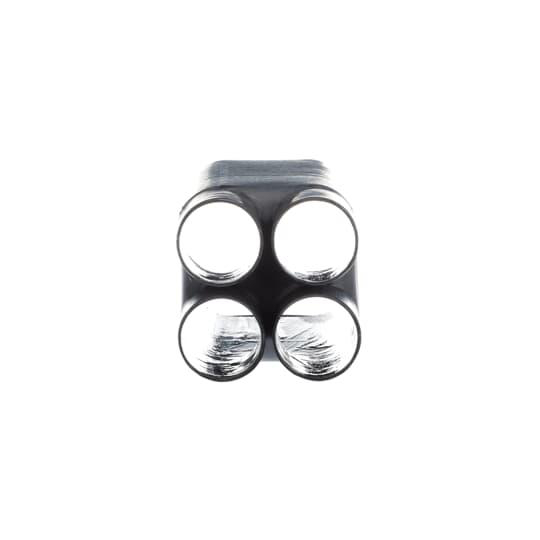

SHRINK-KON™ heat-shrinkable breakout boot with thermoplastic adhesive liner provides complete environmental protection and insulation. Strain relief and mechanical protection. Shrink temperature of 135 °C.

Technical Information

Applications
For 4-Core Cables
Shrink Ratio
3:1
Temperature Rating
-55 to 100 degrees C
Type
Heavy Wall
Wall Thickness
0.16 in

Manufacturer Information

Brand
ABB
Sub Brand
Shrink-Kon®

General Product Info

12-Digit UPC
786210872209
Box Quantity
10
Color
Black
GTiN
00786210872209
Product UPC
78621087220

Dimensions

Length
7.95 in
Overall Length
7.95 in
Thickness
0.16 in
