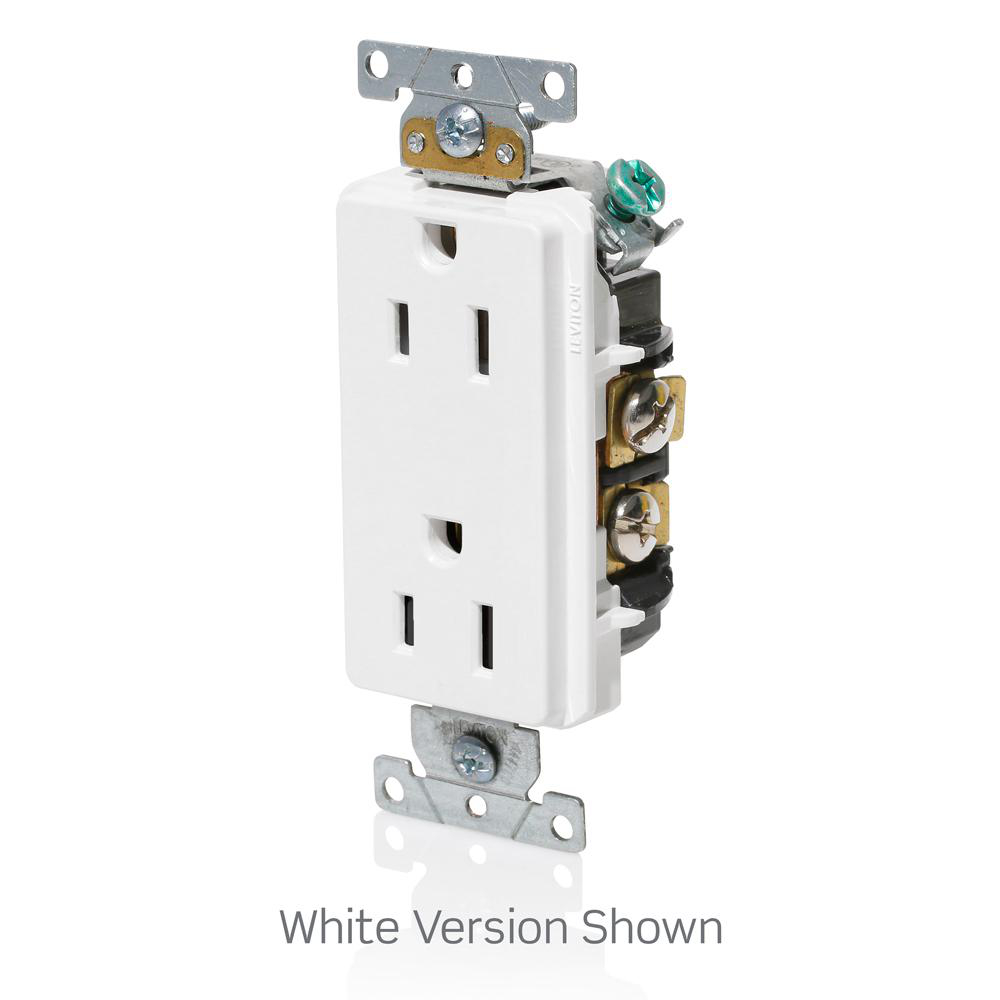

Receptacle 5-15R COM duplex decora 15A 125V whi

Manufacturer: Leviton Manufacturing | Catalog # 16252-W | Electrozad South Part # 27203
$9.07 /ea
ea
Log in or register to view your price, purchase history, and more!
22 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, , Back & Side Wired, Steel Strap, - White

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
60 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Outlet
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477819685
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477819685
Product UPC
07847781968

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,NON-ANCE
Country of Origin
Mexico
