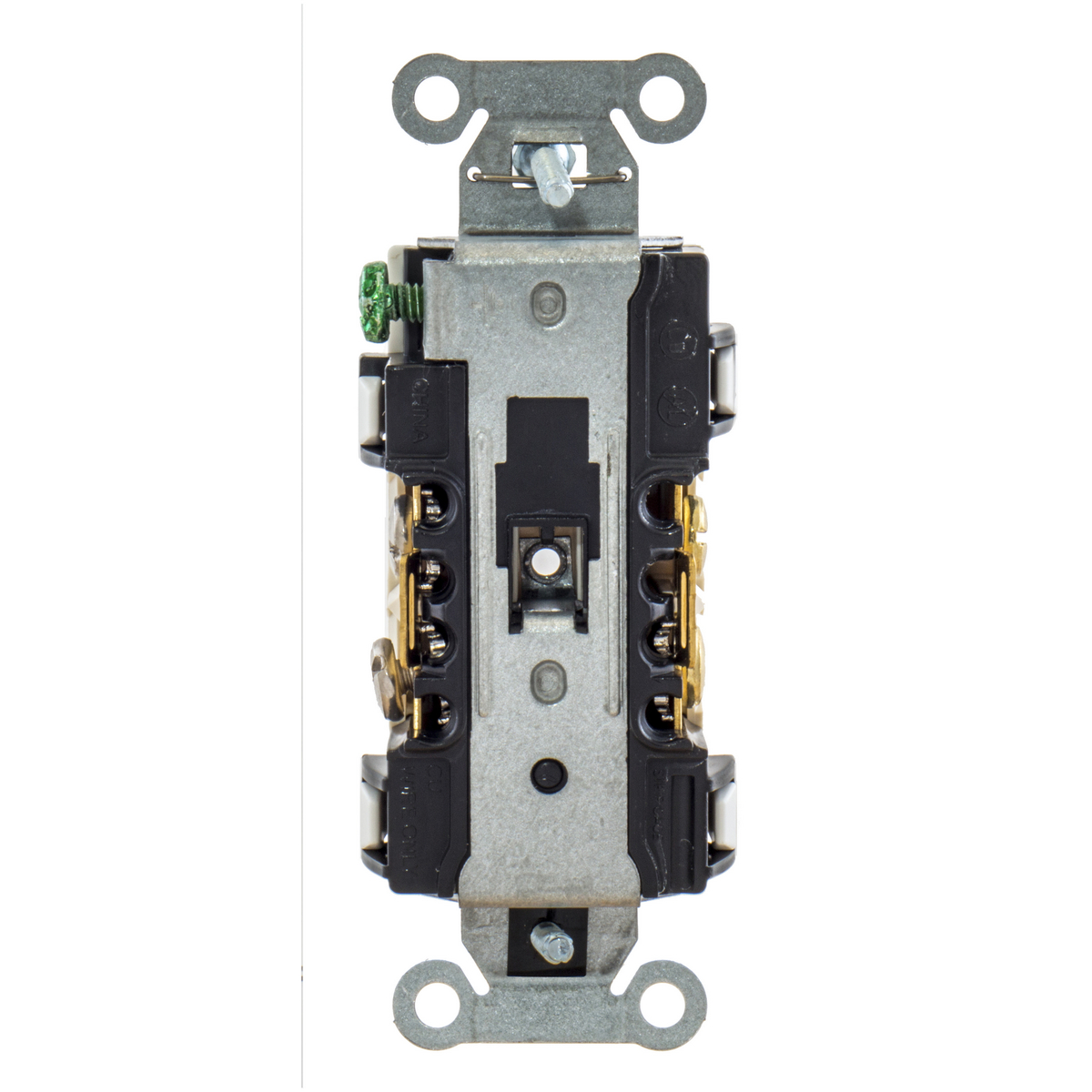

Image thumbnail 1

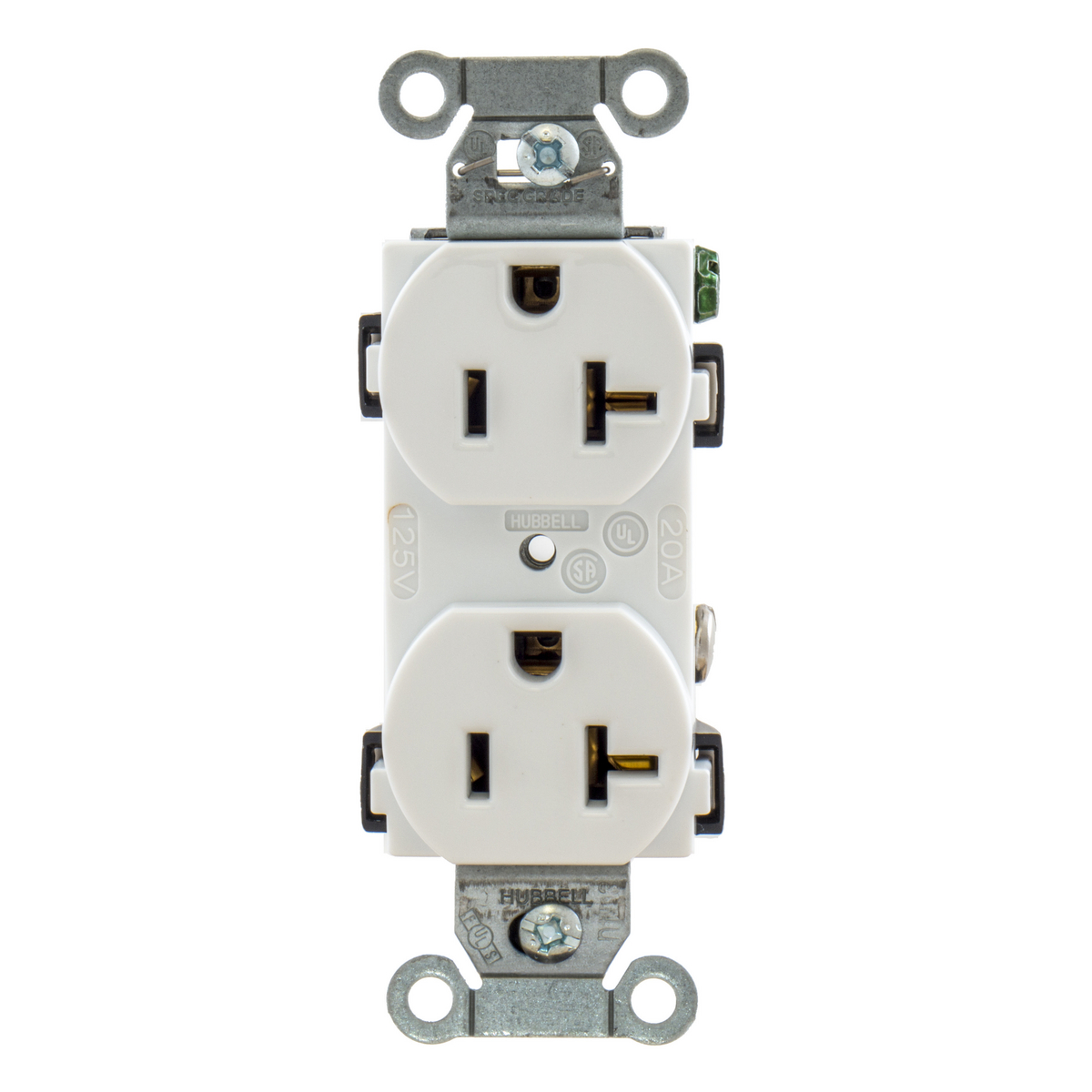

Image thumbnail 2

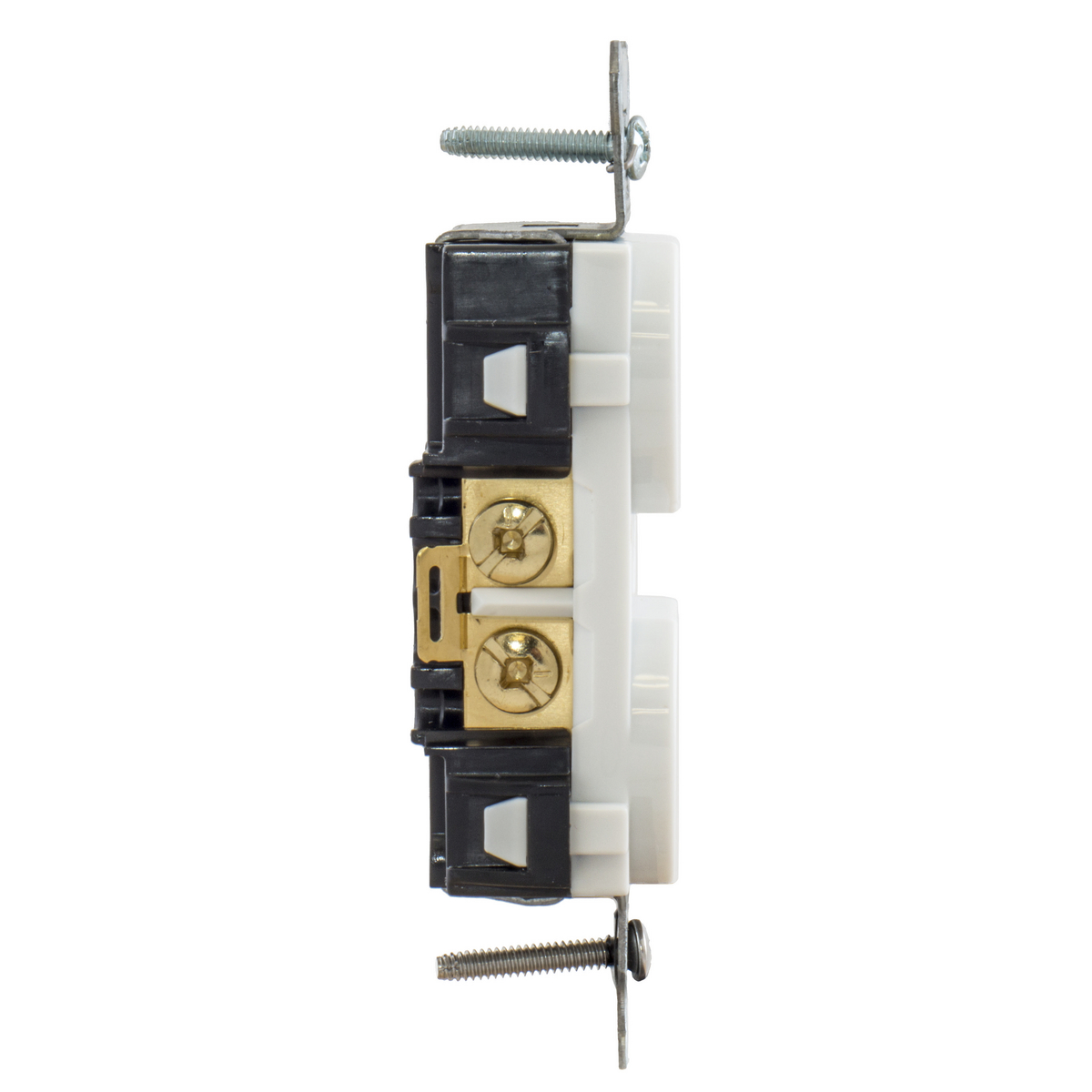

Image thumbnail 3

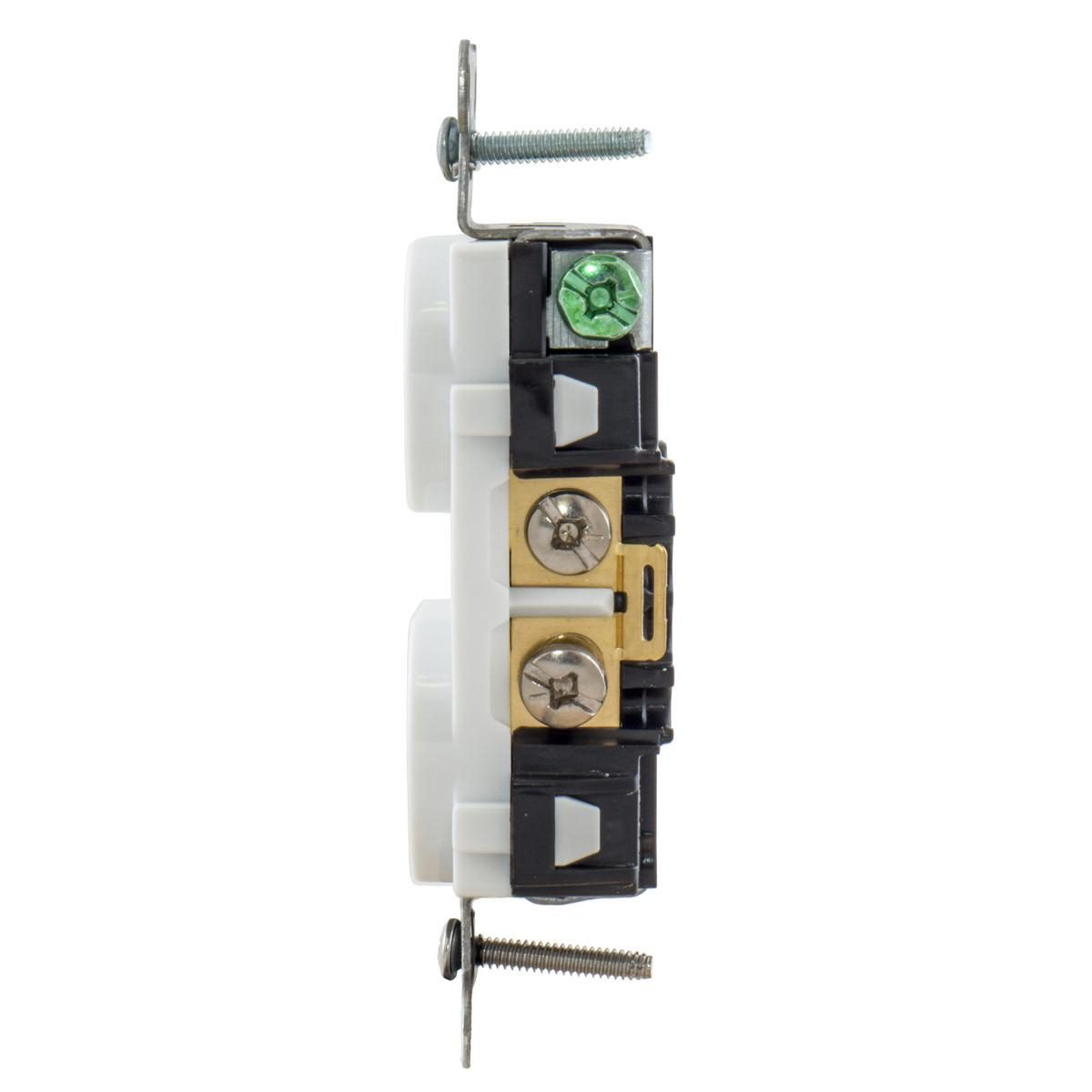

Image thumbnail 4
Email

Receptacle duplex 2-pole specification-grade 20A 125V white

Manufacturer: Hubbell Wiring Devices | Catalog # BR20WHI | Electrozad South Part # 272636
$8.41 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Commercial specification-grade duplex receptacle. Back and side wired. 2-pole, 3-wire grounding. Smooth face style. Nylon face and base. 0.03 brass power contacts. Brass ground contacts. 0.062 inch nickel plated steel wire clamp. Plated steel terminal screws. 0.04 inch galvanized steel mounting strap. Stainless steel automatic self-grounding staple. Galvanized steel mounting screws. Easy access split circuit tab. Nylon face and base. Wrap-around galvanized steel strap. Triple wipe contacts.

Technical Information

Amperage
20 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
TC Connection
Back and Side Wired
Type
Traditional
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
12 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585144023
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585144023
Product Series
Commercial Specification Grade
Product UPC
78358514402
Weight
0.2 lb

Dimensions

Height
3.28 in
Length
1.32 in
Width
0.83 in

Certifications & Compliance

Country of Origin
China
Overview
  • Wrap-around galvanized steel strap
  • Easy access split circuit tab
  • Nylon face and base
  • Triple wipe contacts
