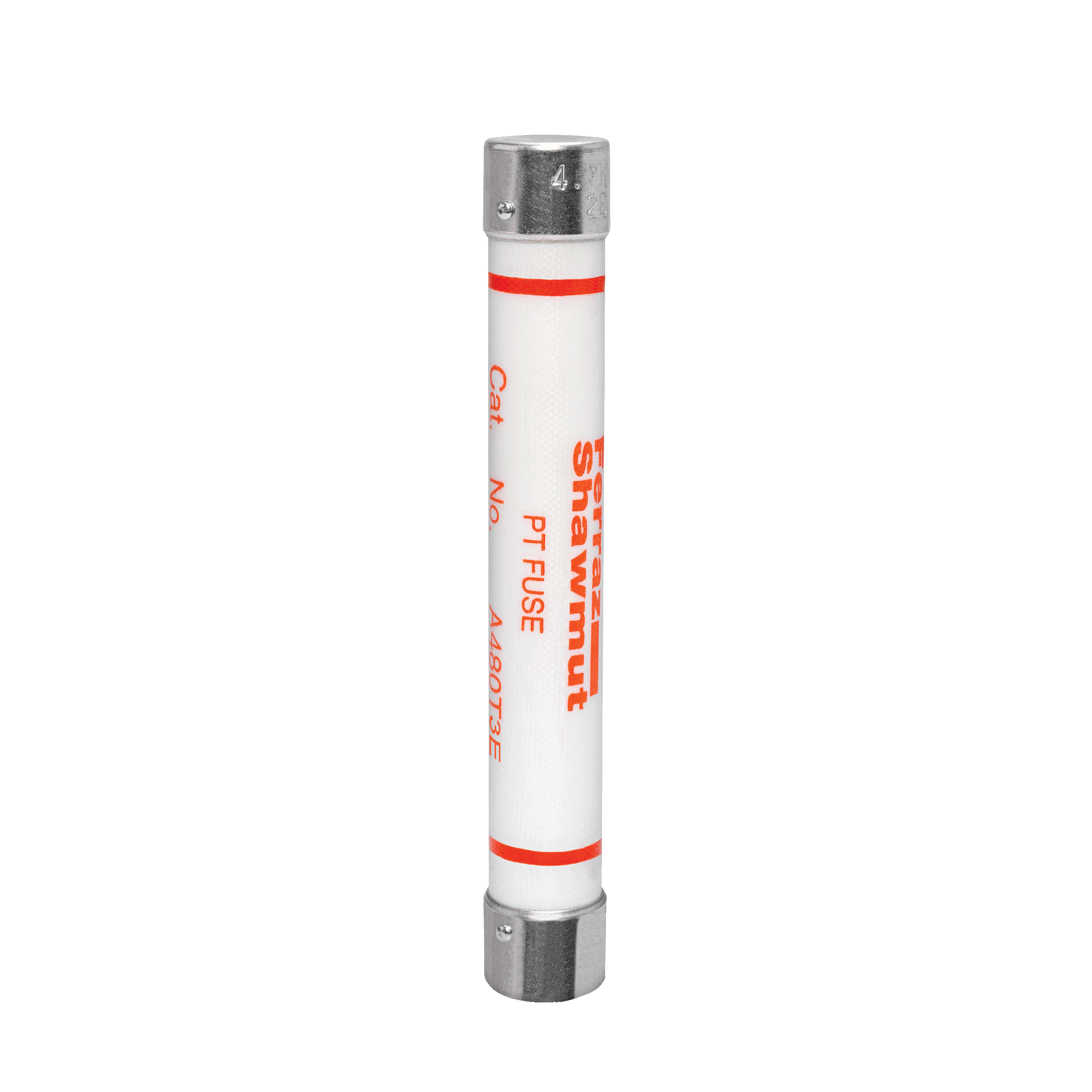

MERSEN A480T3E FUSE 3A 4.8KV

Manufacturer: Ferraz Shawmut Mersen | Catalog # A480T3E | Electrozad South Part # 273269
$314.61 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A

Technical Information

Amperage
3 A
Applications
For Primary Protection for Potential Transformers or Control Power Transformers
Connection Type
Ferrule
Contact Material
Tin-Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
4800 V
TC Connection
Ferrule
Temperature Rating
80 degrees C
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Potential Transformer Protection Fuses
Voltage
4800 V

Packaging

Package Qty
2

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001800536
Construction
GMG
GTIN
30782001800537
Product UPC
78200180053
Weight
0.4 lb

Dimensions

Diameter
0.81 in
Length
5.63 in

Certifications & Compliance

Country of Origin
Mexico
