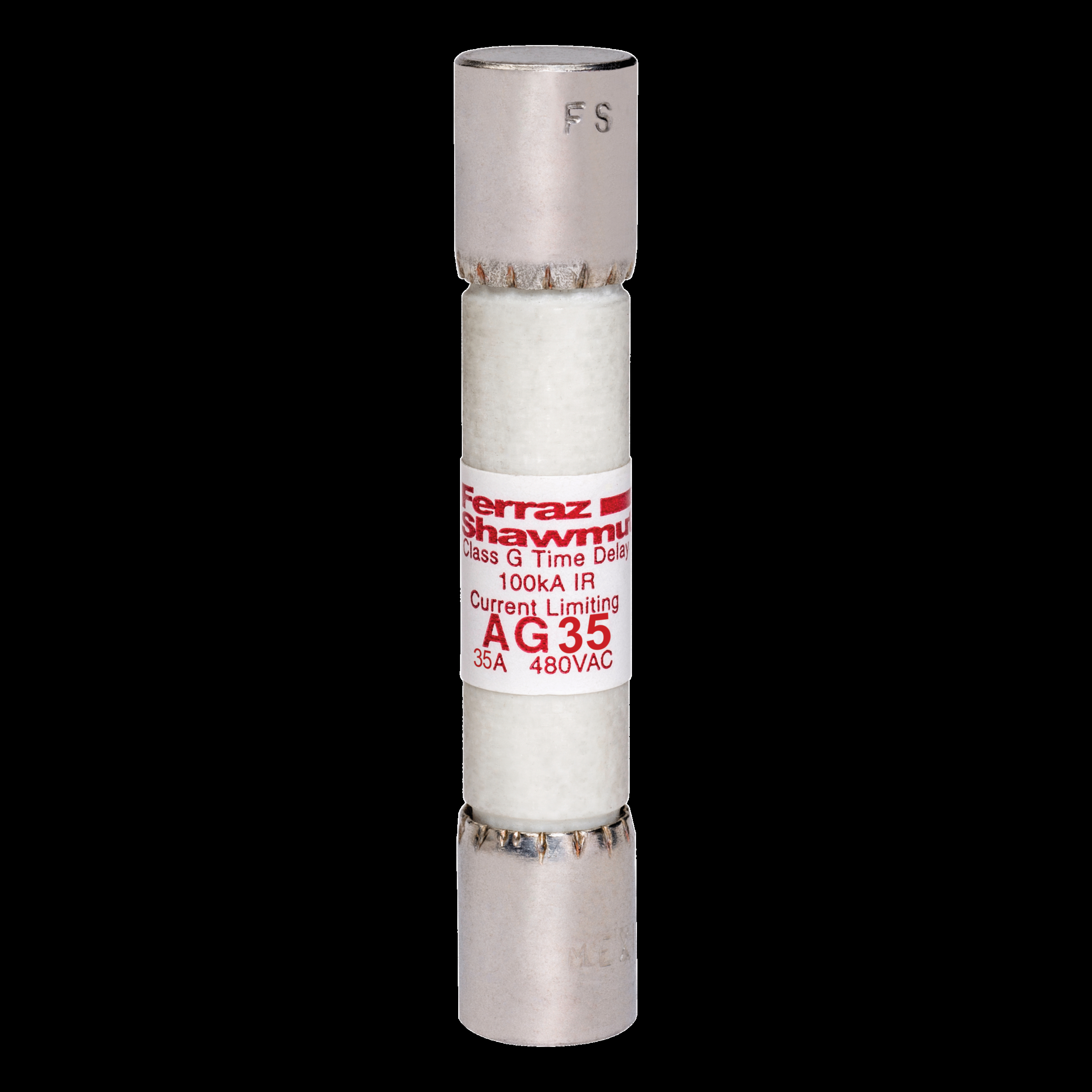

Product image for MERSEN AG35 FUSE MIDG CLASS G 35A 480V 13/32"DIA TIME DELAY MIDGET
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

MERSEN AG35 FUSE MIDG CLASS G 35A 480V 13/32"DIA TIME DELAY MIDGET

Manufacturer: Ferraz Shawmut Mersen | Catalog # AG35 | Electrozad South Part # 2737
$28.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Technical Information

Amperage
35 A
Applications
Lighting Heating Appliances
Connection Type
Ferrule
Contact Material
Tin-Plated Copper
Frequency
50/60 Hz
Fuse Class
Class G
Insulation Material
GMG
Interrupt Rating
100 kA
Mounting Type
Clip
Rated Voltage AC
480 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Fast Acting

Packaging

Package Qty
4

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001905187
Class
G
Construction
GMG
GTIN
30782001905188
Product UPC
78200190518
Weight
0.037 lb

Dimensions

Diameter
0.41 in
Length
2.25 in
