LEVITON 5601-P02 SWITCH 15A 120V 277V 1POLE DECORA ROCKER BROWN QUICKWIRE PUSHIN & SIDE WIRED

Manufacturer: Leviton Manufacturing | Catalog # 5601-P02 | Electrozad South Part # 274759
$1.52 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet

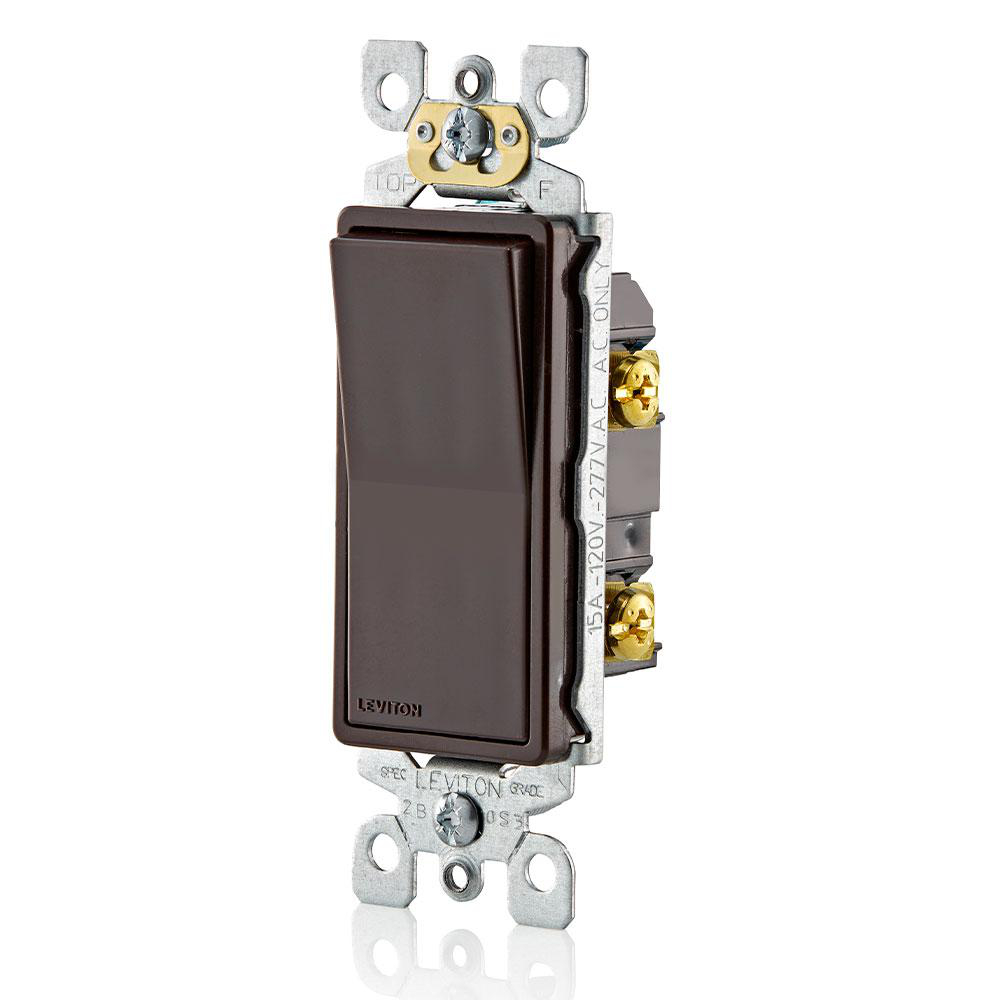

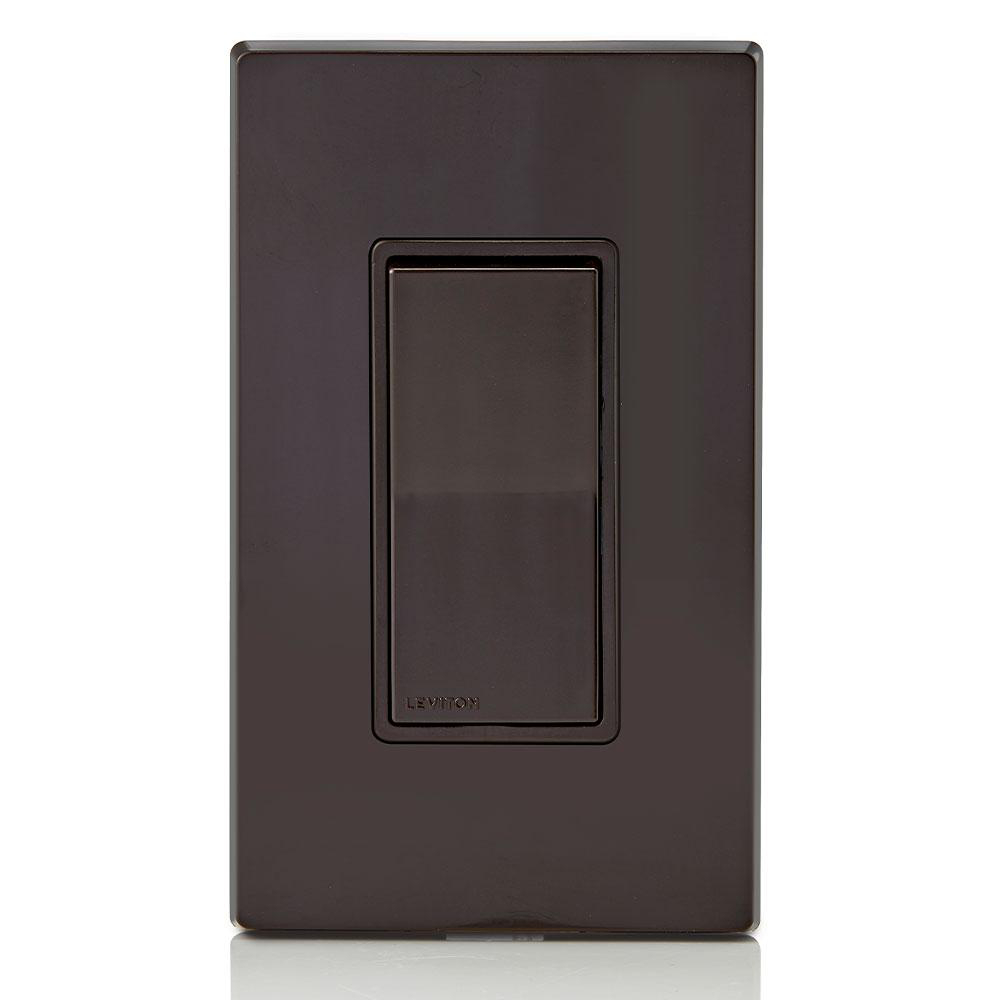

Decora® Rocker switch with Quickwire push-in and side wired. Switch frame shields against dust and fits in wall plate to prevent rocker binding. Terminal screws accept up to No.12 AWG copper or copper-clad wire. Quickwire push-in terminals accept No.14 AWG solid copper wire only. Sturdy construction for long service life. Full-rated current capacity with tungsten, fluorescent or resistive loads.

Technical Information

Action
SP
Actuator
Rocker
Amperage
15 A
Applications
For Residential use
Body Material
Thermoplastic
Contact Rating
15 AMP 120/277 VAC
Grounding
Grounding Strap With Clip
Horsepower
1/2 @ 120 V;2 @ 240 V HP
Material
Thermoplastic
Number of Poles
1
Operating Temperature
-40 to +120 DEG C
Power Rating
1/2 hp at 120 V, 2 hp at 240 V
Size
4.20 H x 1.40 W x 1.38 D IN
Temperature Rating
-40 to 120 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Rocker Switch

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477339558
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477339558
Product UPC
07847733955

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
USA
