UTP RJ45 Cat 5e Leadframe Jack Module, Blue

Manufacturer: Panduit | Catalog # CJ588BUY | Electrozad South Part # 275877
$15.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

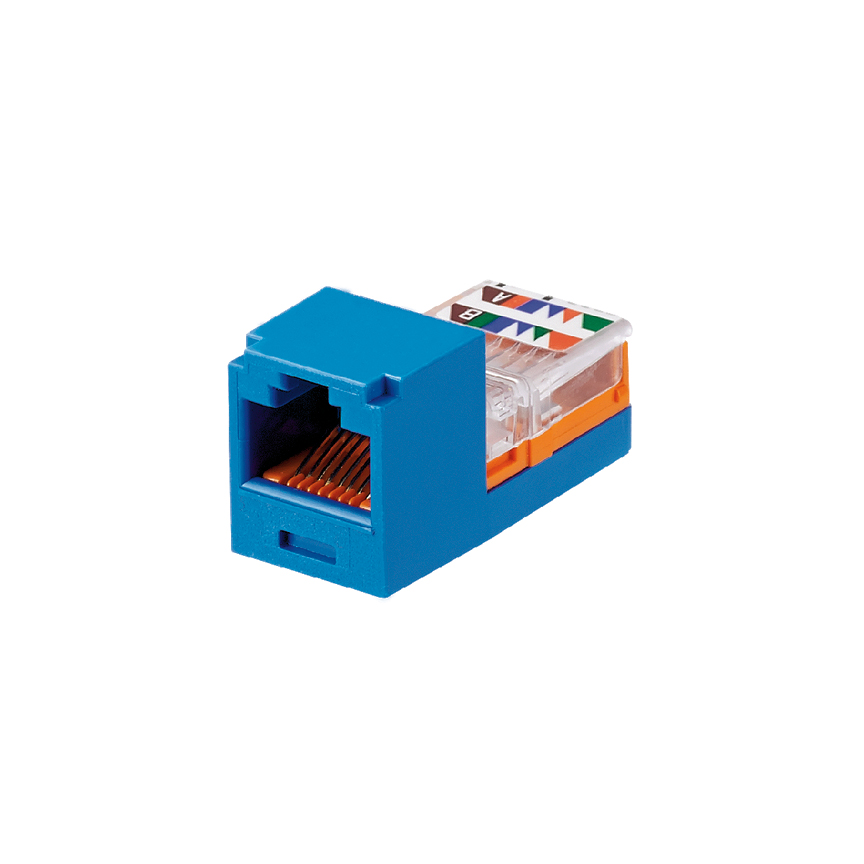

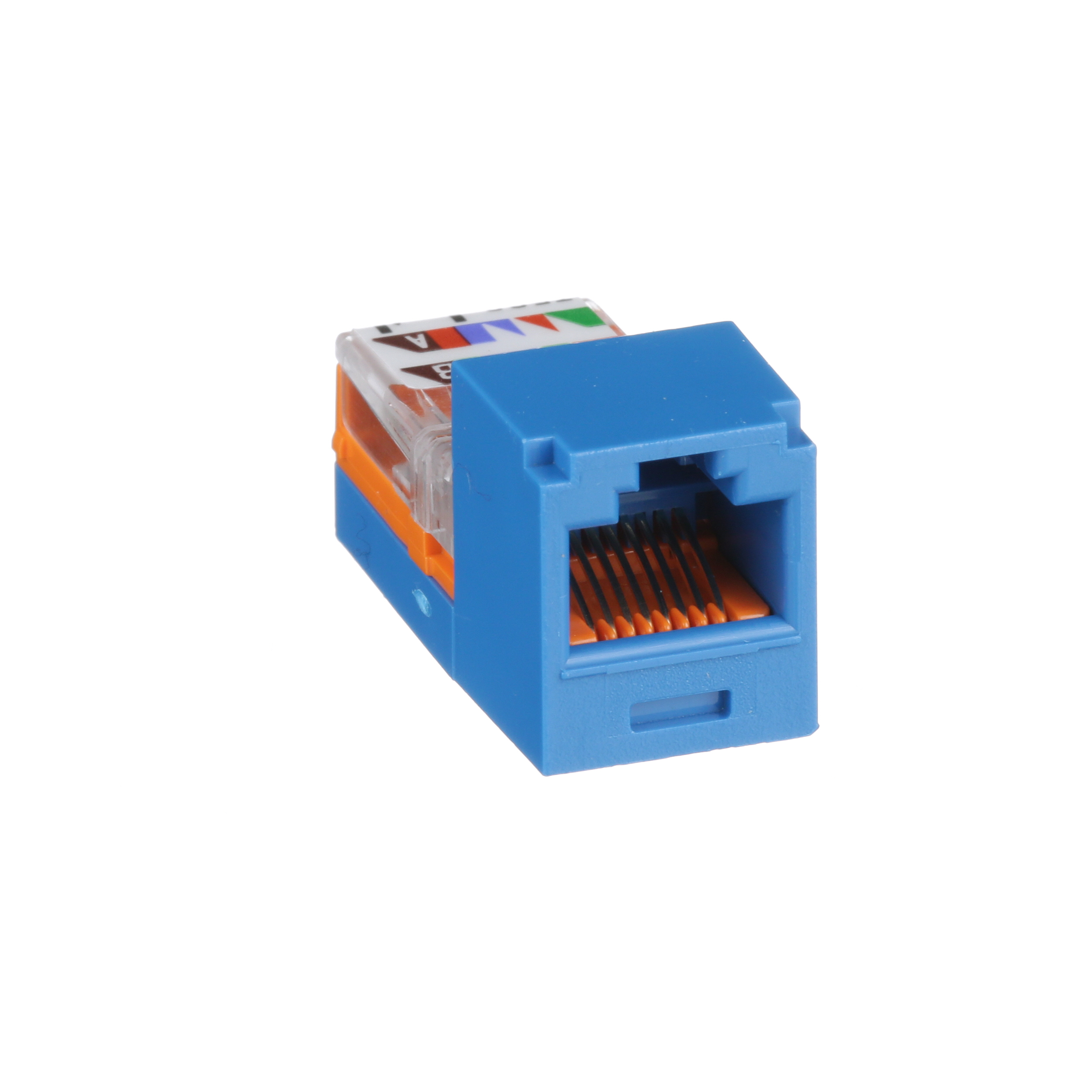

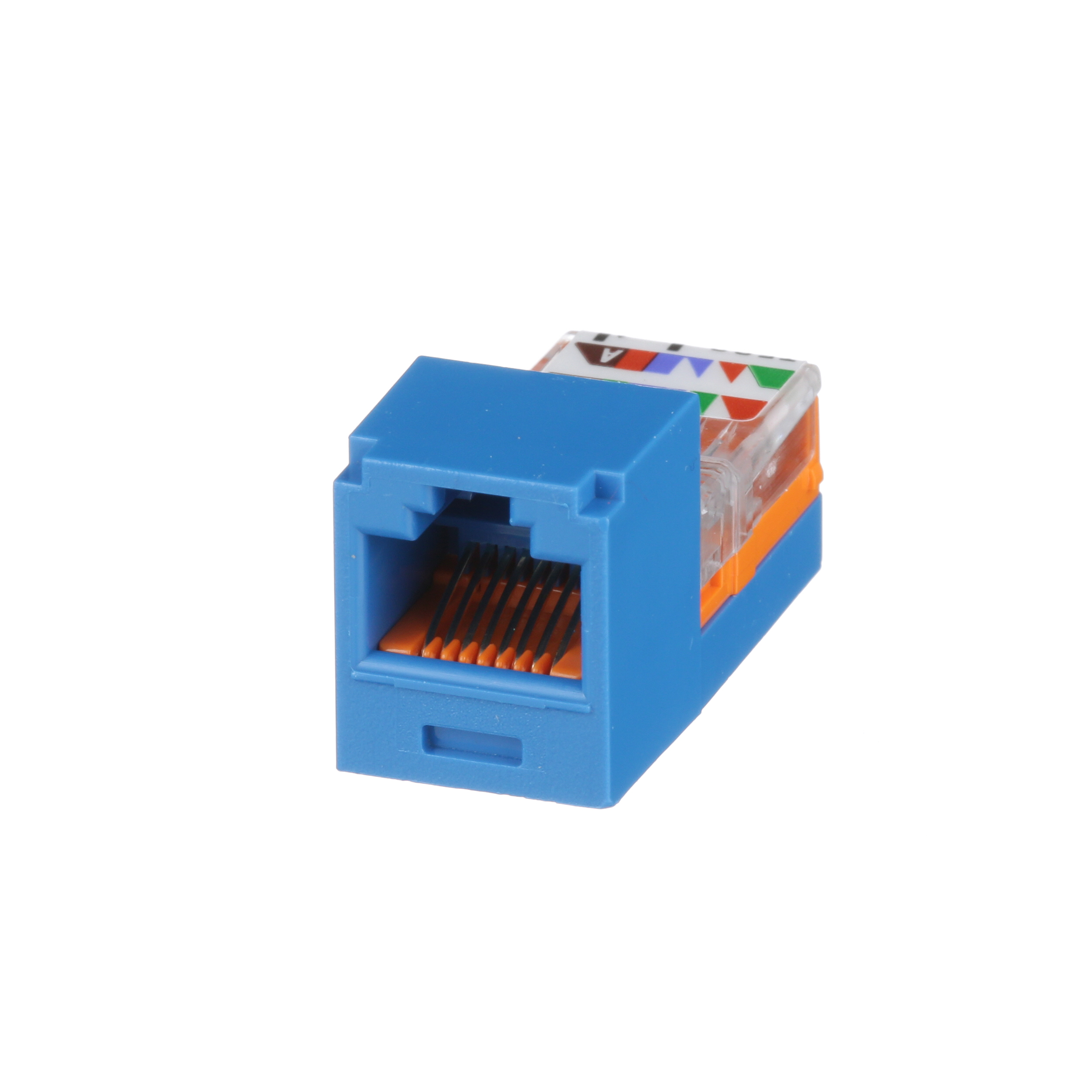

The Mini-Com® Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is blue.

Technical Information

Applications
Unshielded
Cable Size
22 - 24 AWG
Cable Type
Category 5e
Material
ABS
Max Operating Temperature
149 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Unshielded, Universal

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983034840
Color
Blue
GTIN
00074983034840
Product UPC
07498303484
Used With
Litz Wire Conductor, Round Cable, Solid Core

Dimensions

Depth
1.37 in
Height
0.72 in
Overall Length
34.8 mm
Width
15.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China
