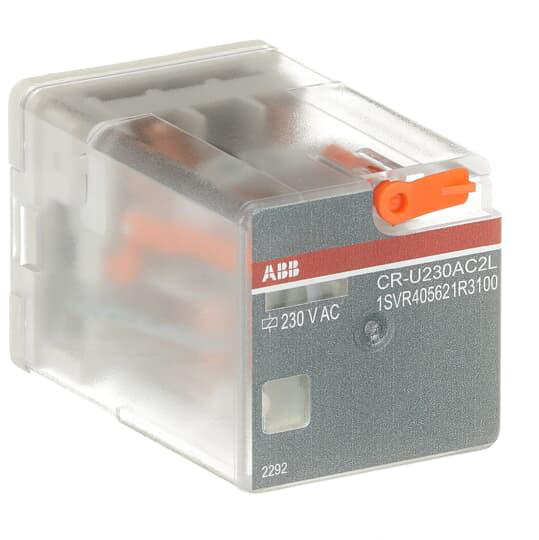

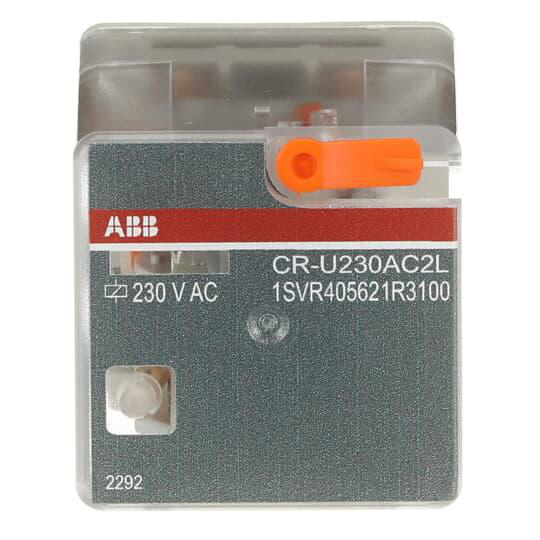

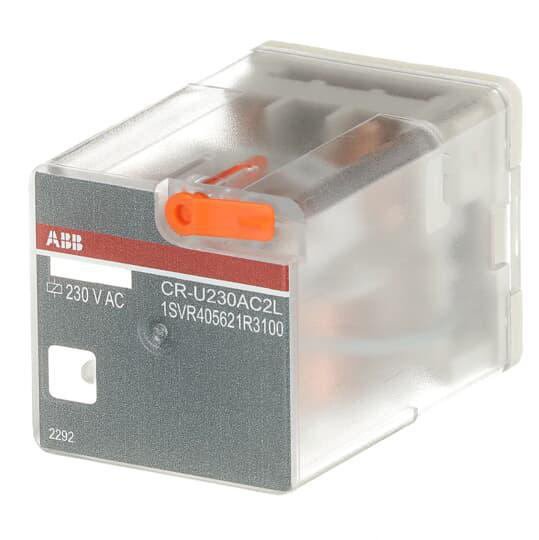

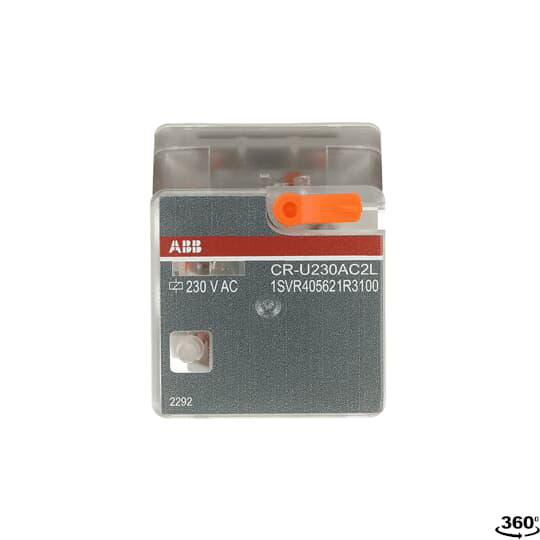

Product image for CR-U230AC2L PLUGGABLE RELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

CR-U230AC2L PLUGGABLE RELAY

Manufacturer: ABB Inc | Catalog # 1SVR405621R3100 | Electrozad South Part # 276033
*Call For Price*
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
230 VAC pluggable interface relay with 2 c/o with LED outputs and 250 V, 10A contact rating

Technical Information

Applications
For Electrical Isolation, Amplification and Signal Matching Between the Electronic Controlling
Contact Configuration
SPDT - 2 CO
Contact Material
Silver Nickel

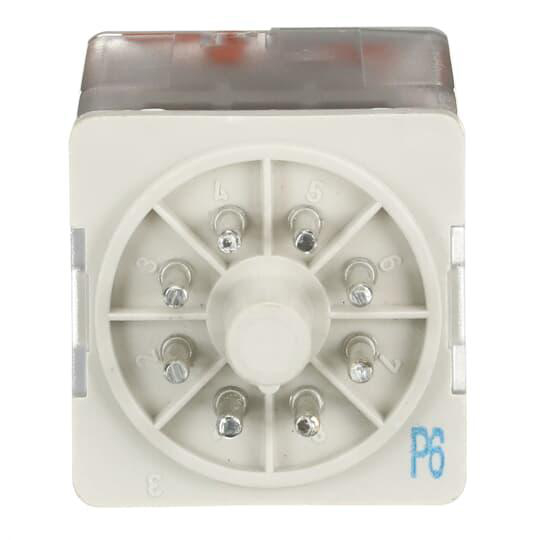

Mounting Type
8 Pin Socket
Number of Poles
1
Operating Cycles
20000000
Power Rating
2.8 VA at 50 Hz, 2.5 VA at 60 Hz
Resistance
7080
Size
1.38x1.38x2.14 Inches
Temperature Rating
-40 to 55 degrees C
Type
Universal

Manufacturer Information

Brand
ABB
Sub Brand
CR-U

General Product Info

12-Digit UPC
662019364711
GTIN
04013614498428
Product UPC
66201936471
