HUB RC101W SWITCH 15A SP TOGGLE COMBINATION SINGLE POLE WHITE | Electrozad South
Product image for HUB RC101W SWITCH 15A SP TOGGLE COMBINATION SINGLE POLE WHITE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

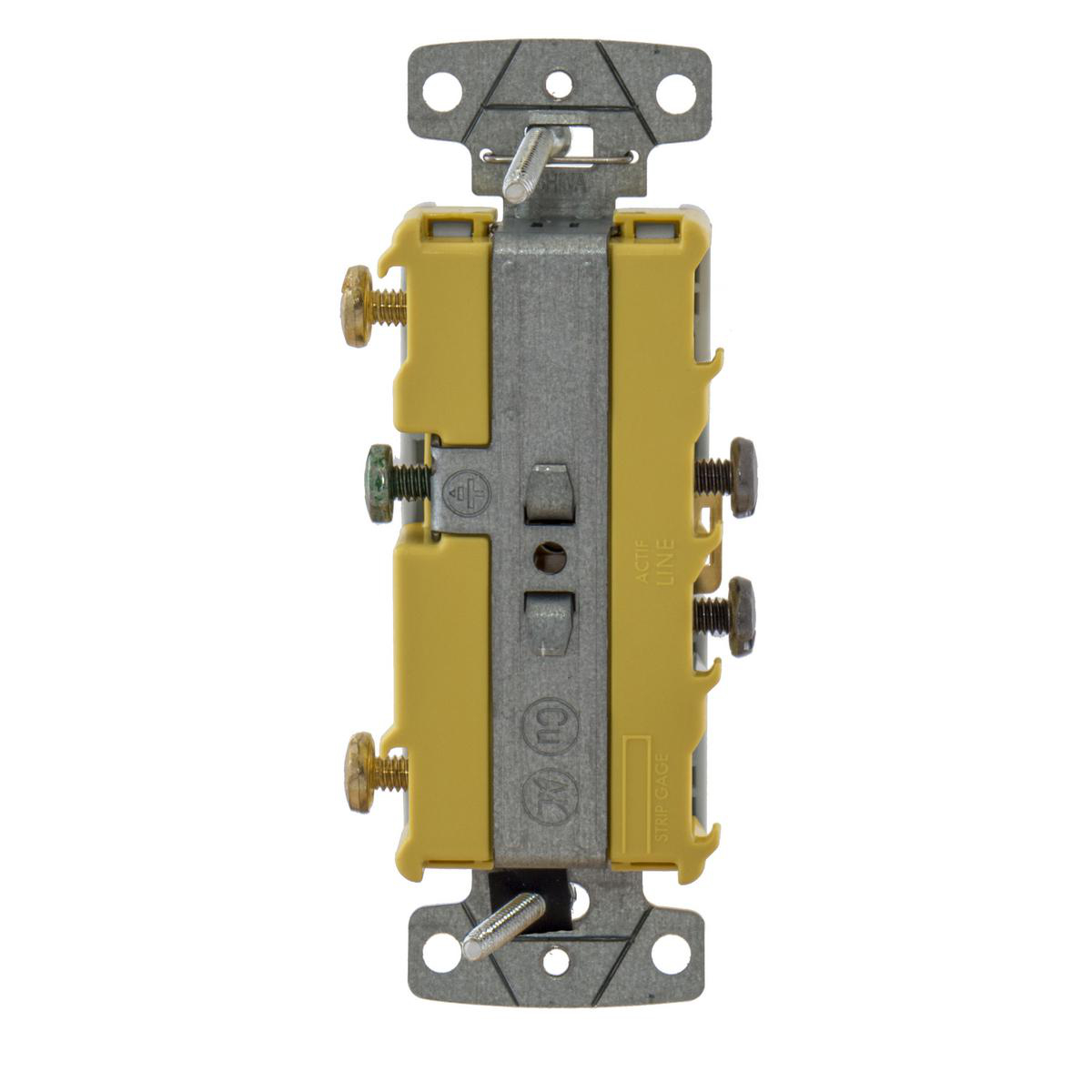

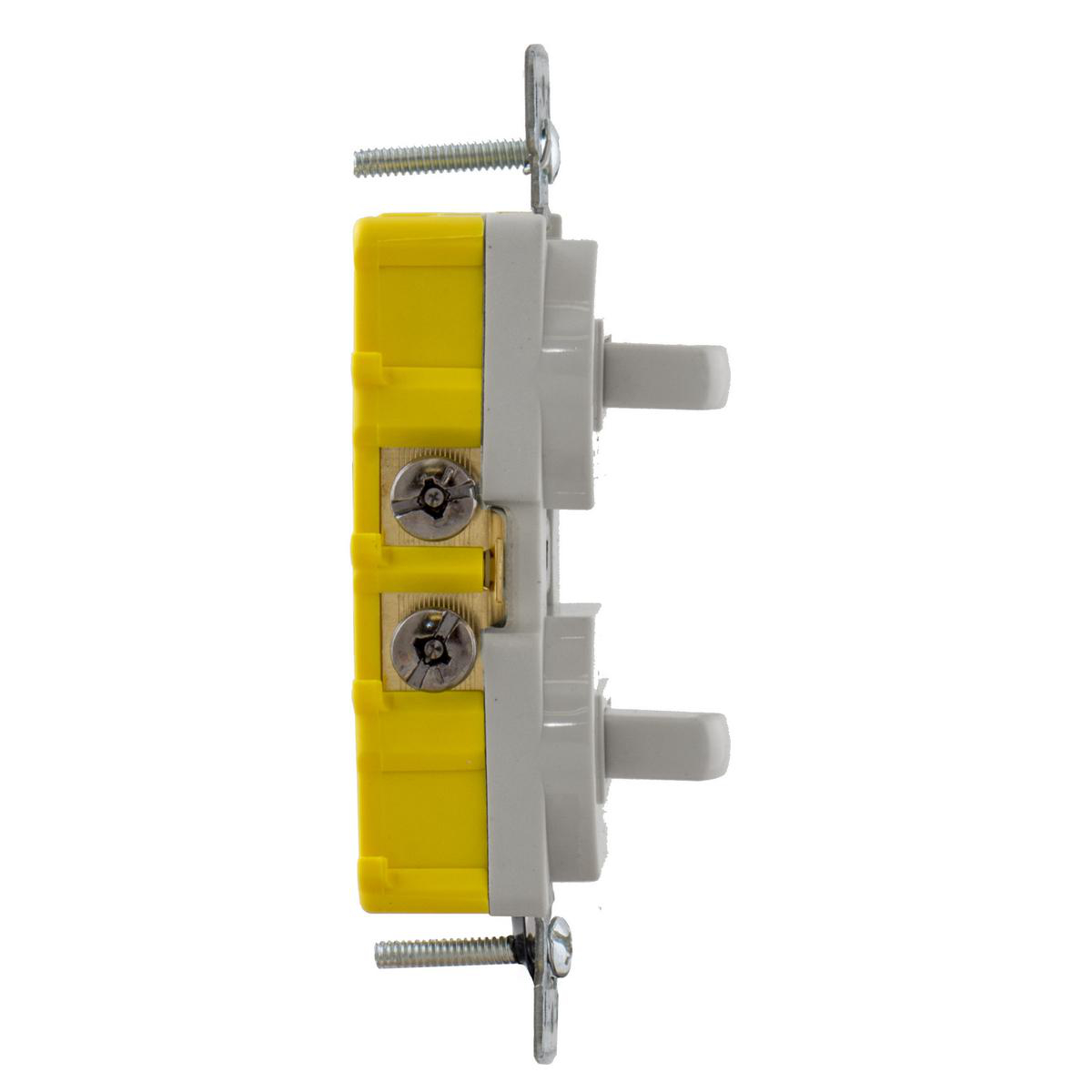

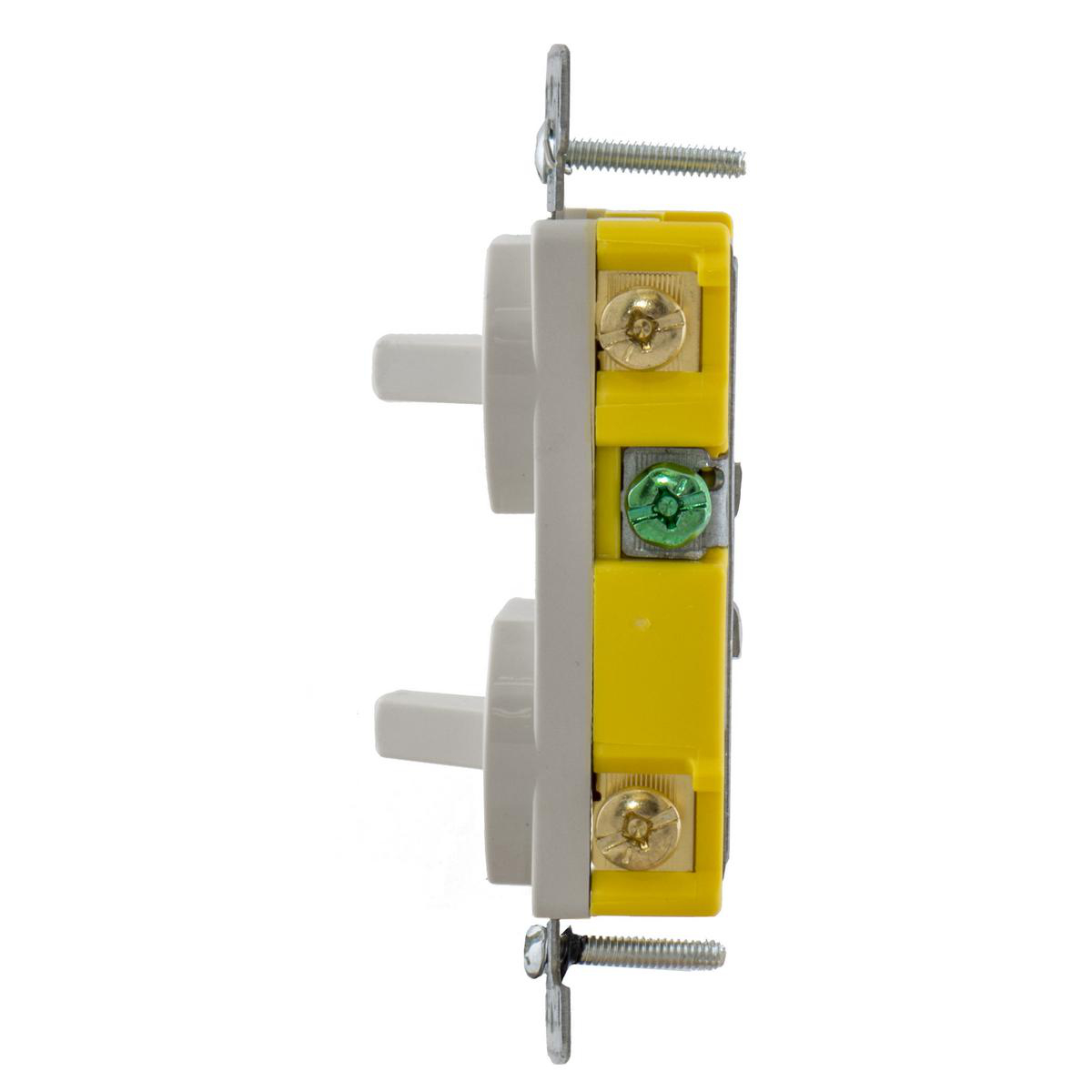

HUB RC101W SWITCH 15A SP TOGGLE COMBINATION SINGLE POLE WHITE

Manufacturer: Hubbell Wiring Devices | Catalog # RC101W | Electrozad South Part # 276554
$16.26 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
tradeSELECT® Combination toggle switch/device. 1-pole, 15 A at 120 VAC switch. Side-wire. Low profile. Self-grounding feature is standard. Smooth toggle action. Standard toggle switches provide the basic on/off control for home lighting and appliances. -20 to 60°C operating temperature. Mini-toggles provide for multiple switches in a compact single gang. Maximize control while maintaining function and appearance. Quiet snap action mechanism. Combination devices provide compact switches in a 1-gang opening. Elongated strap with continuous plaster ears to fit device flush to the wall surface. Multiple-drive slot/Phillips/Robertson head screws. High-visibility yellow base for easy installation in low light working conditions.

Technical Information

Action
Snap Switch
Actuator
Toggle
Amperage
15 A
Applications
Circuit Control
Contact Configuration
Two Position
Contact Rating
15A
Current
15 A
Mounting Type
Screw
Number of Poles
2
Operating Cycles
30k
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size
Standard Sized Product
Standard
UL
Switch Type
Toggle
TC Connection
Terminal Screws
Temperature Rating
-20 to 60 degrees C
Type
Standard
Voltage
120 V
Wattage
1800 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Combo Devices

General Product Info

12-Digit UPC
883778109799
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00883778109799
Product UPC
88377810979

Dimensions

Height
1.6 in
Length
4.200 in
Width
1.710 in

Certifications & Compliance

Country of Origin
China
