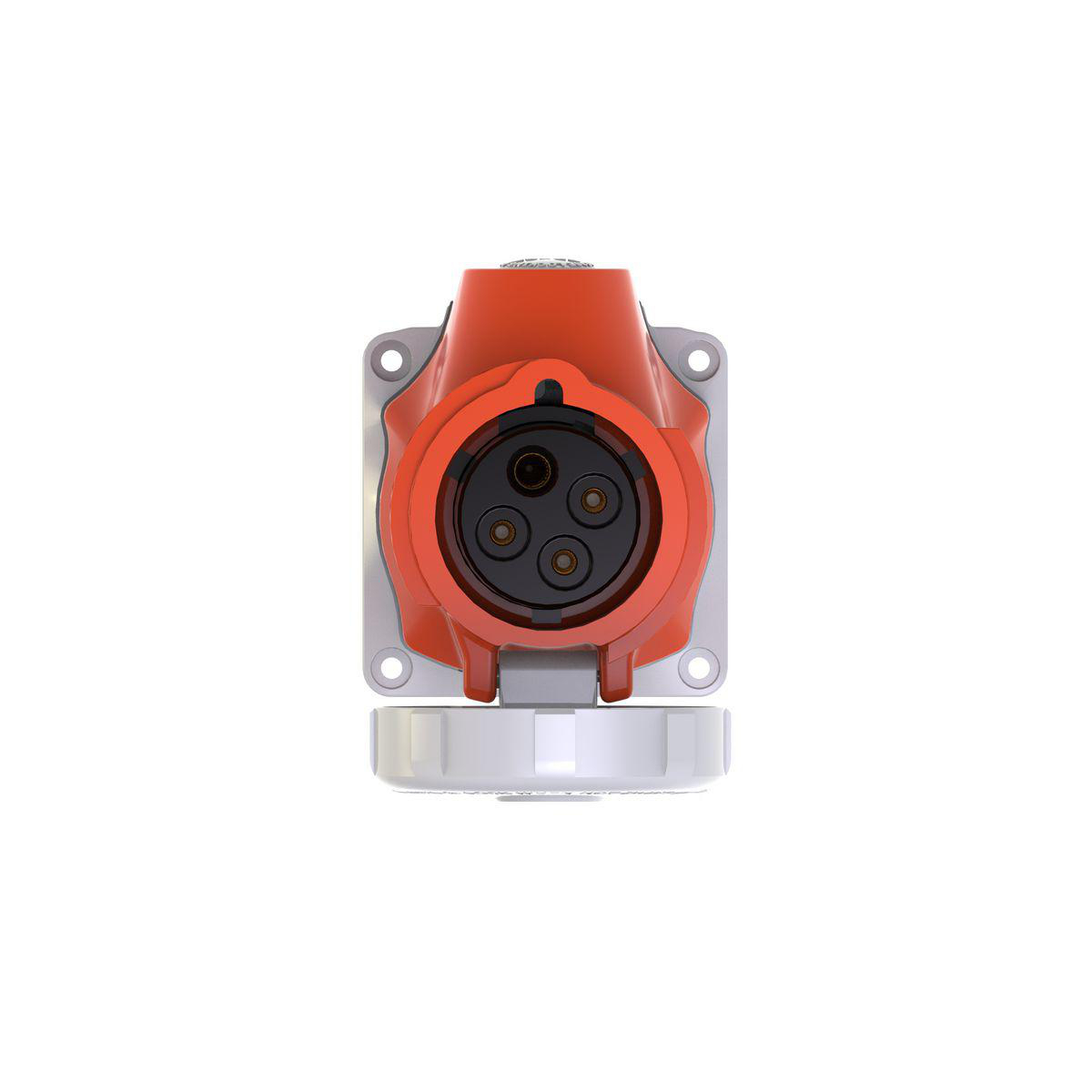

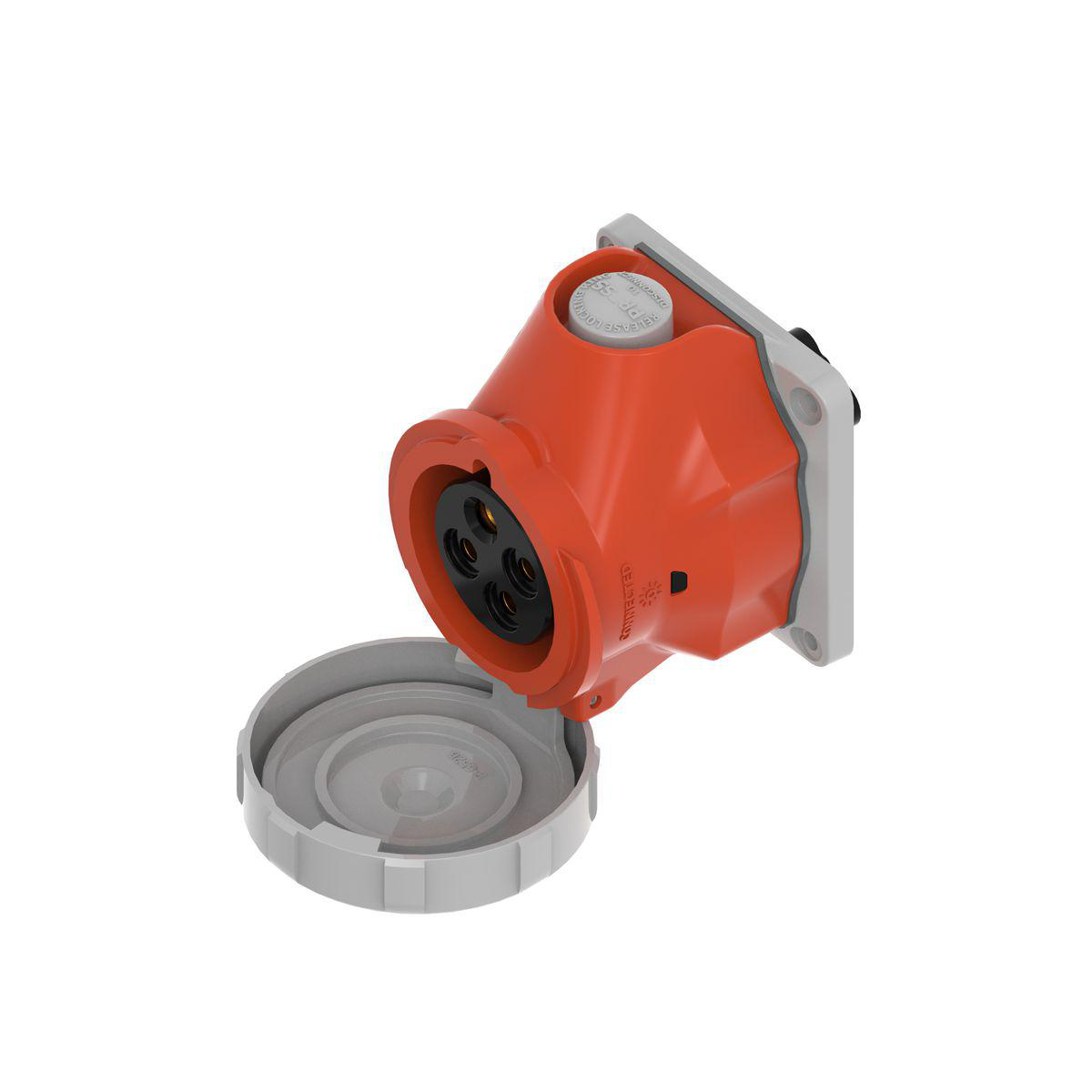

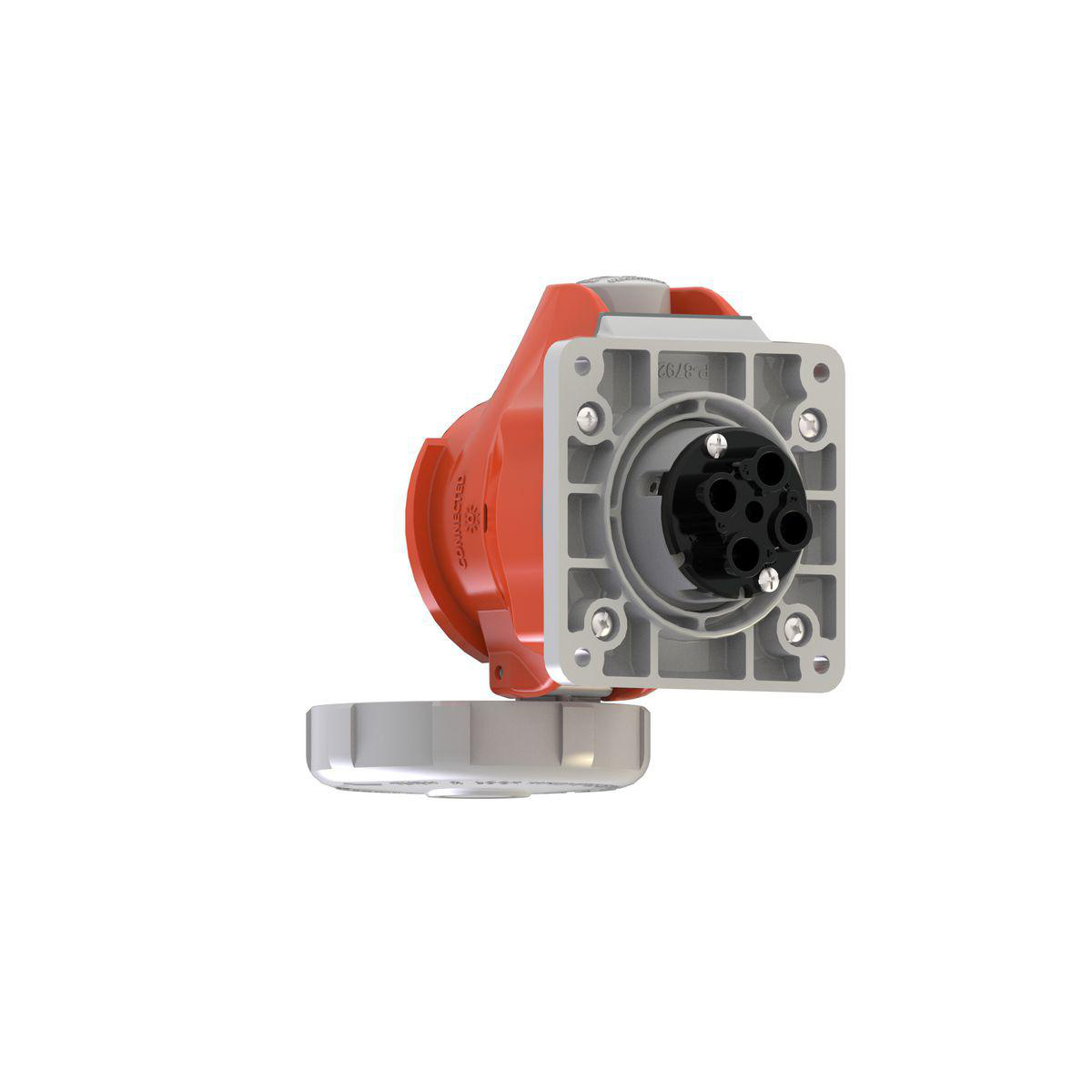

Product image for HUB HBLS430R7W RECEPTACLE P&SL 30A 3P4W 480V WATERTIGHT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HUB HBLS430R7W RECEPTACLE P&SL 30A 3P4W 480V WATERTIGHT

Manufacturer: Hubbell Wiring Devices | Catalog # HBLS430R7W | Electrozad South Part # 277083
$706.18 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
Advantage™ Series switch-rated IEC pin and sleeve device receptacle features UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Hubbell puts the Advantage™ into the palm of your hands with the easy-to-use leverage grip design from Hubbell. UL witnessed IP69k and UL Type 4X and 12. Device is built to withstand wet and harsh environments. Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected.

Technical Information

Amperage
30 A
Applications
Industrial/Commercial
Conductor Size
12-8 AWG
Cord Type
All Portable
Current
30 A
Material
Brass/Non-Metallic
Mounting Type
Cord
Number of Poles
3
Number of Wires
4
Size
Standard Sized
Style
IP69k NEMA 4X
TC Connection
Pressure Screw Terminal
Type
Switched
Voltage
480 V
Wattage
14400 W
Wire Size
#12AWG-#8AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
IEC 309 Pin and Sleeve

General Product Info

12-Digit UPC
783585550480
Color
Red
GTiN
00783585550480
Product UPC
78358555048

Dimensions

Height
4.620 in
Length
6.000 in
Width
5.6 in

Certifications & Compliance

Country of Origin
Puerto Rico
