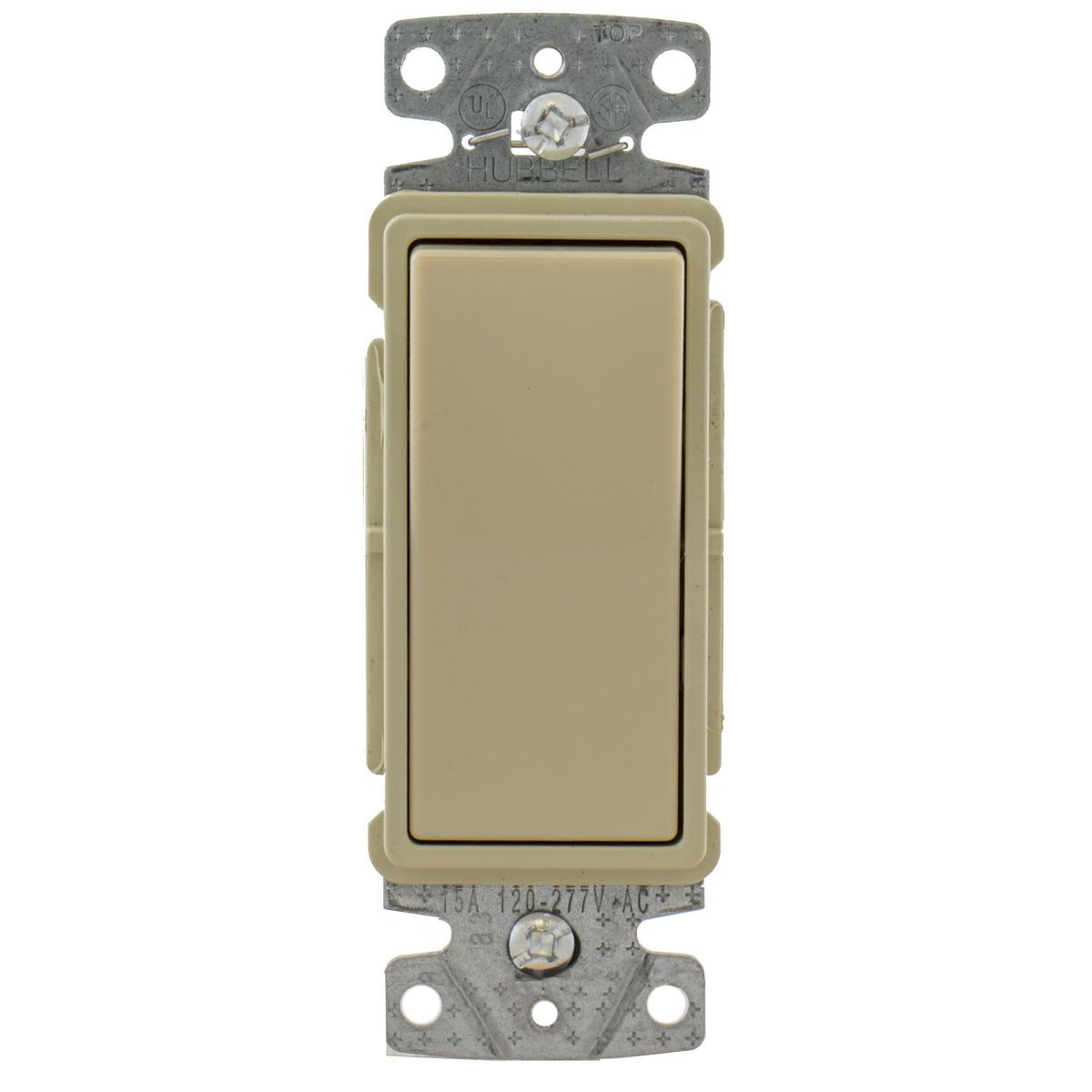

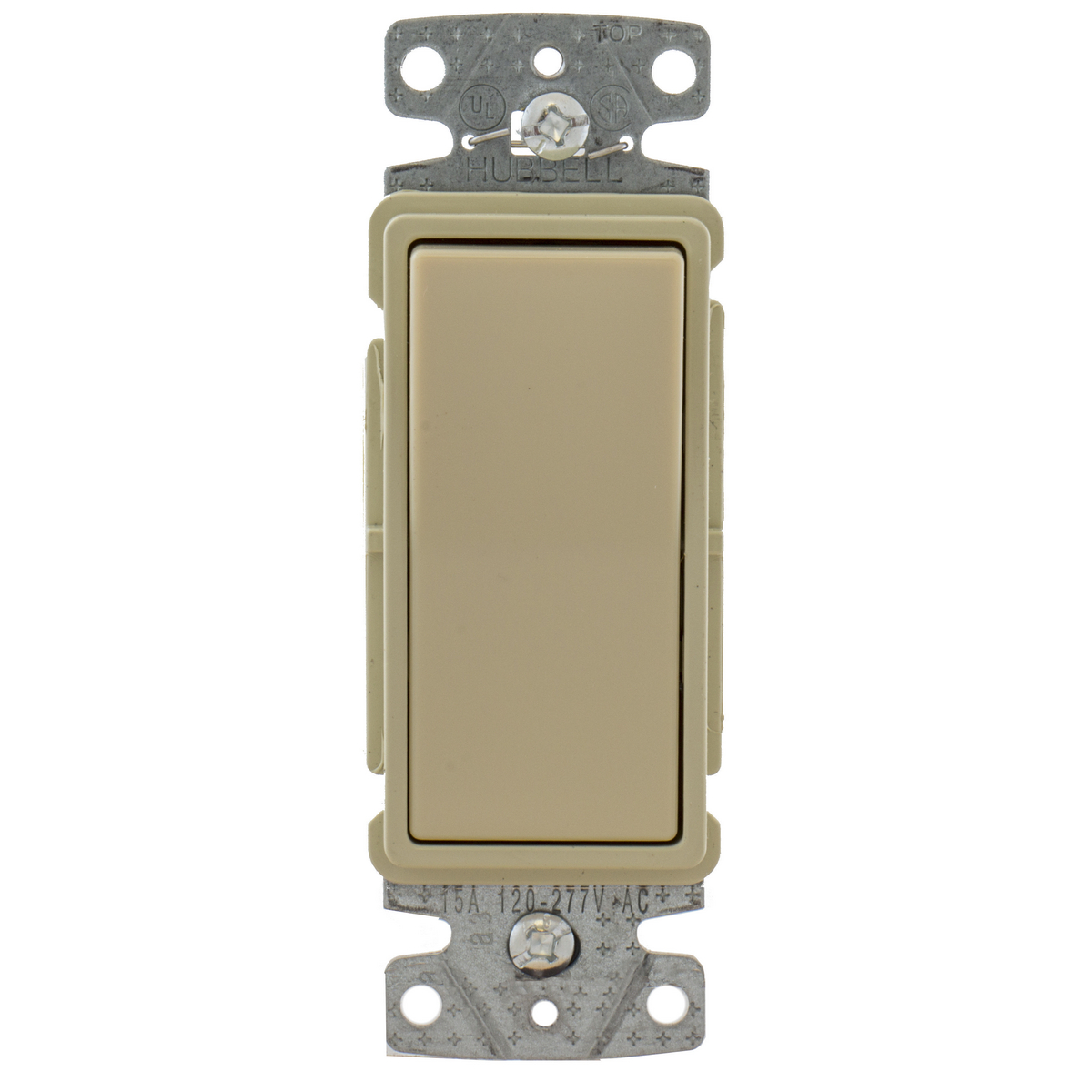

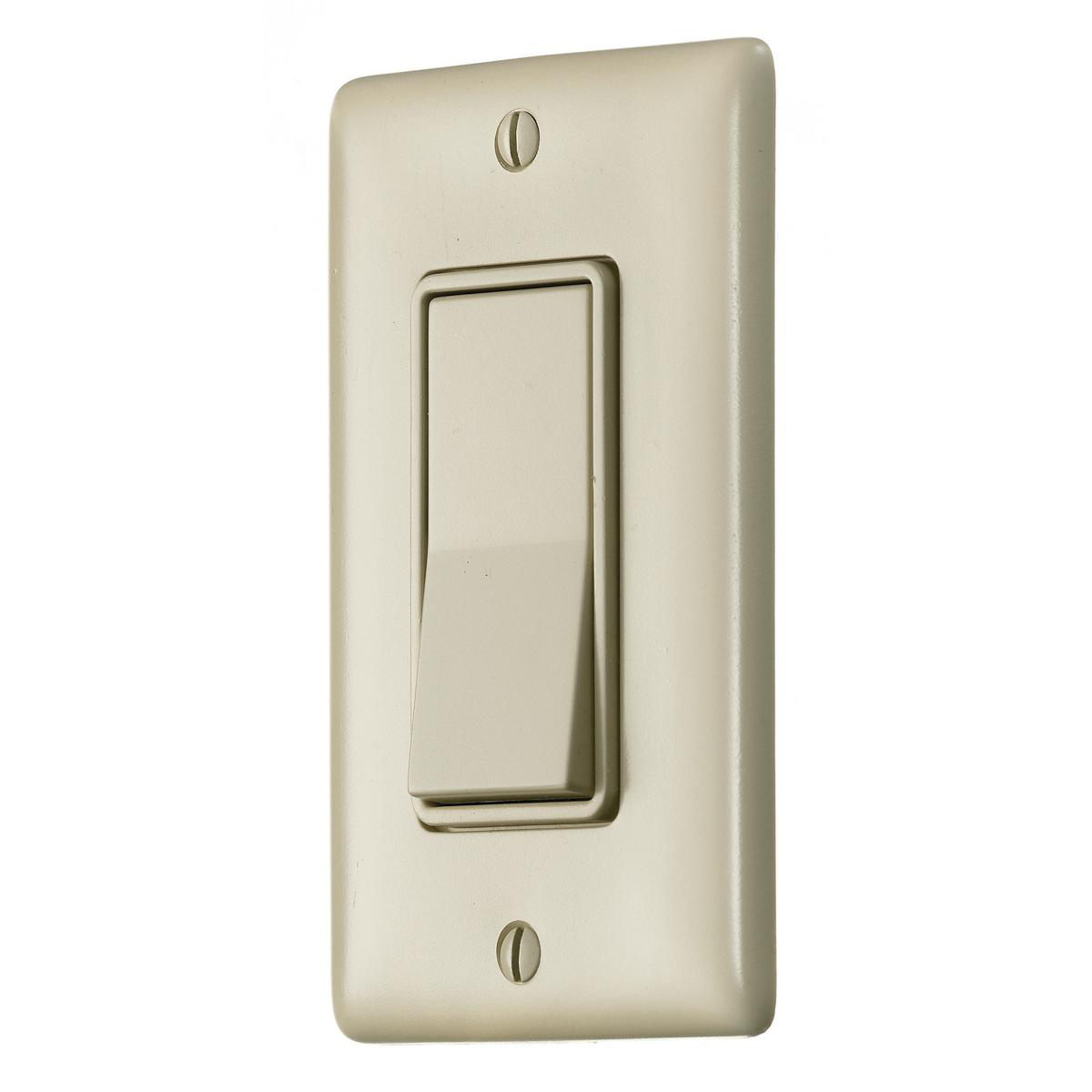

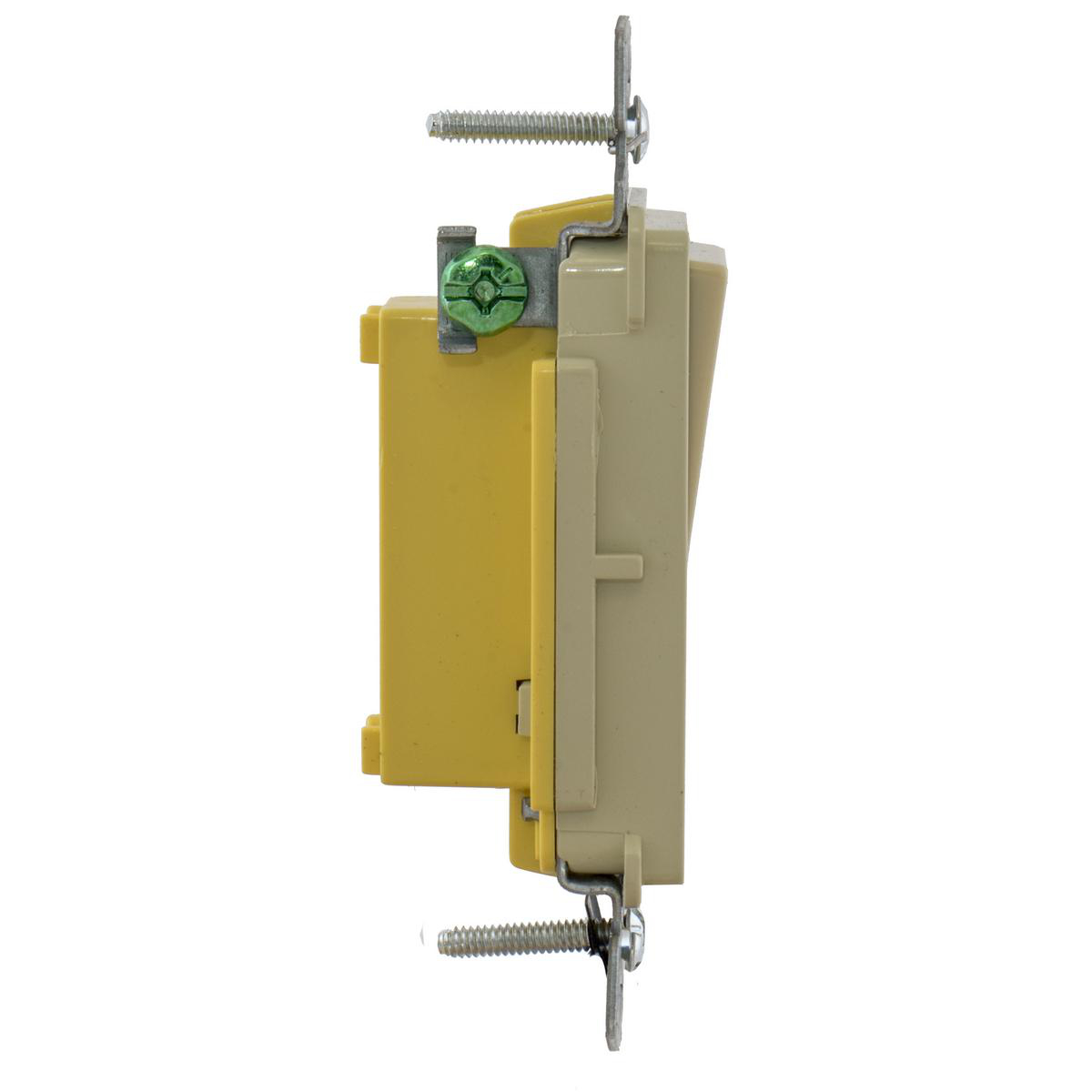

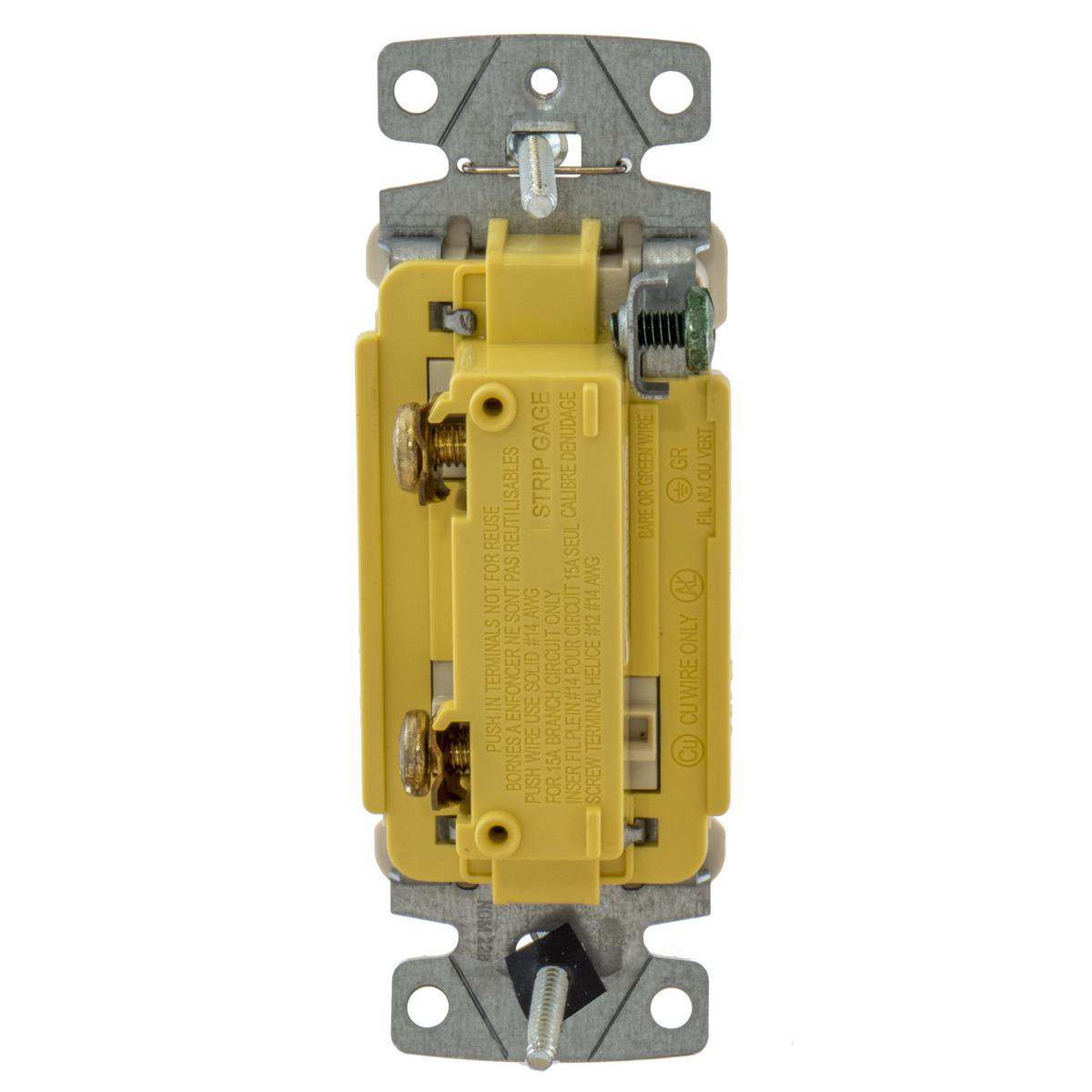

Product image for HUB RSD115I SWITCH 15A 120V 277V RESIDENTIAL ROCKER SWITCH 1POLE PUSHBACK & SIDE WIRED IVORY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

HUB RSD115I SWITCH 15A 120V 277V RESIDENTIAL ROCKER SWITCH 1POLE PUSHBACK & SIDE WIRED IVORY

Manufacturer: Hubbell Wiring Devices | Catalog # RSD115I | Electrozad South Part # 277780
$4.41 /ea
pc
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
tradeSELECT® Decorator quiet rocker switch. 1-pole and 15 A at 120 to 277 VAC switch. Self-grounding, push, back and side-wire. Smooth, quiet rocker. Ultrasonically welded cover and base. -20 to 60..C operating temperature.

Technical Information

Action
Positive Snap
Actuator
Rocker
Applications
Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Number of Poles
1
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
4155 W
Size
Standard Sized
Standard
CSA,UL Standard 20
TC Connection
Push Wire, Back and Side Wire
Temperature Rating
-20 degrees C Minimum without Impact, 60 degrees C Maximum Continuous
Terminal Type
Screw
Type
General Purpose, Standard
Wattage
4,155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101120
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
GTIN
00883778101120
Product UPC
88377810112

Dimensions

Height
1.4 in
Length
4.100 in
Width
4.300 in

Certifications & Compliance

Country of Origin
China
