LUTRON AYCL-253P-WH DIMMER ARIADNI 1POLE OR 3WAY 250W LED OR 600W INCANDESCENT WHITE

Manufacturer: Lutron Dimmers | Catalog # AYCL-253P-WH | Electrozad South Part # 277806

$51.78 /ea
pc
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check another branch

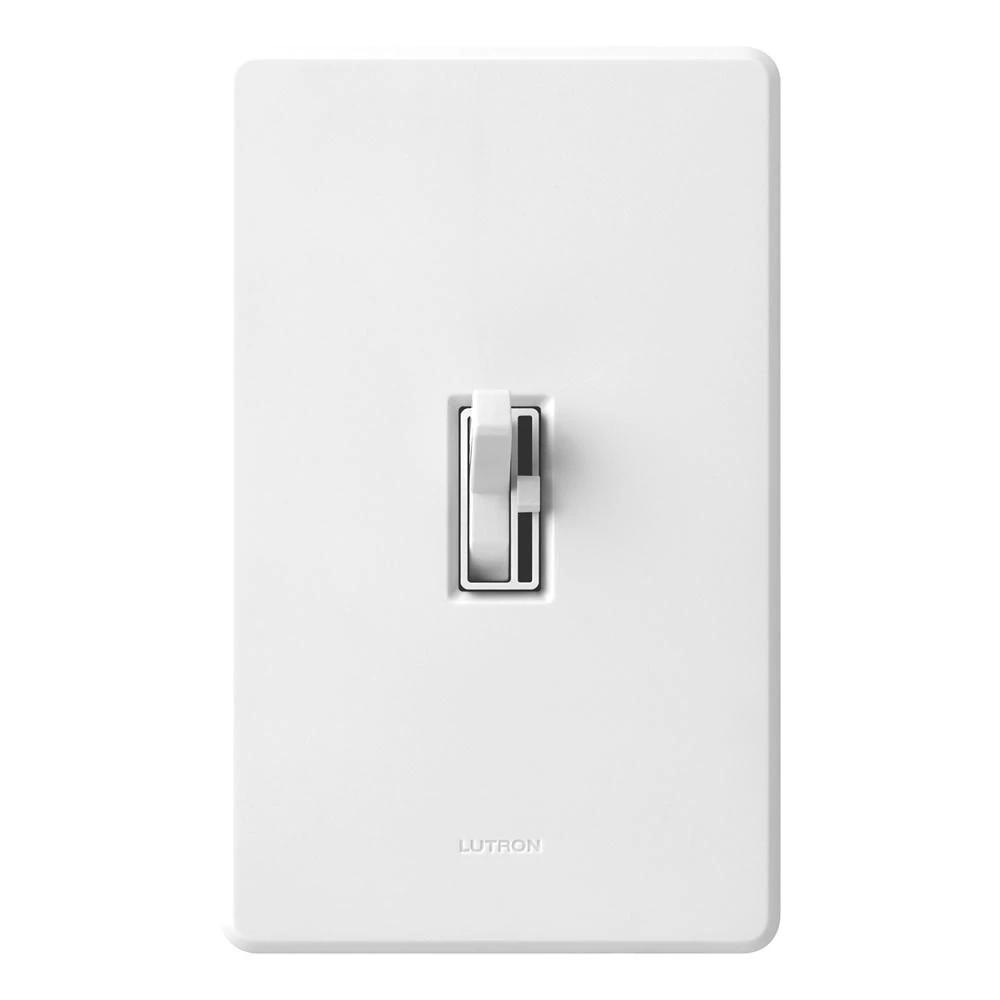

The Ariadni LED+ dimmer switch works with dimmable LED and CFL screw-in bulbs up to 250-Watt and is also compatible with up to 600-Watt of standard incandescent and halogen bulbs, allowing you to control all 4 bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, Eco Smart and Lighting Science. The Ariadni/Toggler LED+ dimmer switch matches your existing toggle switches. It features a slider to adjust your light to any activity and the toggle switch turns your lights off or on returning the lights to your favorite level. Coordinating Fassada wall plate sold separately.

Technical Information

Actuator
Toggle Switch
Applications
Lighting
Bulb Compatibility
Dimmable CFLs,Dimmable LEDs,Halogens,Incandescents
Connection Type
Screw Terminal,Screw-Type Terminals
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Material
Metal,Plastic
Max Wattage
250 W
Mounting Type
Wallbox
Number of Poles
1
Operating Temperature
32 To 104 degrees F

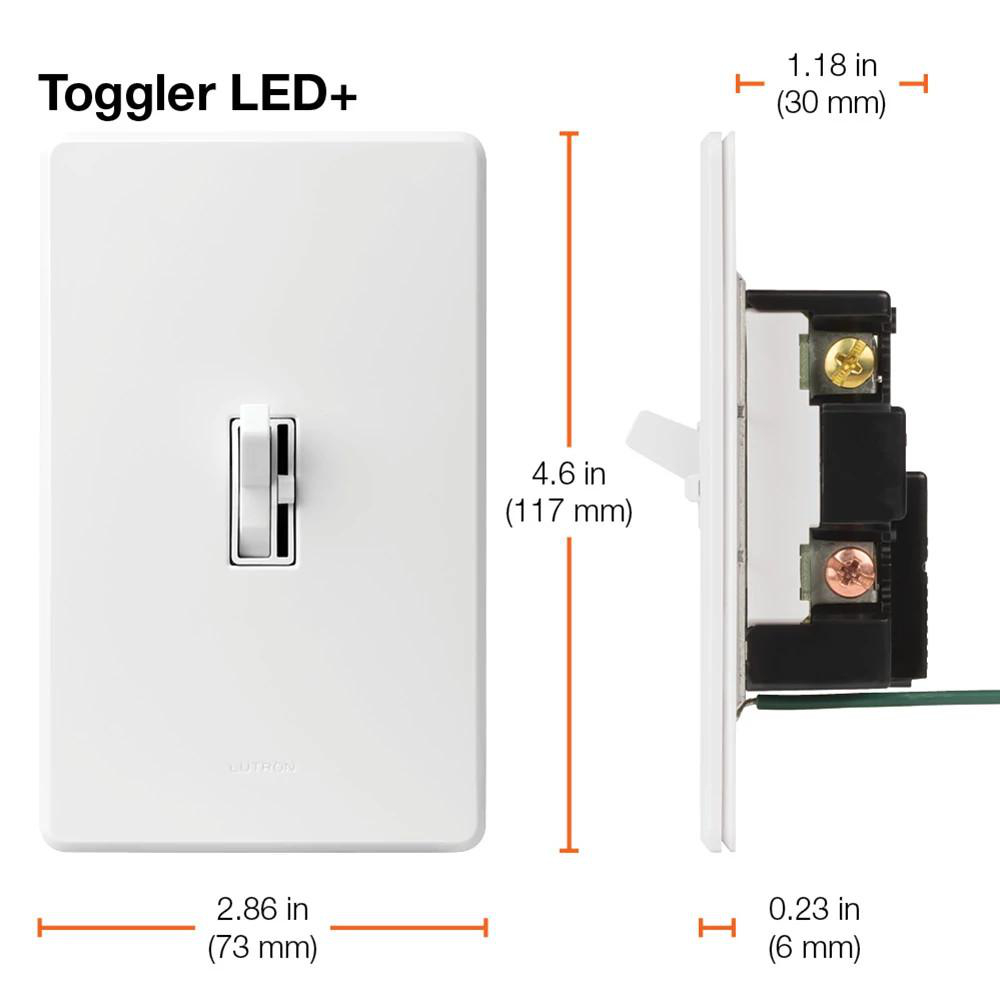

Size
73 in
Standard
NEMA SSL-7A Type 2,UL1472 CSA C22.2 184.1
TC Connection
Screw terminals
Type
3-Way/Single-Pole,Preset Dimmer
Voltage
120 V
Wattage
600 W

Manufacturer Information

Brand
Ariadni
Sub Brand
Ariadni

General Product Info

12-Digit UPC
784276090100
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTIN
00784276090100
Product UPC
78427609010

Certifications & Compliance

Country of Origin
Mexico
