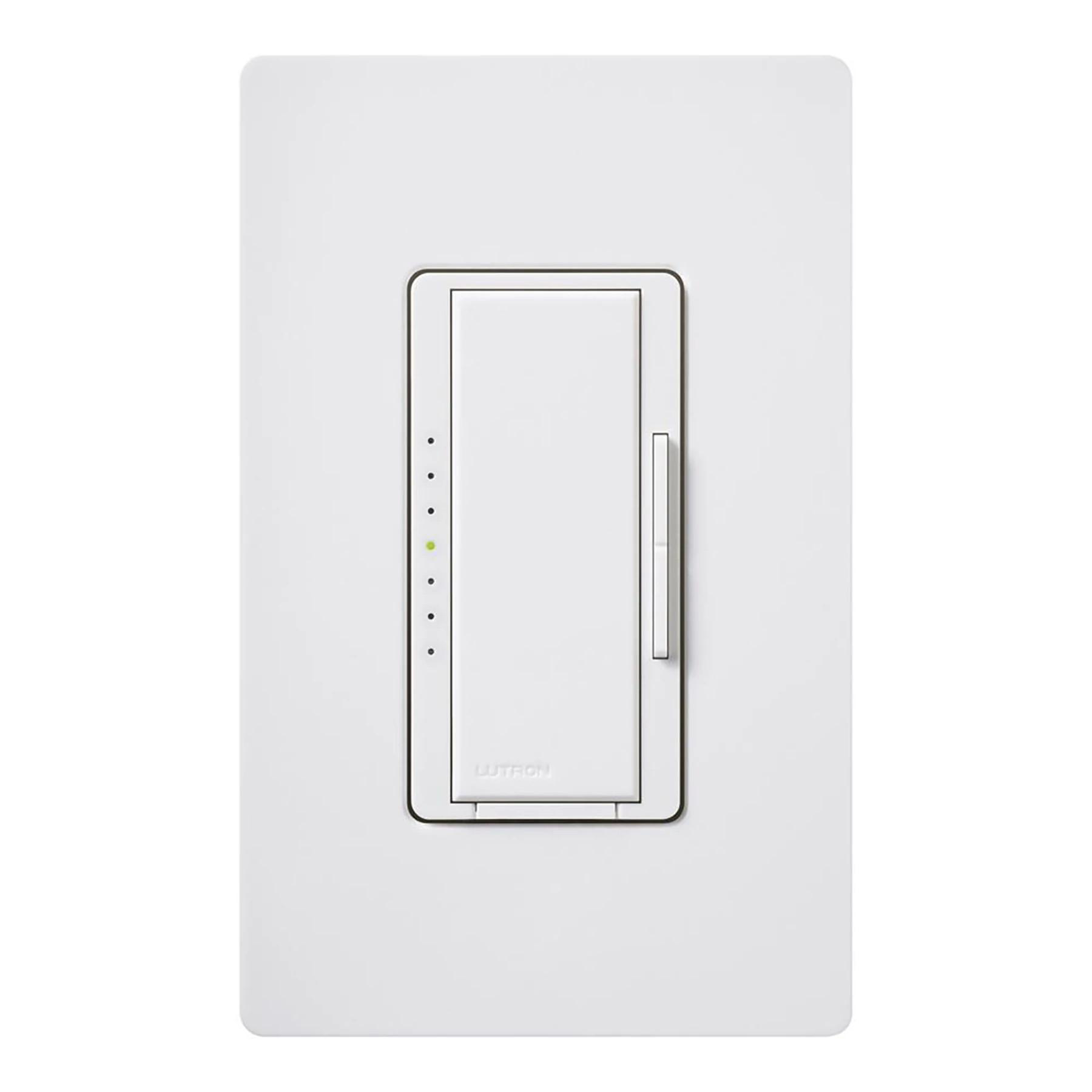

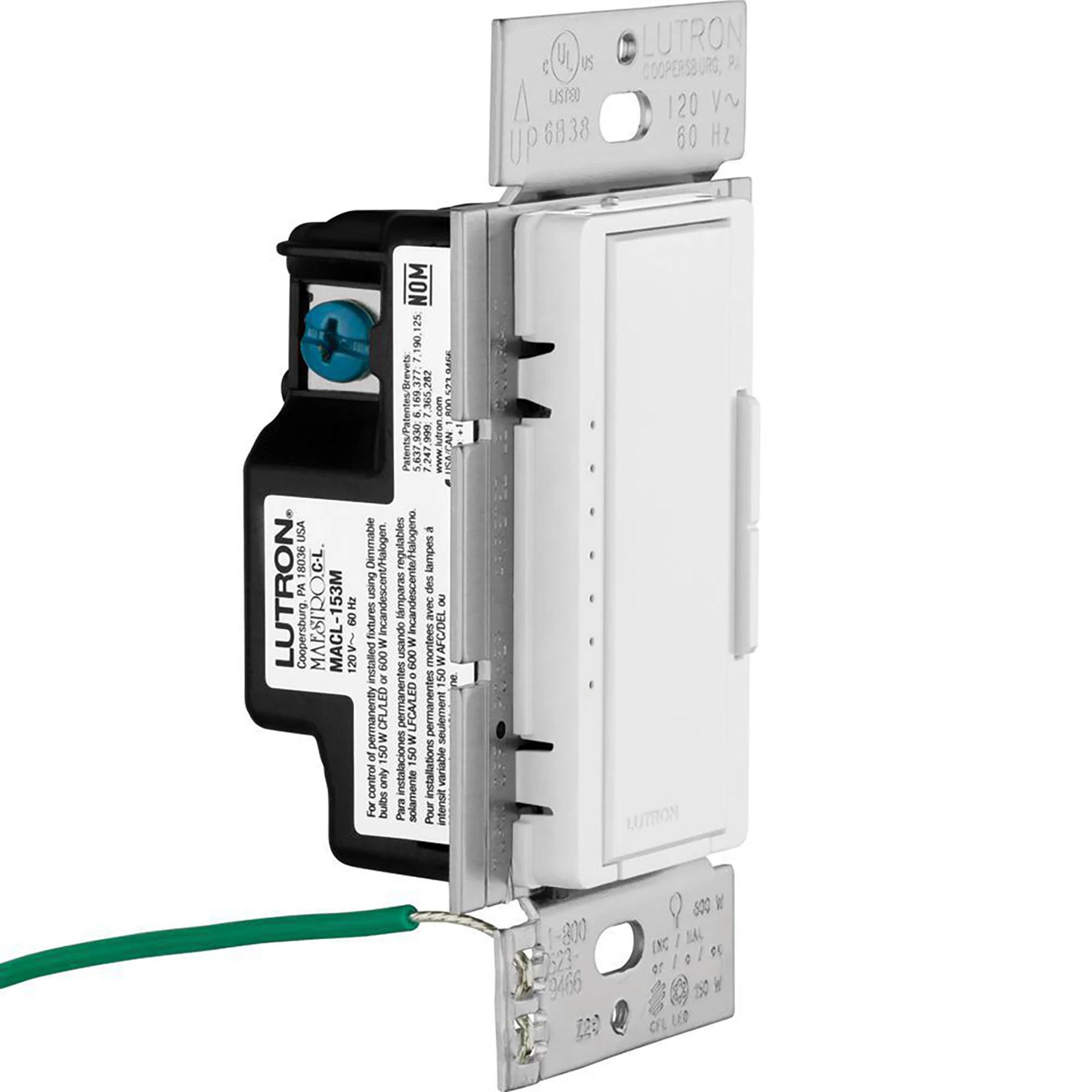

Dimmer Maestro single pole 3-way multi location 600W 120V white

Manufacturer: Lutron Dimmers | Catalog # MACL-153MH-WH-C | Electrozad South Part # 278499
$44.85 /ea
pc
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

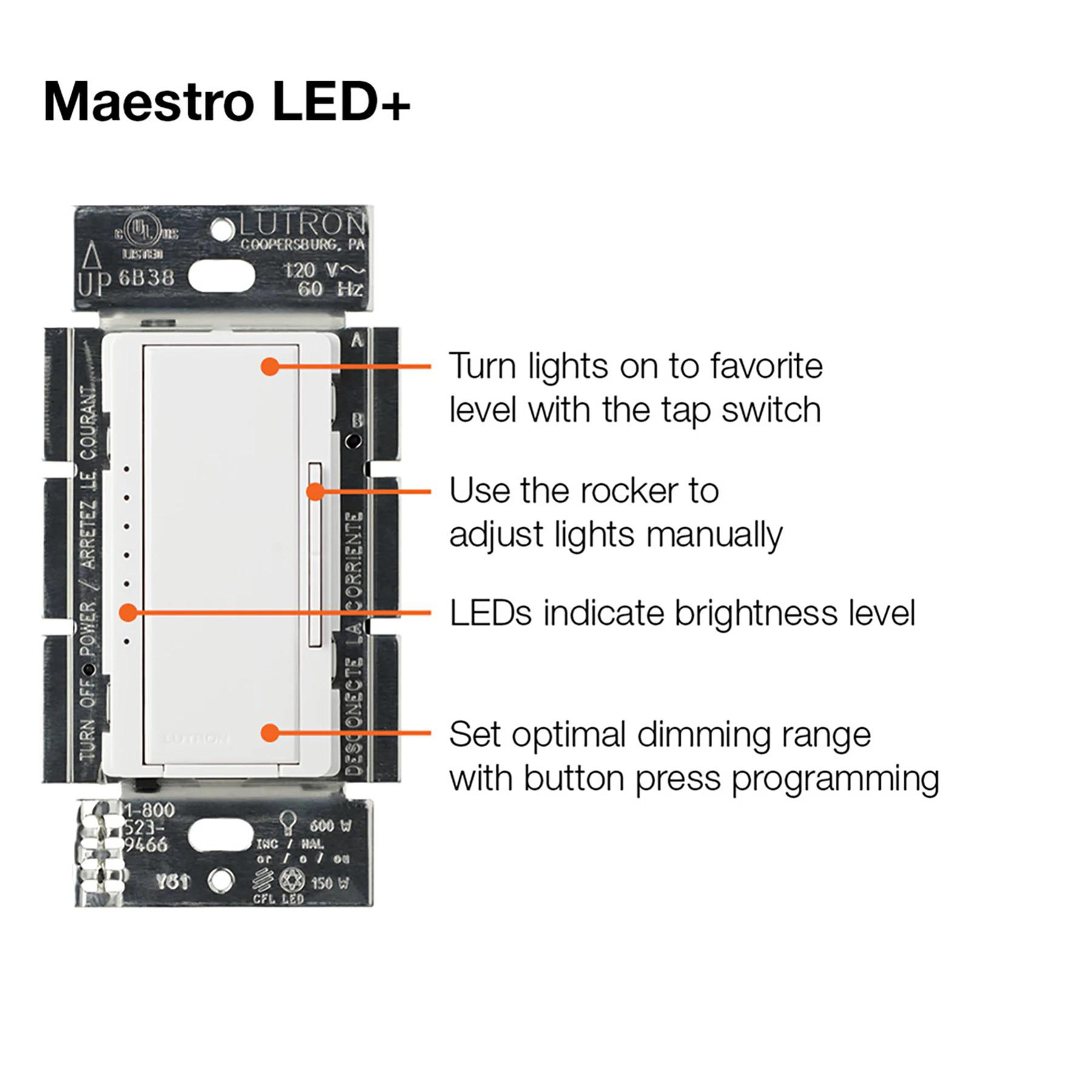

Offers more reliable dimming performance over incandescent dimmers when controlling CFLs and LEDs. Compatible with the broadest range of dimmable CFLs and LEDs. Multi-location dimming from up to 10 total locations with Maestro companion dimmers. Also works with a traditional 3-way switch. Delayed fade-to-off allows time to exit a room before lights turn off. Matches the Maestro family of controls, including dimmers, switches, occupancy sensors, and more.

Technical Information

Actuator
Tapswitch
Applications
For Dimmable LED/CFL (Screw Base), Incandescent or Halogen Lighting Control
Connection Type
Screw Terminal
Enclosure
Plastic
Material
Metal/Plastic
Number of Poles
1
Operating Temperature
0 to 40 degrees Celsius
Power Rating
600 W Incandescent/Halogen, 150 W LED/CFL

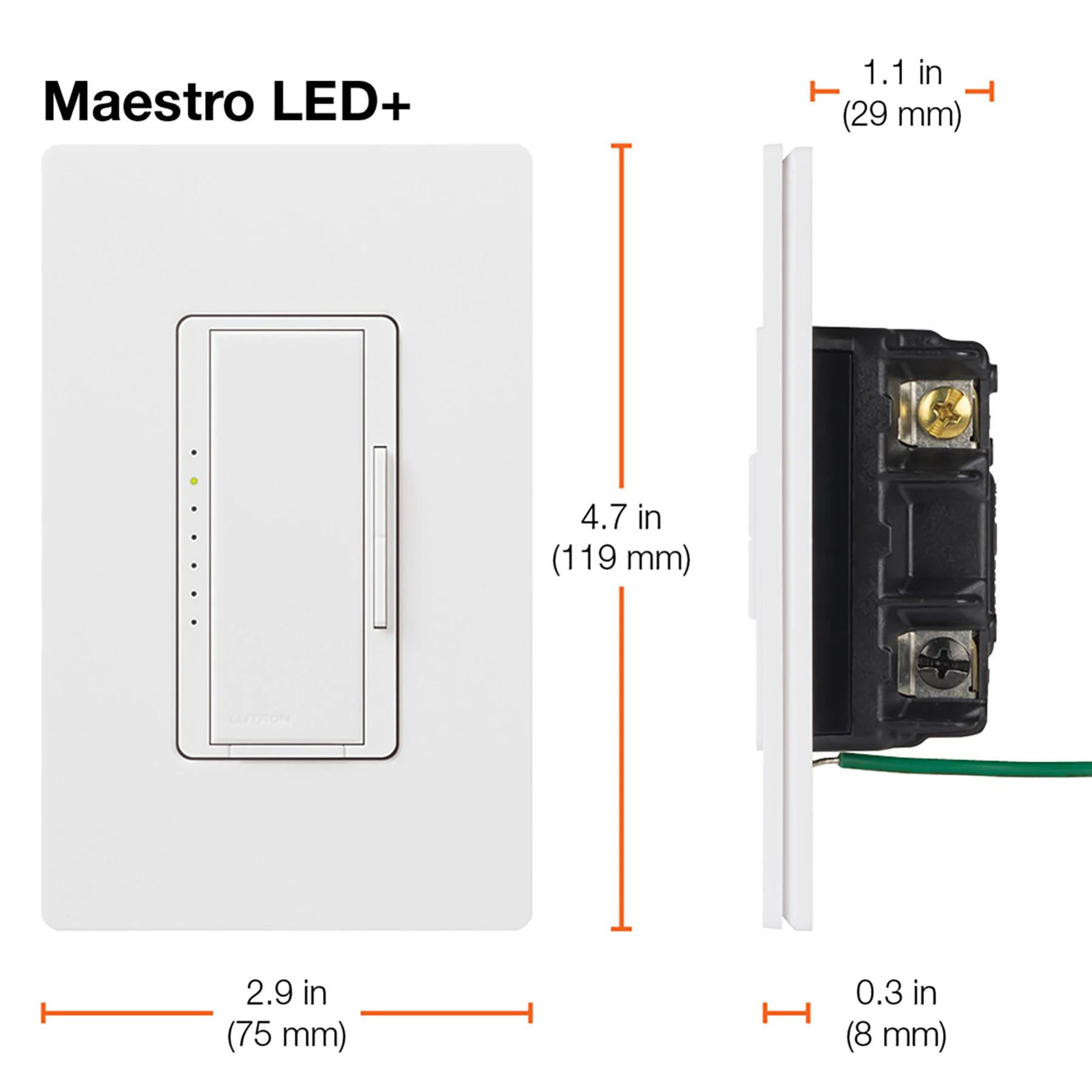

Size
4.69 in (119 mm) x 2.94 in (75 mm)
TC Connection
Screw terminals
Type
3 Way, Multi-Location, Digital Fade, Tapswitch
Wattage
600 W

Manufacturer Information

Brand
Lutron
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276010580
Environmental Conditions
0 to 90 PCT
GTIN
00784276010580
Product UPC
78427601058
