Sensor occupancy switch 3A/5A clamshell white

Manufacturer: Lutron Dimmers | Catalog # MS-OPS5MH-WH-C | Electrozad South Part # 278518
$43.47 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

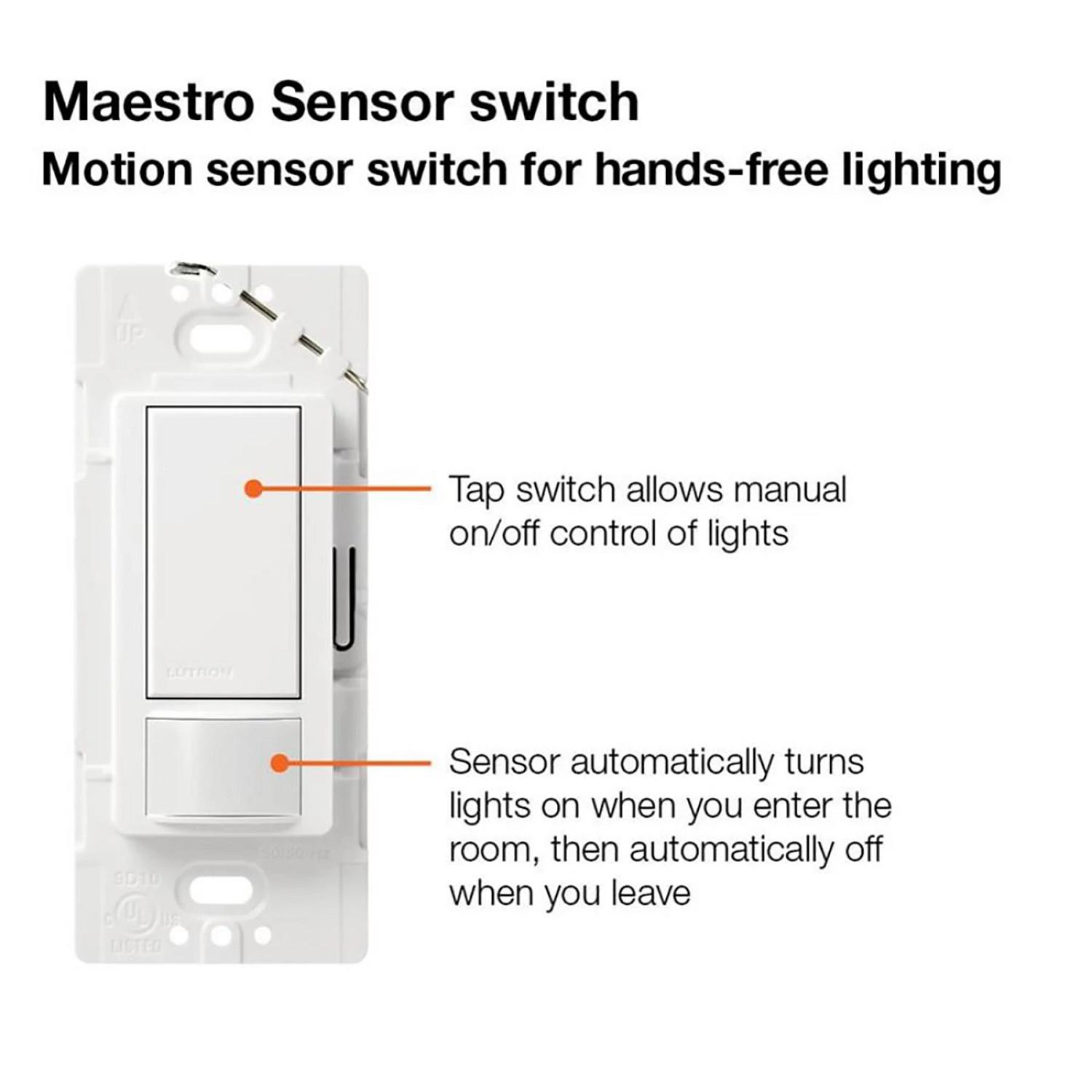

MAESTRO® Occupancy sensing switch combines a MAESTRO® switch with a passive infrared occupancy or vacancy sensor. Single-pole/3-way/multi-location. Occupancy version can be set to Auto-ON/auto-OFF or manual-ON/auto-OFF. Adjustable timeout (1, 5, 15 or 30 minutes) and high/low sensitivity adjustment. Crush/tamper resistant lens. Smart ambient light detection. Adaptive switching algorithm for extended relay life. XCT™ technology for fine motion detection.

Technical Information

Applications
For Lighting Control
Enclosure
Plastic
Material
Plastic
Mounting Type
Wall, Flush
Number of Poles
1
Operating Temperature
0 to 40 degrees Celsius
Response Time
1, 5, 15, 30 min
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Type
Passive Infrared
Temperature Rating
0 degrees C to 40 degrees C
Type
Multi-Location, 3 Way, Indoor

Manufacturer Information

Brand
Lutron
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557983969
Color
White, Gloss
Environmental Conditions
0 to 90 PCT
GTIN
00027557983969
Product UPC
02755798396
