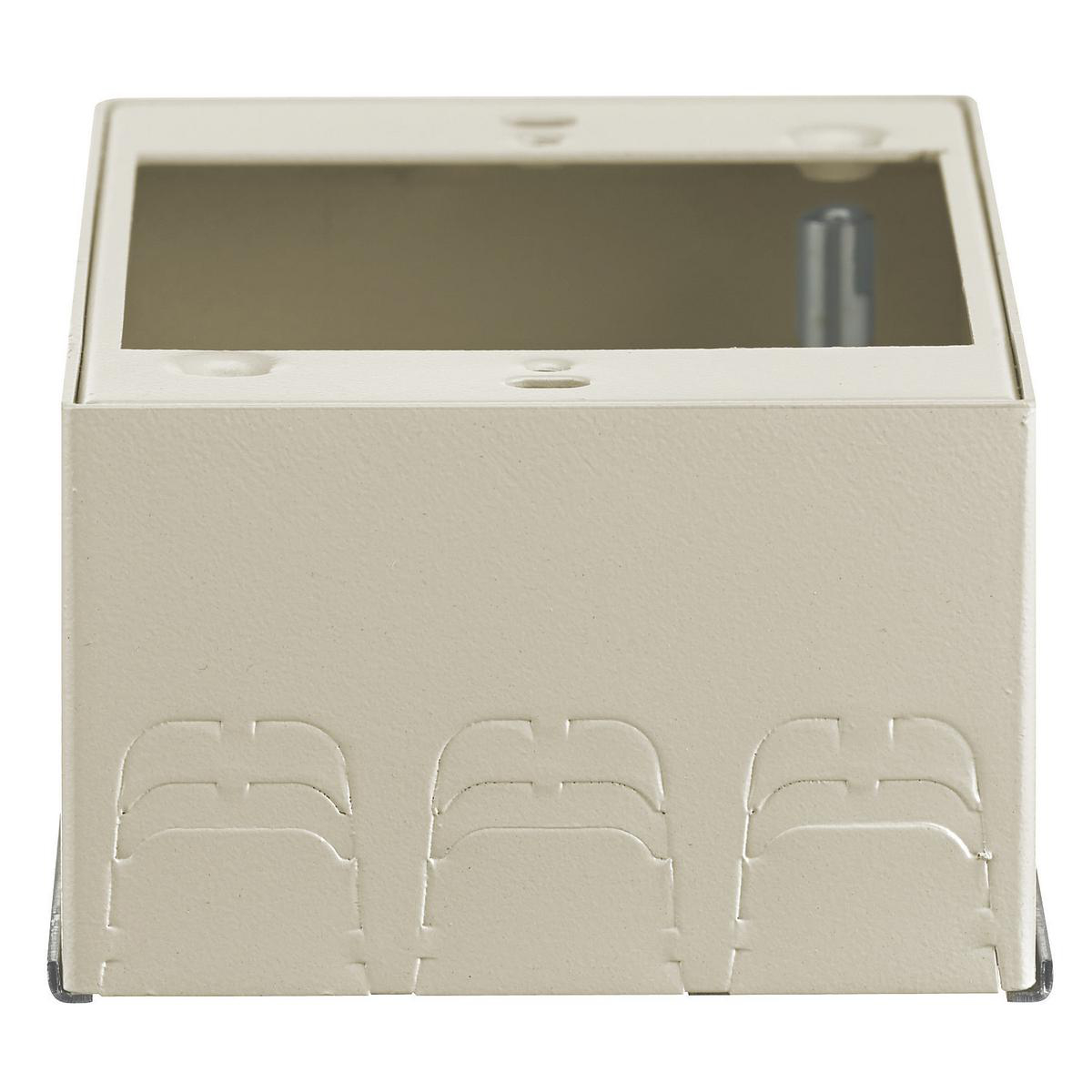

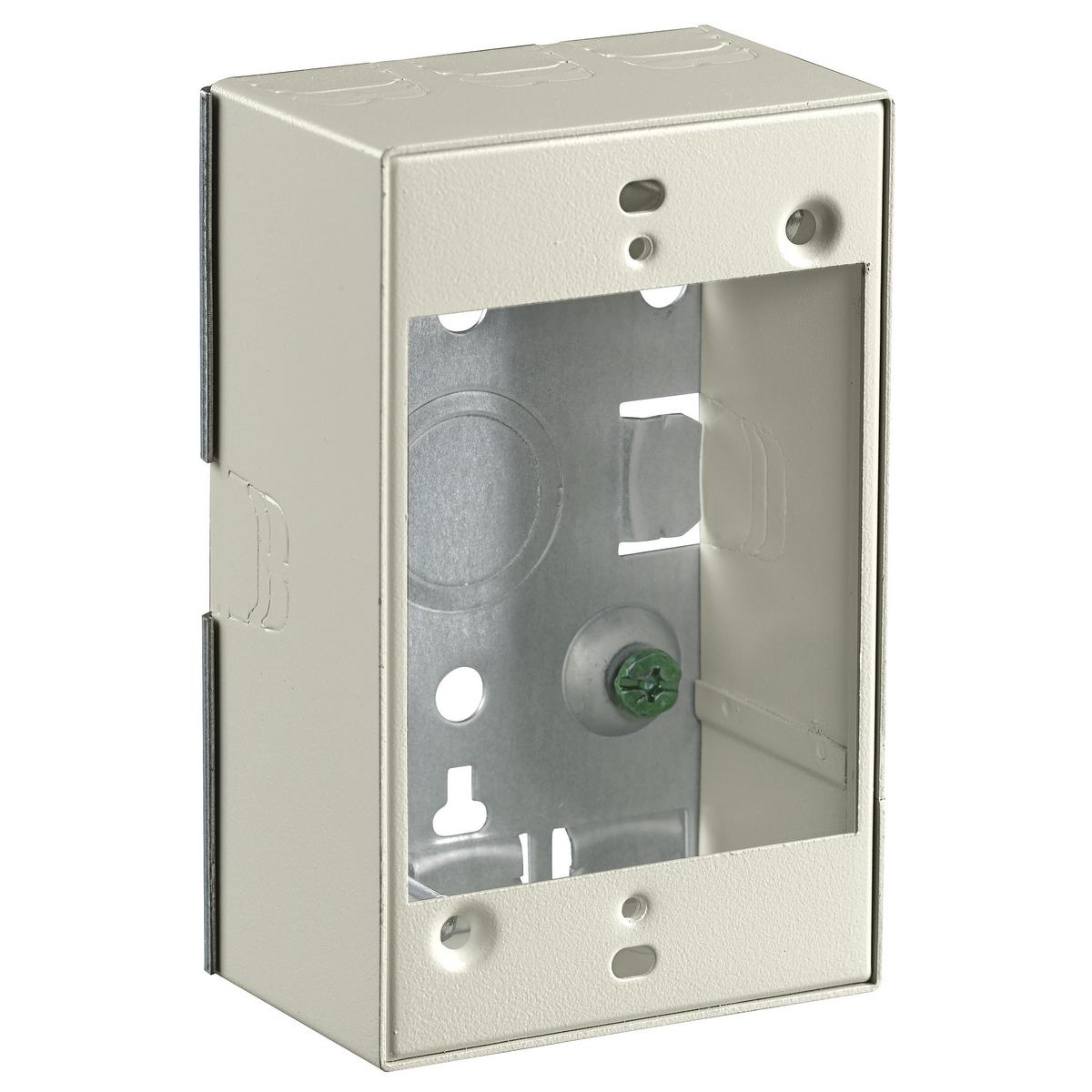

Box receptacle 1-gang standard ivory

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5748IVA | Electrozad South Part # 278937
$20.39 /ea
pc
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL P WARRANTY URL
Standard receptacle box for use with HBL500, HBL700 and HBL750 series metal raceway.

Technical Information

Applications
HBL500/700/750 Series Metal Raceway
Cable Entry
1/2 in NPT
Enclosure
NEMA 1 Rating
Material
Stainless Steel
Mounting Type
Surface, Vertical
Number of Gangs
1
Standard
CSA,UL
Style
Standard
Type
Standard

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Metallic Raceway Products

General Product Info

12-Digit UPC
783585423609
Color
Ivory
Construction
1-1/2" steel spindles, high-impact ABS plastic rollers and simple clips
Finish
Matte
GTIN
00783585423609
Product UPC
78358542360

Dimensions

Depth
44.45 mm
Height
1.9 in
Length
115.32 mm
Width
3 in

Certifications & Compliance

Country of Origin
China
Overview
  • Box design allows standard wallplates to be mounted flush with virtually no perimeter profile exposed
  • Rounded corners with no sharp edges
  • For use with HBL500, HBL700 and HBL750 Series Raceway
  • Hubbell Handi-Screw® eases installation by eliminating difficult to install long screws
  • One seam construction provides a clean look
