Connector wire push-in 2-port 600V red 100/box

Manufacturer: Ideal Industries | Catalog # 30-1032 | Electrozad South Part # 280902
$16.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure D BRAND LOGO IMAGE URL G USERS MANUAL URL

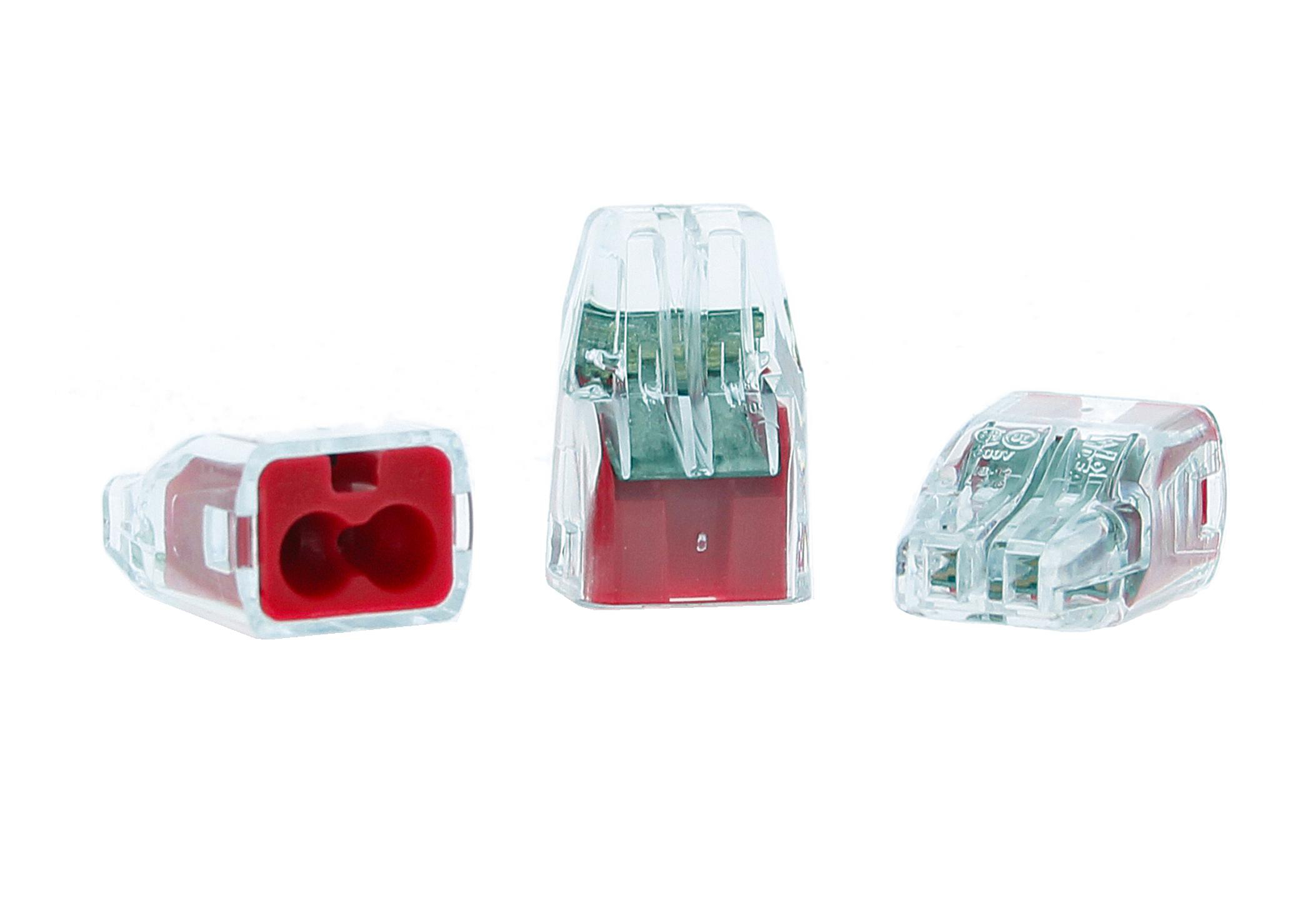

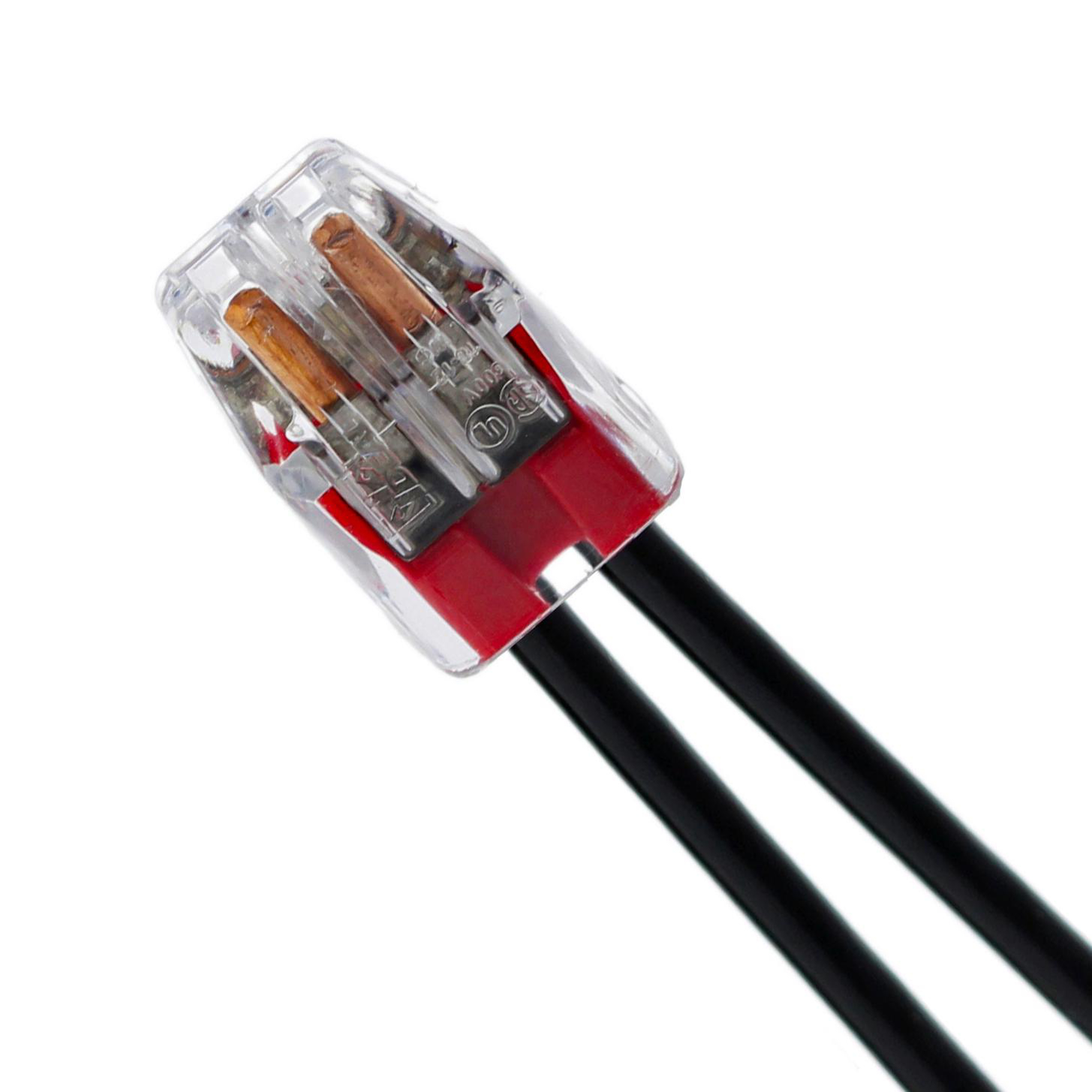

In-Sure™ Push-in wire connector. No-twist connection reduces repetitive motion fatigue. Low insertion force for fast and easy connections. Compact size makes installation easy. Clear shell gives visual verification of connection. UL listed to 486C and CSA certified to C22.2 No.188 UL 467 listed for grounding and bonding applications. 600 V maximum building wire, 1000 V maximum signs and lighting fixtures. Shell rated to 105..C.

Technical Information

Applications
For Bonding and Grounding Applications
Conductor Size
20-12 AWG Solid, 16-12 AWG (19 Strand or Less) 18 AWG (7 Strand), 18-14 AWG (19 Strand or Less) Stranded Tin-Bonded
Connection Type
Push-In
Material
Nylon/Polycarbonate
Number of Ports
2
Size
0.780 IN Length X 0.520 IN Width X 0.380 IN Height
TC Connection
2 Ports
Temperature Rating
105 degrees C
Type
Push-In
Wire Size
#12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250693511
Color
Red/Transparent
Finish
Tin Plated
GTIN
00783250693511
Product UPC
78325069351

Dimensions

Length
0.78 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Overview
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • Approved for bonding and grounding applications
  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.

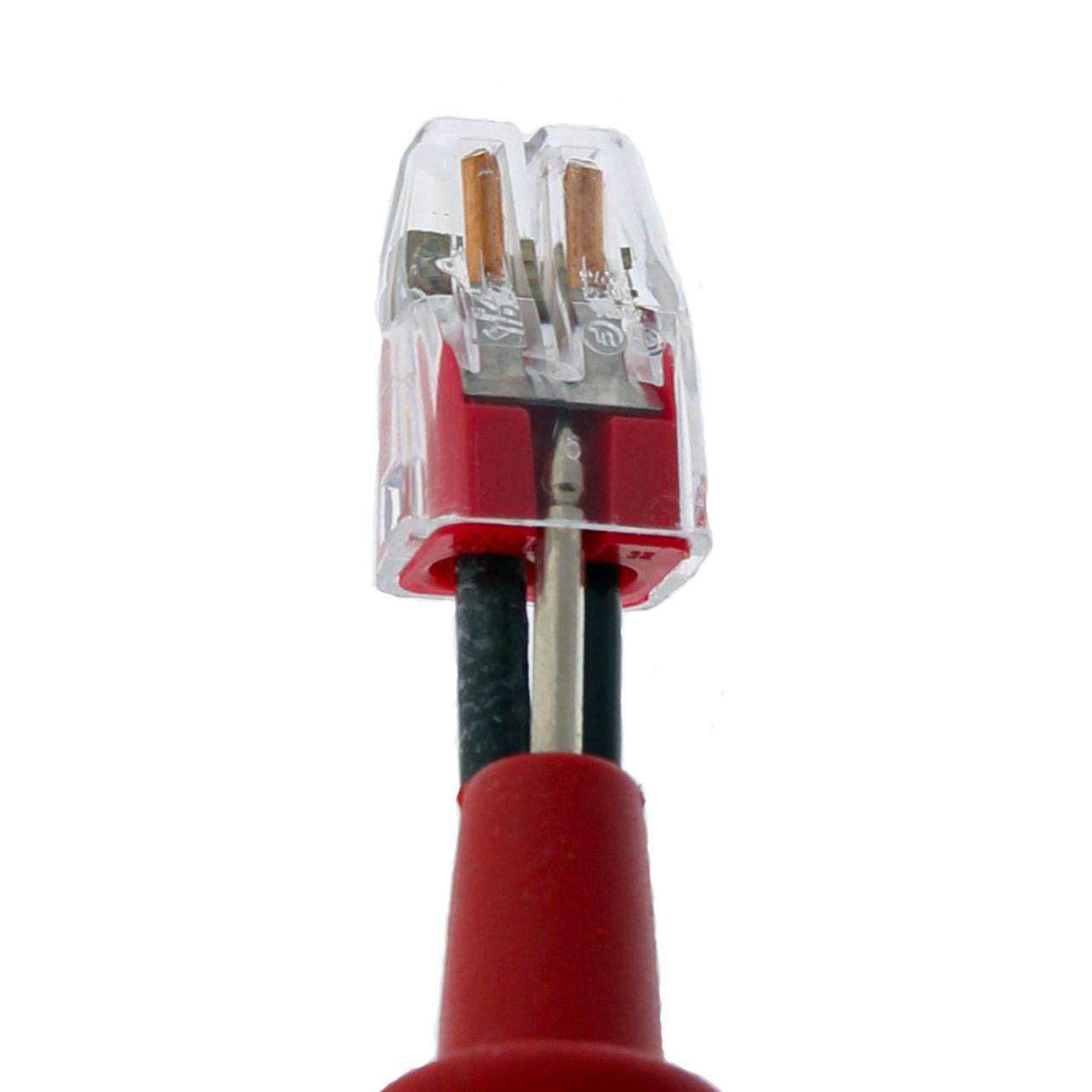

  • Clear shell gives visual verification of connection
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections

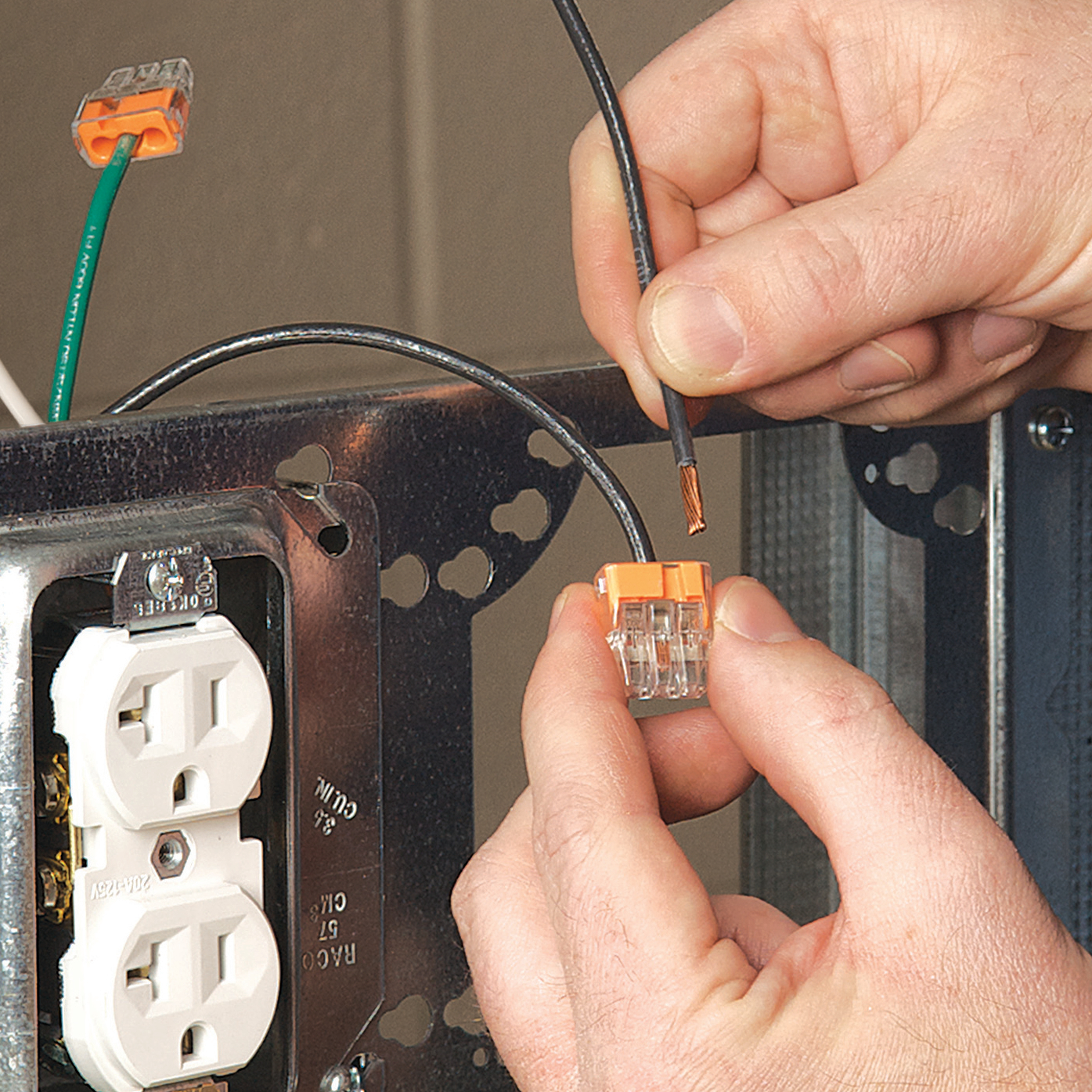

  • The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • UL Listed, CSA Certified, and rated to 600V the In-Sure saves time and improves productivity while perfecting connections.
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
